CAT. No. PS0532

0.7mm PCB Mount Socket with Slide Switch
product image thumb
product image thumb

0.7mm PCB Mount Socket with Slide Switch

$5.95
Snap-in, PCB mounted 0.7mm DC power socket with SPST black On/Off slide switch. - Electrical rating: 2A @ 15VDC - Contact resistance: Insulat...
Available

Description

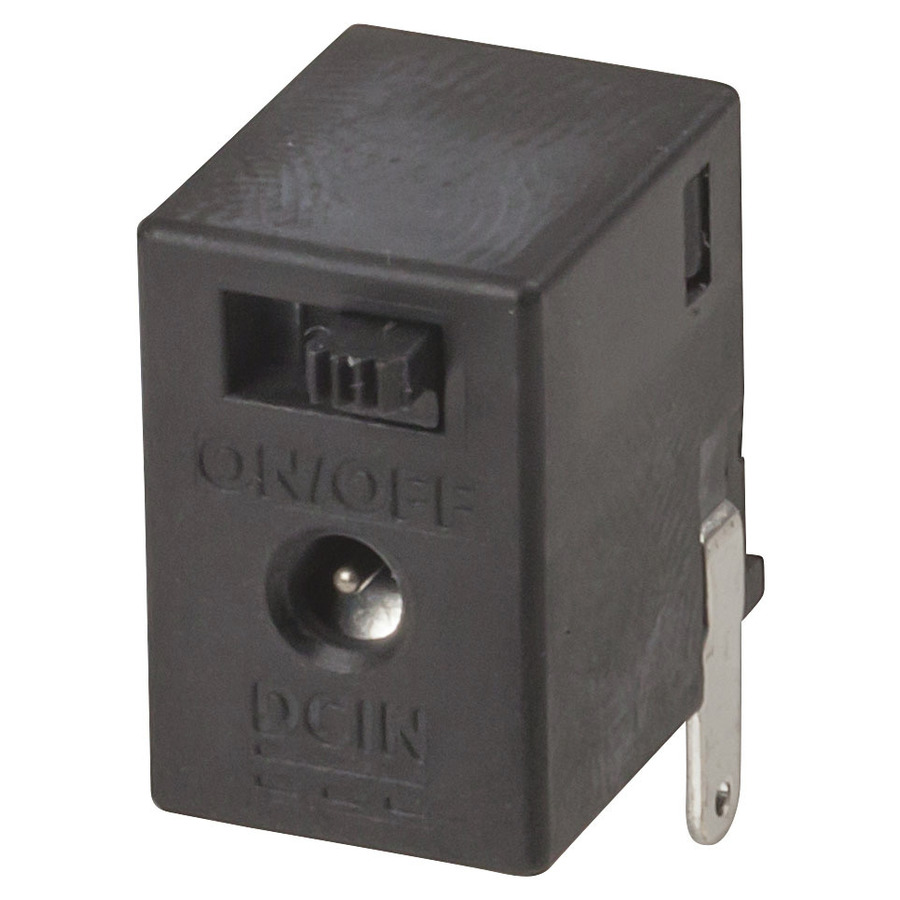

Snap-in, PCB mounted 0.7mm DC power socket with SPST black On/Off slide switch.

Features:

Contact resistance: <30m ohm (max)
Electrical life: 30,000 cycles


    Specifications

    Plug or Socket

    Contacts / Pins
    		 1pc
    Device
    		 Socket
    Pack Quantity
    		 1pc
    Cable Entry Diameter
    		 0.7mm
    Contact Material
    		 Metal
    Insulation resistance
    		 100M?
    Plug or Socket Type
    		 Barrel Plug DC Power Plug
    Switching Plug/Socket
    Attachment Method
    		 Solder Tag
    Case Material
    		 Plastic
    Colour Coded
    		 Black

    Product Mounting

    Mounting Method
    		 PCB

    Product Dimensions

    Length
    		 15mm
    Width
    		 10mm
    Depth
    		 14.6mm

    Packaged Dimensions

    Packaged Length
    		 13cm
    Packaged Width
    		 7.5cm
    Packaged Weight
    		 0.012kg
    Packaged Volume
    		 0.195l
    Packaged Height
    		 2cm
