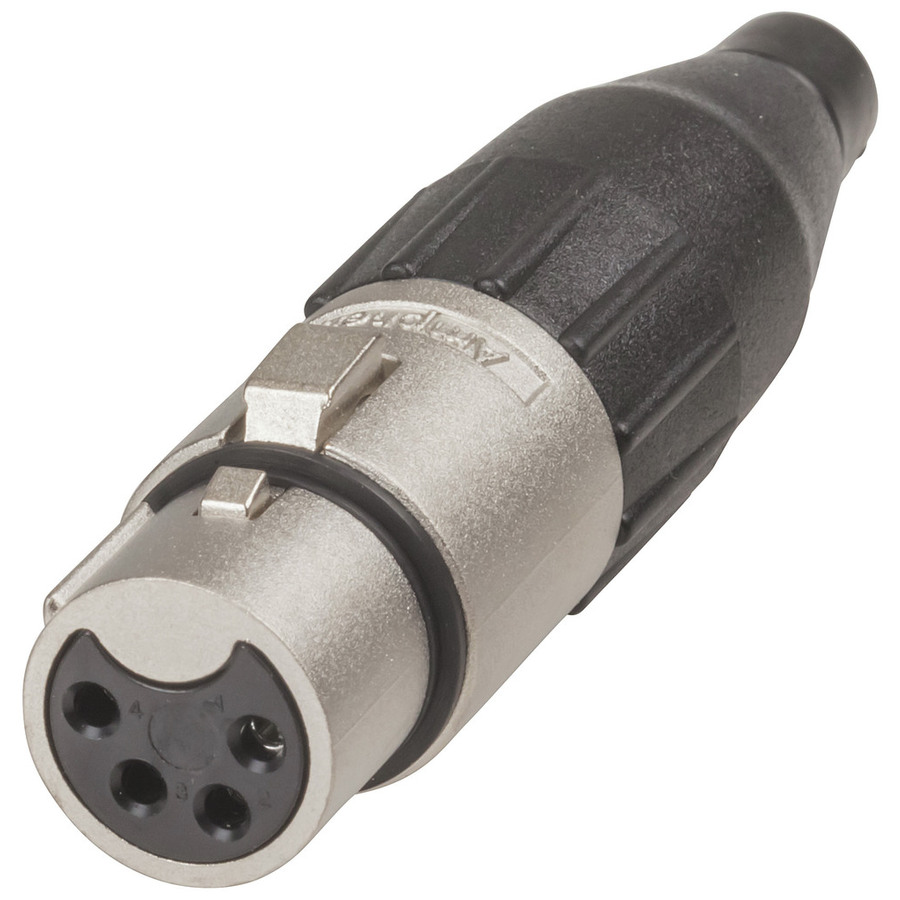

4 Pin Line Female XLR Connector
4 Pin Line Female XLR Connector

CAT. No. PS1042

4 Pin Line Female XLR Connector
product image thumb

4 Pin Line Female XLR Connector

$18.5
A Cannon style Amphenol Silver socket for your audio, data or telecommunication connector needs.
Available

Description

Cannon/Amphenol Silver

Handy Tip XLR Wiring

The Standard is defined by the Audio Engineering Society inAES14-1992(r1998)
Pin 1: Shield/Ground
Pin 2: Hot/in Phase / +
Pin 3: Cold / Out of Phase / -
To create an unbalanced connection, pin 1 & pin 3 are connected to ground & pin 2 carries the signal. Note that there is a lot of equipment (particularly in the US) that has pin 2 & pin 3designations reversed (i.e. 3 hot, 2 cold).Manufacturers are adopting the Standard on all new equipment.

    Specifications

    Plug or Socket

    Contacts / Pins
    		 4pc
    Device
    		 Socket
    Pack Quantity
    		 1pc
    Plug or Socket Type
    		 XLR
    Attachment Method
    		 Solder Tag
    Case Material
    		 Metal
    Colour Coded
    		 Black

    Product Mounting

    Mounting Method
    		 Line

    Packaged Dimensions

    Packaged Length
    		 12.8cm
    Packaged Width
    		 9.9cm
    Packaged Weight
    		 0.038kg
    Packaged Volume
    		 0.32947l
    Packaged Height
    		 2.6cm

    Product Availability

    Availability
    		 Stocked item
