Amphenol Chassis Mount D-Series XLR Socket - Female
Amphenol Chassis Mount D-Series XLR Socket - Female

CAT. No. PS1054

Amphenol Chassis Mount D-Series XLR Socket - Female
product image thumb

Amphenol Chassis Mount D-Series XLR Socket - Female

$11.95
High quality Amphenol brand 3 - pin female XLR chassis mount socket, standard for balanced microphone inputs on mixers, patch panels etc. Can be front...
Available

Description

1 Year Warranty

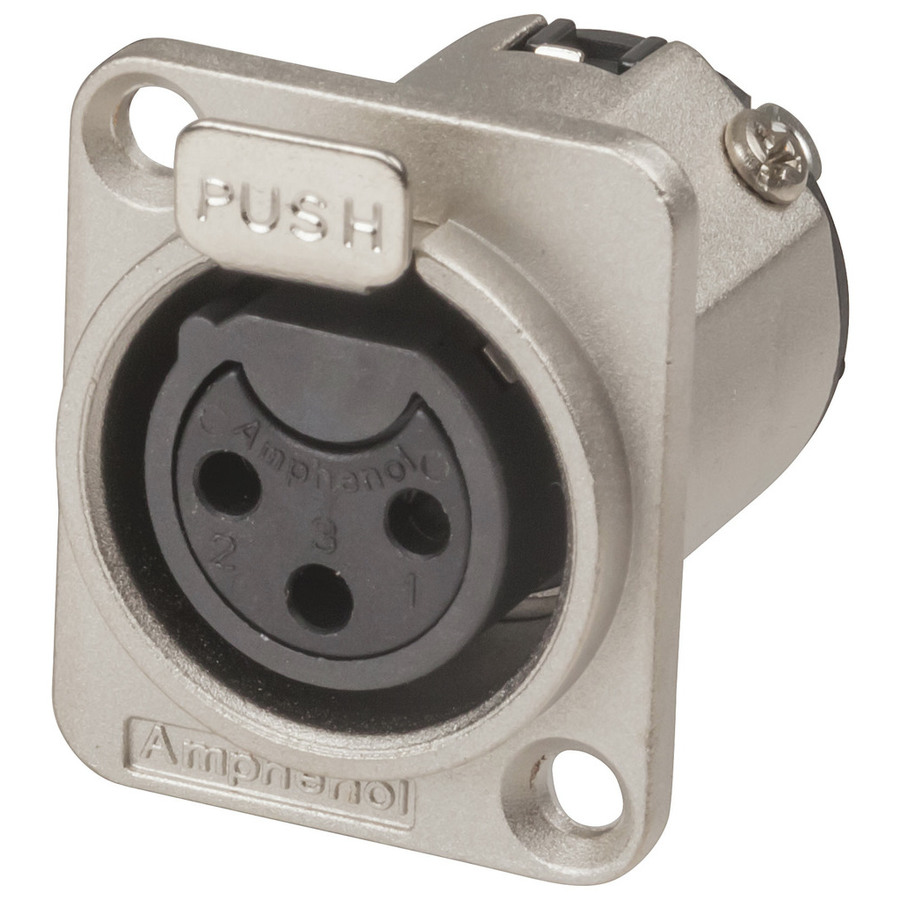

High quality Amphenol brand 3 - pin female XLR chassis mount socket, standard for balanced microphone inputs on mixers, patch panels etc. Can be front or rear mounted in P or D series panels.

Features:
• D-series flange
• Stamped phosphor bronze contacts
• Nickel finish
• Max Wire Gauge: 14AWG
• Flammability Rating: UL94-V0
• RoHS Compliant

Handy Tip XLR Wiring

The Standard is defined by the Audio Engineering Society inAES14-1992(r1998)
Pin 1: Shield/Ground
Pin 2: Hot/in Phase / +
Pin 3: Cold / Out of Phase / -
To create an unbalanced connection, pin 1 & pin 3 are connected to ground & pin 2 carries the signal. Note that there is a lot of equipment (particularly in the US) that has pin 2 & pin 3designations reversed (i.e. 3 hot, 2 cold).Manufacturers are adopting the Standard on all new equipment.

    Specifications

    Plug or Socket

    Contacts / Pins
    		 3pc
    Device
    		 Socket
    Pack Quantity
    		 1pc
    Plug or Socket Type
    		 XLR
    Attachment Method
    		 Solder Tag
    Case Material
    		 Metal

    Product Mounting

    Round Mount Hole Diameter
    		 24mm
    Mounting Method
    		 Panel

    Packaged Dimensions

    Packaged Length
    		 4cm
    Packaged Width
    		 3cm
    Packaged Weight
    		 0.032kg
    Packaged Volume
    		 0.03l
    Packaged Height
    		 2.5cm

    DC Current Rating

    DC current rating
    		 15A

    Product Availability

    Availability
    		 Stocked item
    Warranty: 12 Months
