CAT. No. PS2016

Under-Dash or Panel Mount USB Socket
product image thumb
product image thumb

Under-Dash or Panel Mount USB Socket

$16.95
This handy fitting enables you to position a USB outlet under a wooden, fibreglass or metal dashboard complete with ruber plug moisture/dust cover. Al...
Available

Description

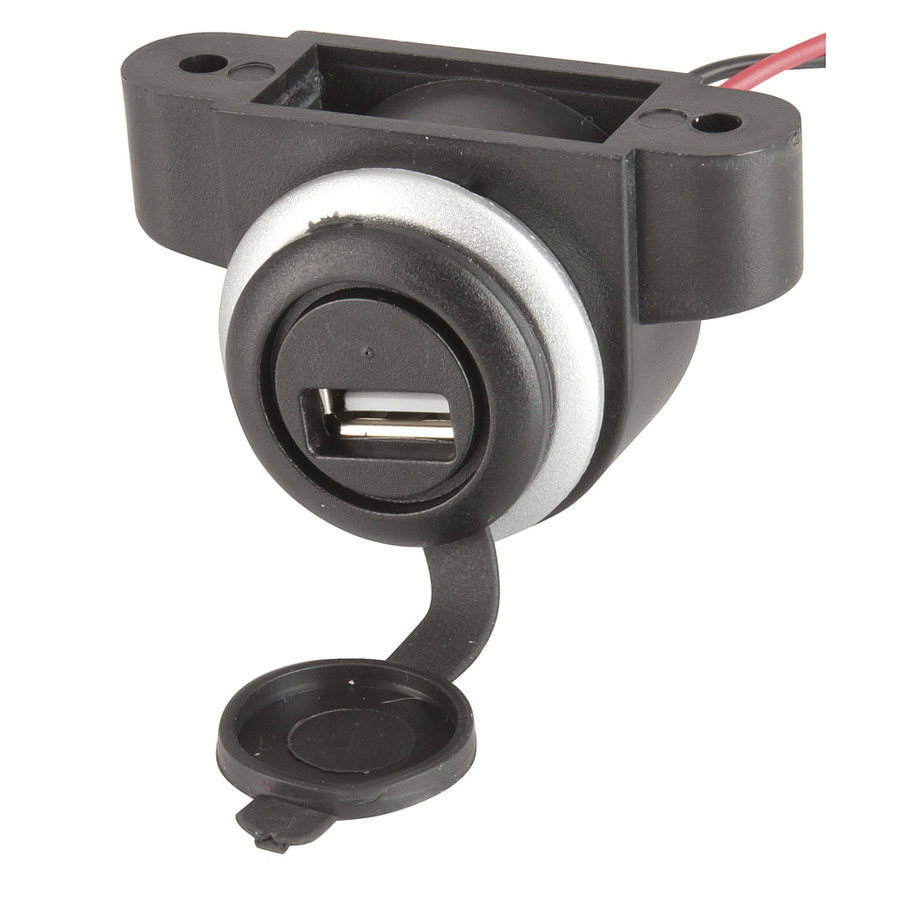

This handy fitting enables you to position a USB outlet under a wooden, fibreglass or metal dashboard complete with ruber plug moisture/dust cover. Alternatively, you can remove the actual USB insert to panel mount the USB socket. The insert requires a 22mm dia hole but it will go through upto 38mm of panel so your panel can be wood if necessary. This is a very versatile fitting and you have to see it to appreciate what it is capable of.

Features:

• In-line fuse holder included
• Sealing washers/gaskets included
• Mounting screws included
• Smart silver trim bezel included
• Fuse Rating: 3A


    Specifications

    Packaged Dimensions


    Packaged Length
    14cm
    Packaged Width
    15cm
    Packaged Weight
    0.078kg
    Packaged Volume
    0.735l
    Packaged Height
    3.5cm

    Product Mounting


    Attachment / Securing Method
    Collar / Nut
    Mount Screw Size
    22mm-38mm
    Mounting Method
    Panel

    DC Voltage Rating


    DC Voltage Output 1
    5V 2.1A
    DC Voltage
    12V, 24V

    Product Availability


    Availability
    Stocked item
