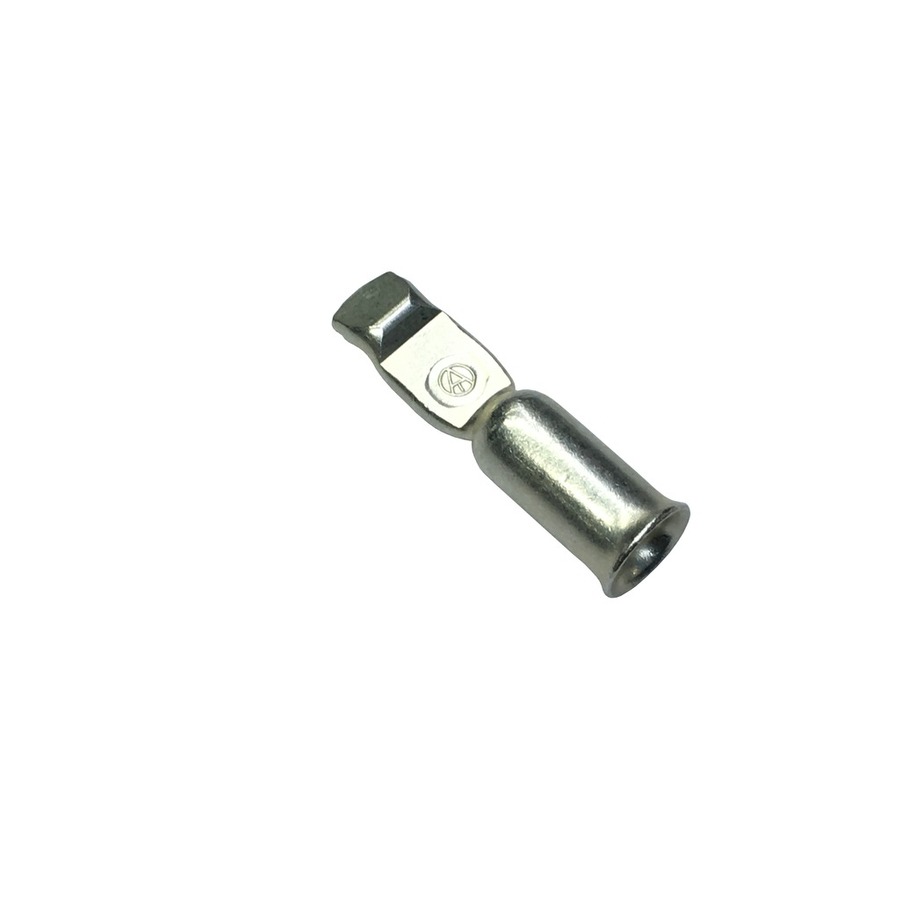

High Current Connector 6AWG Contacts - Pack of 5
High Current Connector 6AWG Contacts - Pack of 5

CAT. No. PT4418

High Current Connector 6AWG Contacts - Pack of 5
product image thumb

High Current Connector 6AWG Contacts - Pack of 5

$9.25
To suit 50 amp high current connectors.
Available

Description

A packet of 5 replacement terminals to suit 50A high current connectors. They are generally attached by filling with molten solder as crimping would require a pneumatic level of force!

    Specifications

    Plug or Socket

    Pack Quantity
    		 5pc
    Cable Entry Diameter
    		 6mm

    DC Voltage Rating

    DC Voltage
    		 32V

    DC Current Rating

    DC current rating
    		 50A

    Operating Temperature

    Operating Temperature
    		 120°C

    Product Dimensions

    Length
    		 30mm
    Diameter
    		 8mm

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 6cm
    Packaged Width
    		 6cm
    Packaged Weight
    		 0.168kg
    Packaged Volume
    		 0.018l
    Packaged Height
    		 0.5cm
