Panel Mount High Current 50A Connector and Cigarette Lighter Socket
Panel Mount High Current 50A Connector and Cigarette Lighter Socket
Panel Mount High Current 50A Connector and Cigarette Lighter Socket

CAT. No. PT4477

Panel Mount High Current 50A Connector and Cigarette Lighter Socket
product image thumb
product image thumb

Panel Mount High Current 50A Connector and Cigarette Lighter Socket

$29.95
Flush mounting bracket with a recessed High Current connector and lighter socket. - 50A Rated - Includes Mounting Hardware

Out of Stock

Description

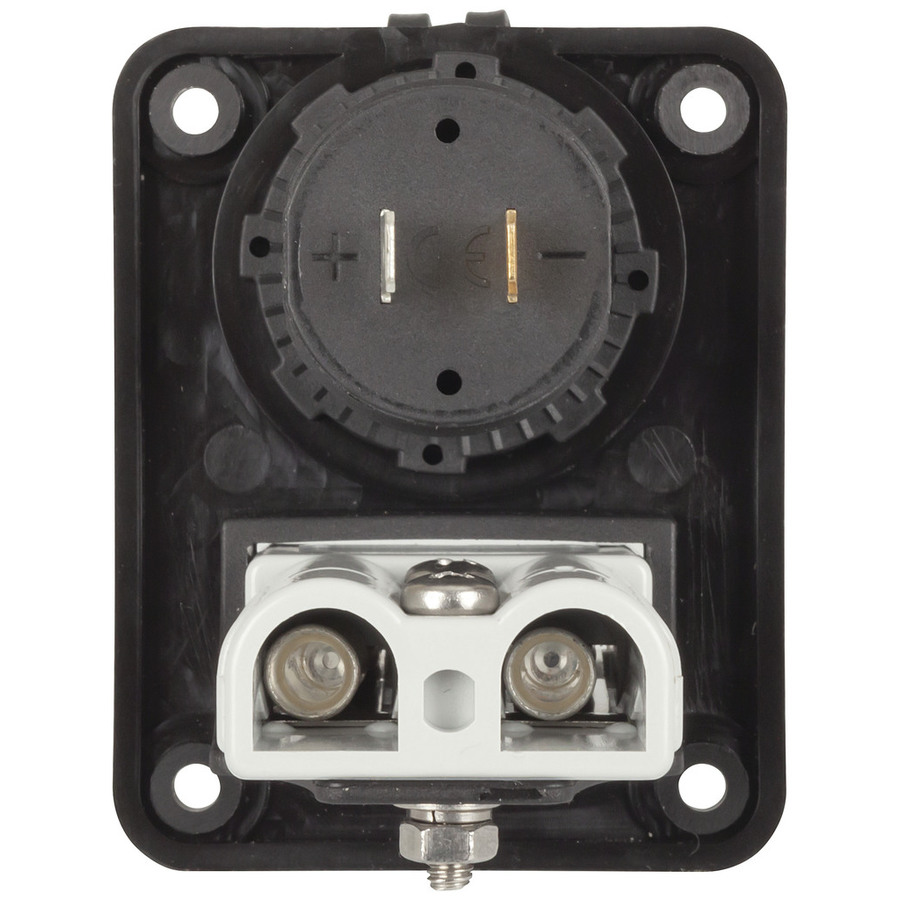

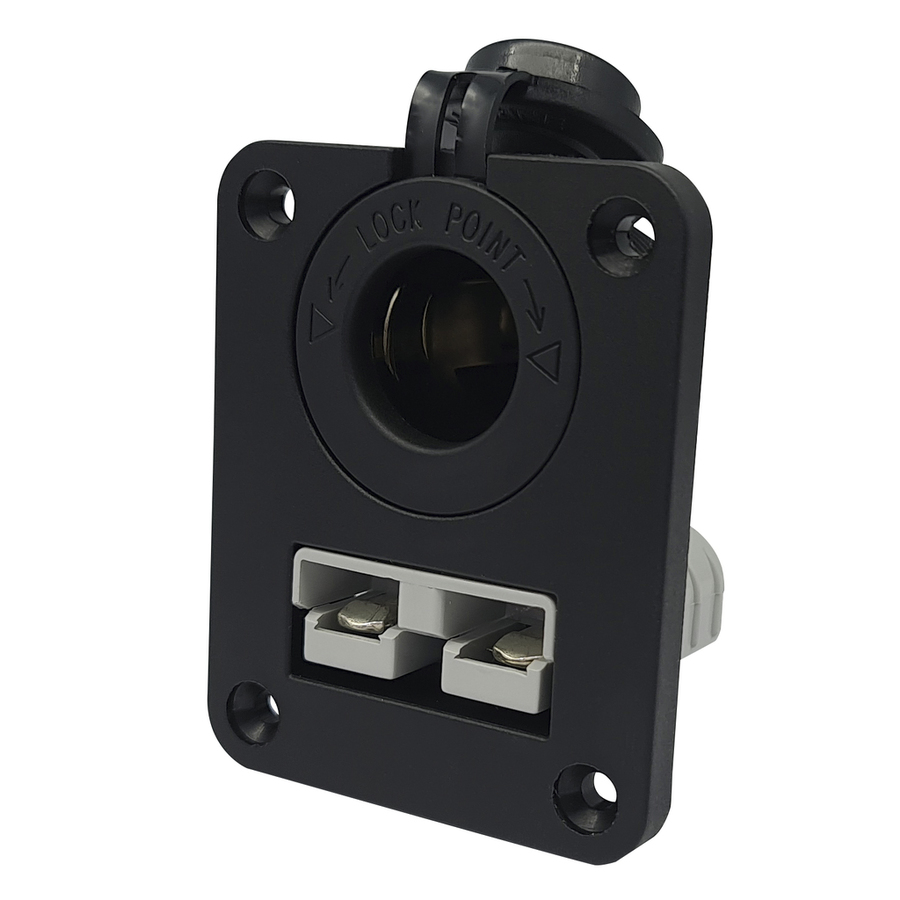

A flush mounting bracket with a recessed 50A battery connector and cigarette socket for mounting into trims and panels.

Features:
• 50A Rated Battery connector
• 10A Marine Cigarette Lighter Socket
• Includes Mounting Hardware


    Specifications

    Product Mounting

    Square Mount Hole Width
    		 40mm
    Attachment / Securing Method
    		 Screw Down
    Mount Screw Quantity
    		 4pc
    Mounting Method
    		 Panel
    Square Mount Hole Height
    		 62mm

    DC Voltage Rating

    DC Voltage
    		 12V

    DC Current Rating

    DC current rating
    		 60A

    Internal or Sub-part Dimensions

    Height
    		 70mm, 75mm
    Dimension details
    		 Cutout Dimensions, Overall Dimensions
    Width
    		 40mm, 60mm

    Product Dimensions

    Height
    		 70mm, 75mm
    Width
    		 40mm, 60mm
    Dimension details
    		 Cutout Dimensions, Overall Dimensions
    Depth
    		 48mm
    Weight
    		 80g

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 15.1cm
    Packaged Width
    		 8.1cm
    Packaged Weight
    		 0.11kg
    Packaged Volume
    		 0.99071l
    Packaged Height
    		 8.1cm
