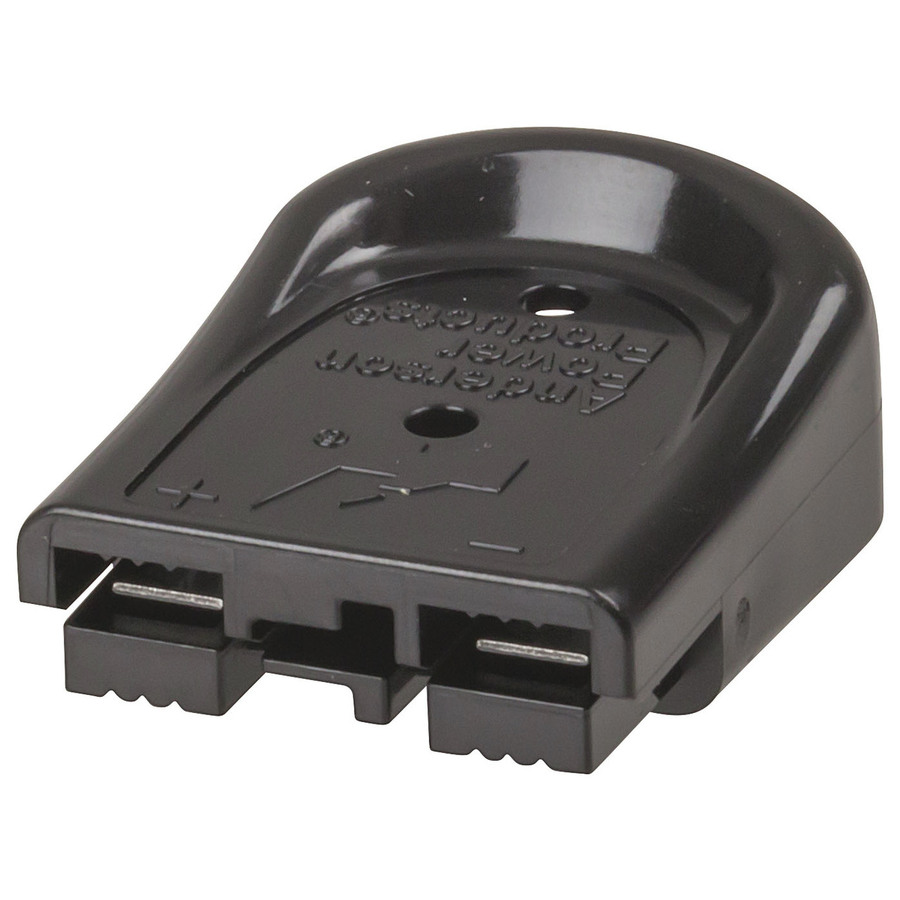

Anderson 35A SBS Mini Connector - Black
Anderson 35A SBS Mini Connector - Black

CAT. No. PT4480

Anderson 35A SBS Mini Connector - Black
product image thumb

Anderson 35A SBS Mini Connector - Black

$8.95
Compact high-current polycarbonate connectors to meet multiple needs.
Available

Description

1 Year Warranty

Compact and ergonomic, these high-current connectors protect against accidental contact with dangerous DC circuits. Inline and wire-to-wire configurations allow for one connector to meet multiple needs. The mini connector features touch-safe polycarbonate housing and two finger proof positions. Contact pins fitted in Australia to ensure the highest quality connection. Available in black, red and grey.

Features:
• Anderson’s smallest SBS connector
• Touch-safe housing
• Contact Rating: 10AWG 35A
• Contact Wire Size: 0.75 to 4.0mm²
• Max Wire Outer Diameter: 4.65mm
• Contact Retention Force: 9kg (20lbs) minimum


    Specifications

    Product Dimensions

    Length
    		 30mm
    Height
    		 10mm
    Width
    		 23mm

    Packaged Dimensions

    Packaged Length
    		 3cm
    Packaged Width
    		 1.2cm
    Packaged Weight
    		 0.006kg
    Packaged Volume
    		 0.00792l
    Packaged Height
    		 2.2cm

    Plug or Socket

    Contacts / Pins
    		 2pc
    Device
    		 Plug
    Pack Quantity
    		 1pc
    Cable Entry Diameter
    		 4.65mm
    Contact Material
    		 Plated Metal
    Plug or Socket Type
    		 Anderson 35A 2 Pole
    Attachment Method
    		 Crimp
    Case Material
    		 ABS Plastic (Acrylonitrile Butadiene Styrene)
    Colour Coded
    		 Black
    Locking Function
    		 Locking Screw

    Product Mounting

    Attachment / Securing Method
    		 Integrated Clips
    Mounting Method
    		 Line

    AC Voltage Rating

    AC Voltage rating
    		 600V

    DC Voltage Rating

    DC Voltage
    		 600V

    DC Current Rating

    DC current rating
    		 35A

    Operating Temperature

    Operating Temperature
    		 -20°C-105°C

    Product Availability

    Availability
    		 Stocked item
    Warranty: 12 Months

    Downloads

    PT4480-manualMain.pdf
