CAT. No. PT4825

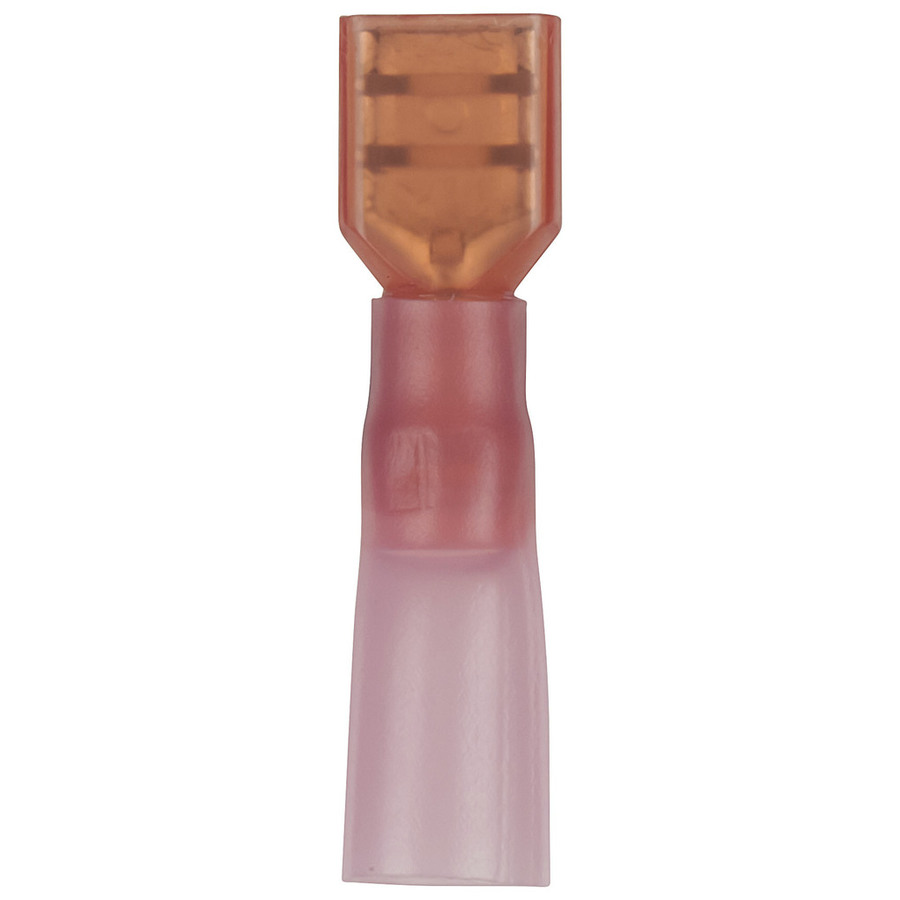

Fully Insulated Female Spade - Red - Pkt 8 - Self Sealing Quick Connectors
product image thumb

Fully Insulated Female Spade - Red - Pkt 8 - Self Sealing Quick Connectors

$10.95
6.4mm fully insulated female spade crimp lugs with integrated heat shrink seal sleeve. Pack of 8.
Available

Description

Self Sealing Quick Connectors
The unique heat sensitive sealing gel in these quick connectors will automatically flood the crimp joint with sealant as the heatshrink sleeve is heated. The resulting crimp connection is water and corrosion resistant and has good strain relief properties. 11 styles to choose from.

    Specifications

    Quick Connect (QC) Lugs


    Insulation
    Heatshrink Sleeve
    Terminal Size
    6.4mm
    Device
    Socket
    Pack Quantity
    8pc
    Cable Entry Diameter
    4.3mm
    Type of quick connector
    Spade
    Colour Coded
    Red
    Wire Diameter
    0.75mm

    Product Dimensions


    Width
    6.4mm

    Packaged Dimensions


    Packaged Length
    12cm
    Packaged Width
    6.5cm
    Packaged Weight
    0.02kg
    Packaged Volume
    0.117l
    Packaged Height
    1.5cm

    Product Availability


    Availability
    Stocked item
