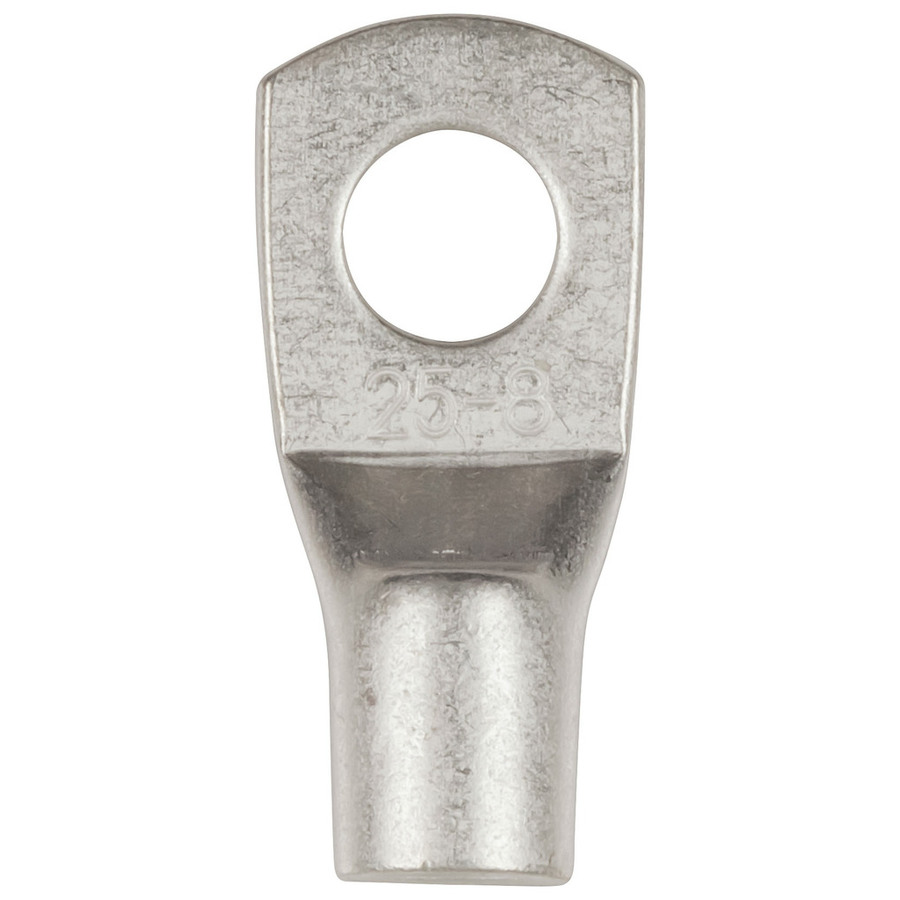

8mm Non-Insulated Eye Terminal 25mm2 - Pk 4
8mm Non-Insulated Eye Terminal 25mm2 - Pk 4

CAT. No. PT4937

8mm Non-Insulated Eye Terminal 25mm2 - Pk 4
product image thumb

8mm Non-Insulated Eye Terminal 25mm2 - Pk 4

$7.95
Non-insulated eye terminals for a variety of battery, solar or automotive applications. Hex crimp fitting for connection to cable.
Available

Description

Non-insulated eye terminals for a variety of electronic or automotive applications. Hex crimp fitting for connection to cable. Current rating: 50A


    Specifications

    Quick Connect (QC) Lugs

    Insulation
    		 Non Insulated
    Terminal Size
    		 8mm
    Wire Size (Cross Section)
    		 25mm²
    Device
    		 Terminal
    Internal Terminal Size (Eye / Fork)
    		 8mm
    Pack Quantity
    		 4pc
    Cable Entry Diameter
    		 25mm
    Contact Material
    		 Tin Plated Copper
    Type of quick connector
    		 Eye
    Wire Gauge
    		 4AWG

    Product Dimensions

    Length
    		 34mm
    Height
    		 9.5mm
    Width
    		 15.5mm

    Packaged Dimensions

    Packaged Length
    		 12cm
    Packaged Width
    		 6.5cm
    Packaged Weight
    		 0.032kg
    Packaged Volume
    		 0.117l
    Packaged Height
    		 1.5cm

    Product Availability

    Availability
    		 Stocked item
