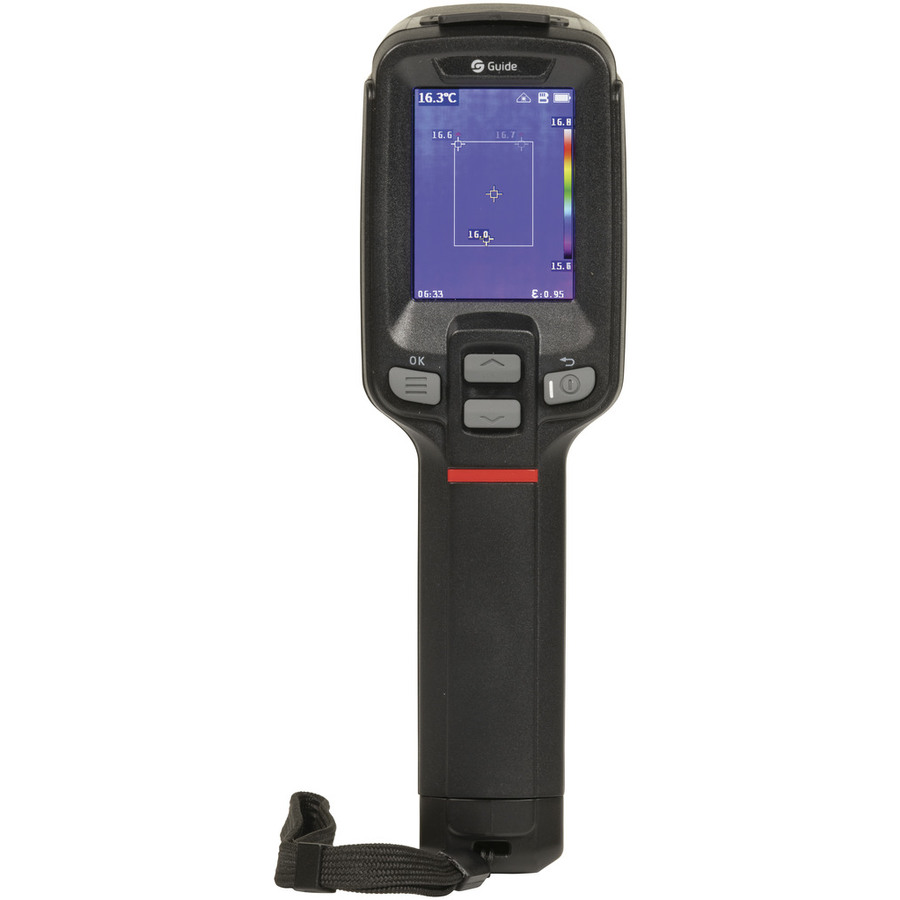

This non-contact thermal imaging camera helps you instantly pinpoint overheating components on a circuit board, identify any areas of wasted heat energy, or spot any thermal insulation gaps in equipment or a building. To operate, simply point the camera to the region you want to test and see the warm components or areas show up as yellow, orange or red, and cool areas as blue and green on the 2.4inch display. Press the trigger to save a snapshot to the memory card, and simply connect it to a PC via the USB cable to download the images. Measures temperatures between -20°C to 400°C. Features include 120x90 WLP IR sensor, 130:1 distance-to-spot ratio, IP54 rating, and built-in rechargeable battery. A 1m USB Type-A to Type-C charging cable and 32GB MicroSD Memory Card are included.

FEATURES
• 120x90 IR resolution
• Large 2.4inch (240x320px) Display
• Up to 5 hours run time per charge
• Fast charge via type C
• IP54 Rated

Specs:
• Detector type: VOx
• Infrared resolution: 120 - 90 @17μm
• Wavelength range: 7.5 to 14μm
• Focal length: 2.28mm
• Field of view: 50° - 38°
• Minimum object distance: 0.5m
• D:S: 130:1
• NETD: ≤60 mK
• Infrared frame rate: 25Hz / 9Hz
• Focusing mode: Focus-free
• Measurement range: Support auto-switching: -20°C to 150°C, 100°C to 400°C
• Measurement accuracy: +-2°C
