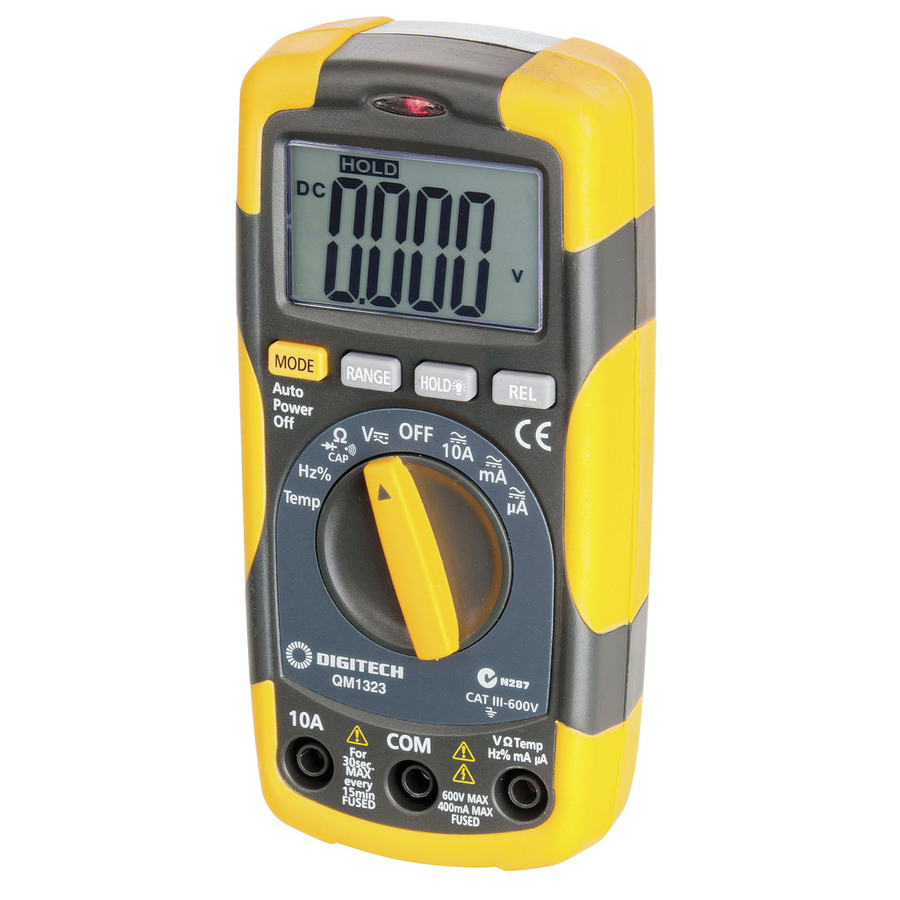

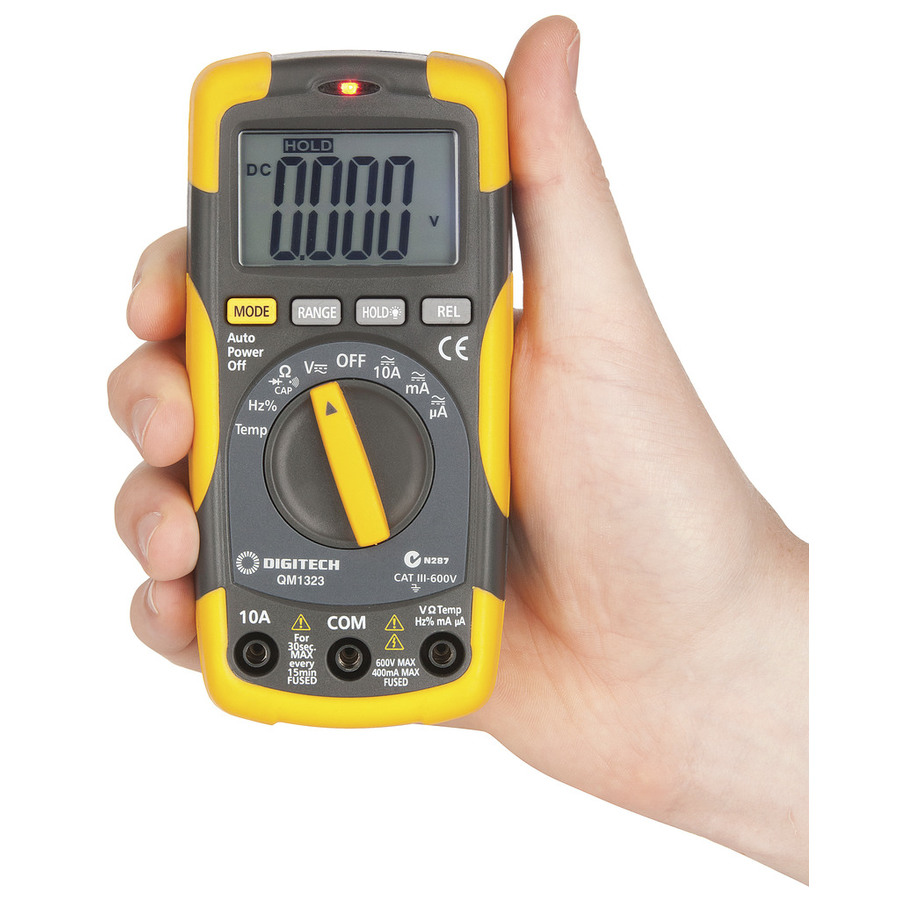

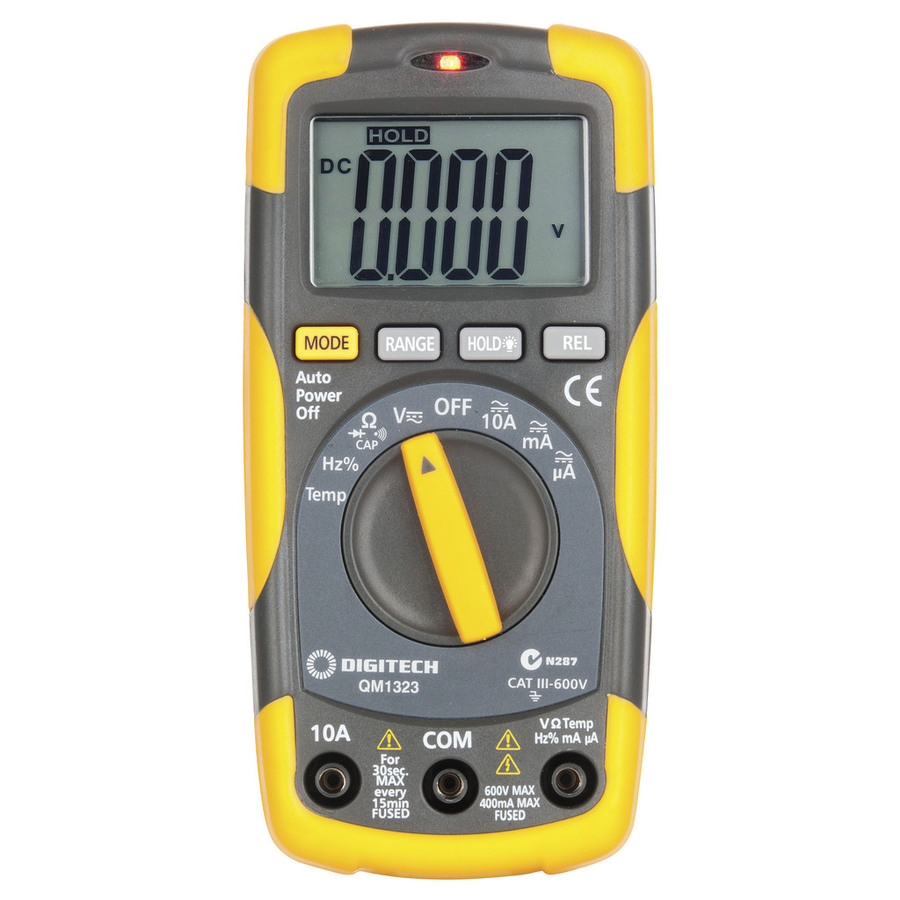

CAT. No. QM1323

Cat III Multimeter with Temperature
product image thumb
product image thumb
product image thumb
product image thumb

Cat III Multimeter with Temperature

$64.95
Data hold - Relative measurement - Woven nylon pouch with room for the meter and leads included a budget-priced meter with everything you need
Available

Description

Batteries Included

A budget-priced meter with everything you need - capacitance, temperature and 10A on AC and DC, compact and light weight with rugged a moulded case.


Features:
• Category: Cat III 600V
• Display: 4000 count
• Basic DVC accuracy: 0.5%
• Ave/RMS: Ave
• Data hold
• Relative measurement

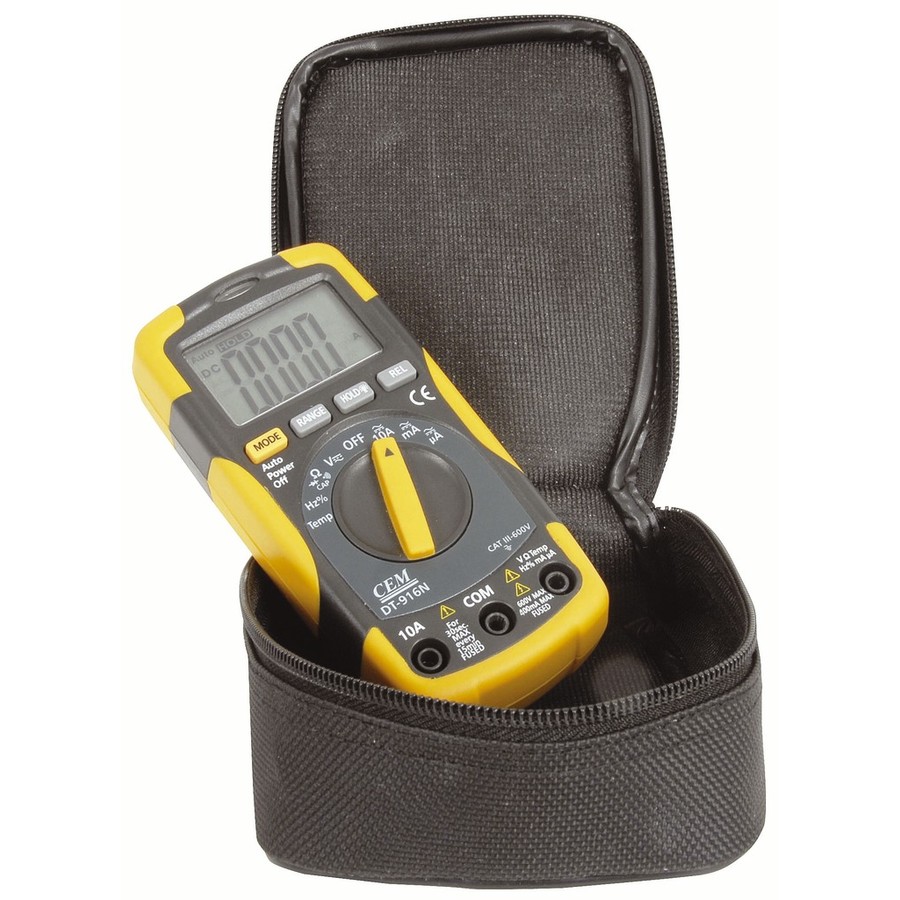

• Woven nylon pouch with room for the meter and leads included
• Leads included
• K-type probe included
• Case included

For More info on Digital Multimeters.

    Specifications

    Measures Voltage AC

    AC Voltage Ranges
    		 400mV, 4V, 40V, 400V, 600V
    AC Voltage Accuracy
    		 1.20000000%

    Measures Voltage DC

    DC Voltage Accuracy
    		 0.50000000%
    DC Voltage Ranges
    		 400mV, 4V, 40V, 400V, 600V

    Measures Current AC

    AC Current Accuracy
    		 3%
    AC Current Ranges
    		 4mA, 40mA, 400mA, 10A

    Measures Current DC

    DC Current Accuracy
    		 2.50000000%
    DC Current Ranges
    		 4mA, 40mA, 400mA, 10A

    Measures Temperature

    Measures in Kelvin
    Measures in Celcius
    Outdoor / Exterior Scale
    		 -20°C-760°C
    Celcius Accuracy
    		 3%
    Measures in Fahrenheit

    Sensor Temperature Probe

    Sensor Type
    		 K-Type Thermocouple
    Lead Length
    		 900mm, 870mm
    Probe Material
    		 Woven Teflon
    Connection to Meter
    		 Mini-Marlin Plug with Banana Plug Adaptor

    Measures Frequency

    Frequency Ranges
    		 4kHz, 40kHz, 400kHz, 10MHz
    Frequency Accuracy
    		 1.50000000

    Measures Resistance

    Resistance Ranges
    		 400?, 4k?, 40k?, 400k?, 40?
    Resistance Accuracy
    		 1.20000000%

    Measures Capacitance

    Capacitance Accuracy
    		 3%
    Capacitance Ranges
    		 4nF, 40nF, 4µF, 40µF, 100µF

    Meter Safety Rating

    Safety Rating Max Volt
    		 600V
    Safety Rating Cat
    		 Cat III

    Meter Probes

    Overall probe length
    		 142mm
    Tip diameter
    		 2mm
    Probe rating voltage
    		 600V
    Probe safety rating
    		 Cat III
    Lead Length
    		 900mm, 870mm
    Connection to meter
    		 Shrouded 4mm Banana Plug
    Tip length
    		 2mm
    Probe Type
    		 Basic Meter Probes

    Onboard Sensor

    Inductive Pickup
    Onboard socket

    Digital Multi-Meter

    Autorange
    Count Maximum Reading
    		 4000 count
    Measures duty cycle

    Meter Data Control

    Data Hold
    Relative Measure

    Meter

    Input Protection Fuse
    		 10mA
    Led Indicator Display
    Inline Sensor
    Measures diode
    Meter Input Impedence
    		 10M?

    Power from disposable battery

    Batteries can be replaced by user
    Battery quantity
    		 1pc
    Batteries included
    How is battery compartment kept closed
    		 Clip and Screw
    Size / Shape
    		 9V
    Compartment location
    		 Internal / In-built

    Product Dimensions

    Height
    		 138mm
    Width
    		 68mm
    Depth
    		 37mm

    Packaged Dimensions

    Packaged Length
    		 20.5cm
    Packaged Width
    		 12.3cm
    Packaged Weight
    		 0.436kg
    Packaged Volume
    		 1.76505l
    Packaged Height
    		 7cm

    Meter Display

    Display Backlight
    Display Type
    		 LCD
    Display Width
    		 25mm
    Display Height
    		 55mm

    Product Availability

    Availability
    		 Stocked item
    Warranty: 9999 Months
    Special terms or exclusions: Lifetime Warranty
