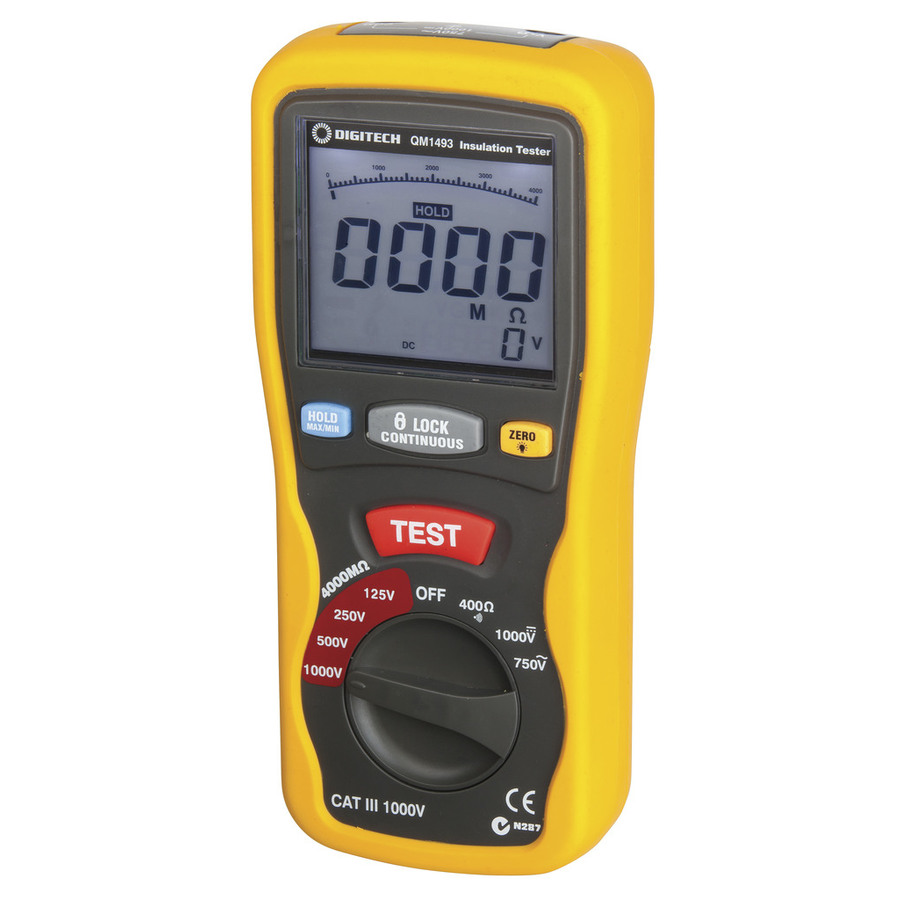

Cat III Insulation TesterMultimeter

$329
- Analogue/digital display - Data hold - Max/min - Moulded case - Backlit LCD - Auto power-offSpecificationsCategory: Ca...
Available

Description

Batteries Included

Specifications

• Category: Cat IV 600V / Cat III 1000V
• Display: 4000 count
• Basic accuracy: 1%
• Insulation test: 4Gohms @ 125 - 1000V
• Ave/RMS: Ave
• Analogue/digital display
• Data hold
• Max/min
• Moulded case
• Backlit LCD
• Auto power-off

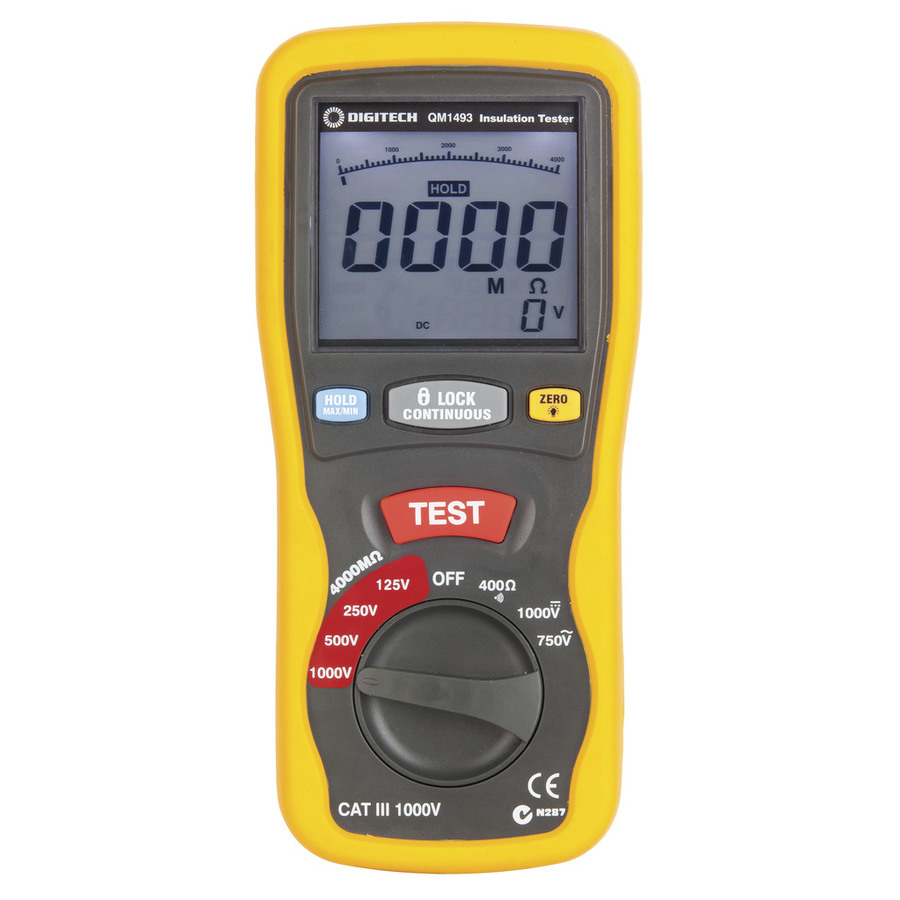

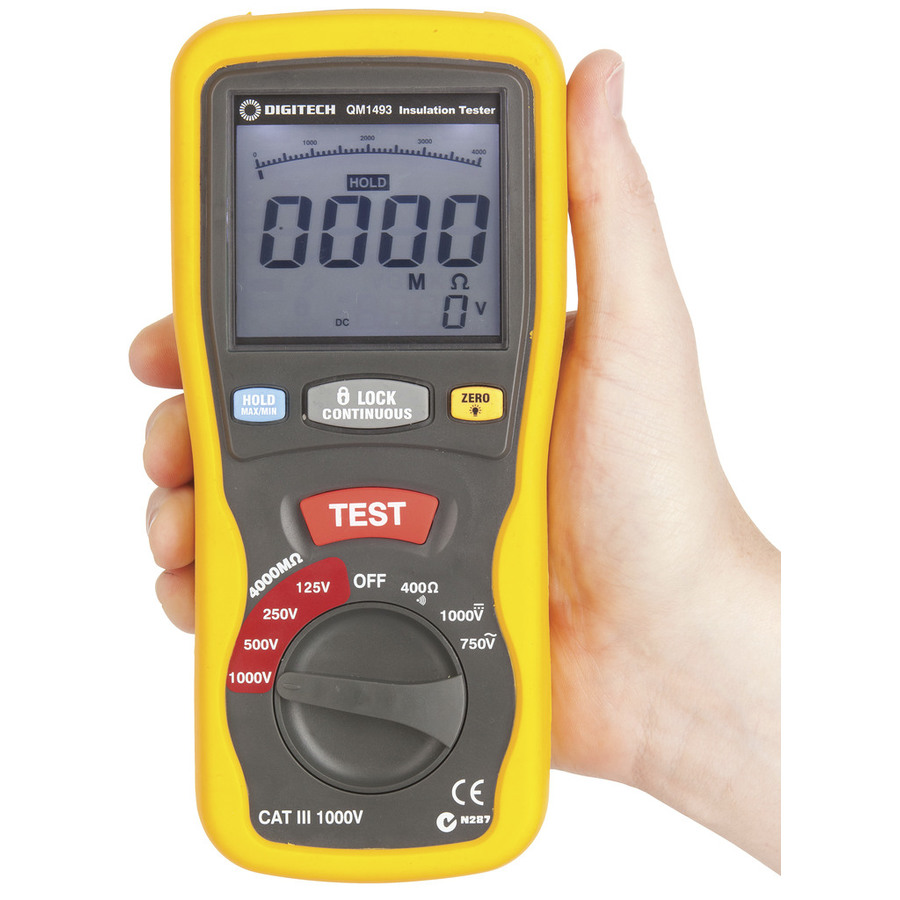

Commonly known as a megger and suitable for high voltage insulation testing up to 4 gigaohms at up to 1000V. It also has AC/DC voltage and low resistance multimeter functions. Moulded storage case and holster included.

For More info on Digital Multimeters.

    Specifications

    Meter Safety Rating

    Safety Rating Max Volt
    		 1000V
    Safety Rating Cat
    		 Cat III

    Measures Voltage DC

    DC Voltage Accuracy
    		 ±(0.8%+3)
    DC Voltage Ranges
    		 1000V

    Measures Voltage AC

    AC Voltage Ranges
    		 750V
    AC Voltage Accuracy
    		 ±(1.2%+10)

    Measures Resistance

    Resistance Ranges
    		 40?, 400?
    Resistance Accuracy
    		 ±(1.2%+3)

    Digital Multi-Meter

    Autorange
    Count Maximum Reading
    		 4000 count

    Meter Data Control

    Records Minimum
    Data Hold
    Records Maximum

    Meter Probes

    Probe rating voltage
    		 1000V
    Probe safety rating
    		 Cat III

    Meter

    Input Protection Fuse
    		 15mA
    Carry Case Included
    Meter Input Impedence
    		 0?

    Power from disposable battery

    Batteries can be replaced by user
    Battery quantity
    		 6pc
    Batteries included
    Size / Shape
    		 AA
    Compartment location
    		 Back

    Product Dimensions

    Length
    		 200mm
    Width
    		 92mm
    Depth
    		 50mm

    Packaged Dimensions

    Packaged Length
    		 30.9cm
    Packaged Width
    		 23.9cm
    Packaged Weight
    		 1.466kg
    Packaged Volume
    		 5.760378l
    Packaged Height
    		 7.8cm

    Meter Display

    Display Backlight
    		 LED Backlit
    Digits Displayed
    		 4 digit
    Display Type
    		 LCD
    Bargraph

    Measures Insulation Resistance

    Accuracy
    		 ±(2%+10) to ±(5%+5) depending on scale. Refer to manual for full details.%
    Test Voltage
    		 125V, 250V, 500V, 1000V
    Test Current
    		 1mA
    Insulation Resistance Ranges
    		 4M?, 40M?, 400M?

    Product Availability

    Availability
    		 Stocked item
    Warranty: 9999 Months
    Special terms or exclusions: Lifetime Warranty
