CAT. No. QM1528

Jaycar Promo Autorange Digital Multimeter
product image thumb

Jaycar Promo Autorange Digital Multimeter

$37.95

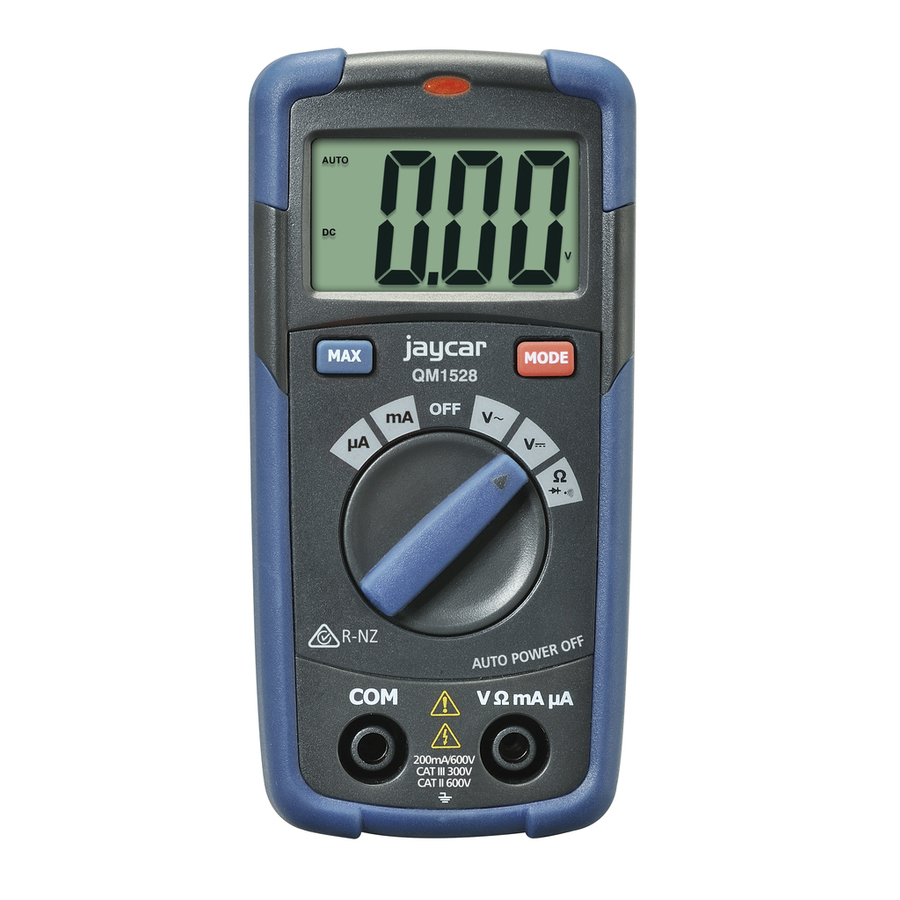

This compact pocket size 2000 count DMM features both traditional test lead measurements and non-contactless voltage sensing (NCV)

Out of Stock

Description

This compact pocket size 2000 count DMM features both traditional test lead measurements and non-contactless voltage sensing (NCV), eliminating the need to carry a second tester around. It is able to measure Current, AC and DC Voltage and Continuity/Diode Testing. The Continuity/Diode testing features and audible tone. The multimeter also features a Max Hold function.

Compact, light, rated to Cat III and with a large display for its size, this is a go anywhere meter for the person on the go.


    Specifications

    Product Dimensions

    Length
    		 53mm
    Height
    		 108mm
    Width
    		 24mm

    Packaged Dimensions

    Packaged Length
    		 17.4cm
    Packaged Width
    		 11.5cm
    Packaged Weight
    		 0.2kg
    Packaged Volume
    		 0.76038l
    Packaged Height
    		 3.8cm

    Meter Display

    Digits Displayed
    		 3.5 digit
    Display Type
    		 LCD

    Meter Safety Rating

    Safety Rating Max Volt
    		 600V
    Safety Rating Cat
    		 Cat II

    Measures Voltage DC

    DC Volts Measurement Range
    		 0V-600V
    Minimum Voltage Measured
    		 0.1mV, 1mV
    DC Voltage Accuracy
    		 0.50000000%, 1.20000000%, 1.50000000%
    DC Voltage Ranges
    		 200mV, 2V, 20V, 200V, 600V

    Measures Current DC

    Current DC Min
    		 0.1µA
    DC Current Accuracy
    		 1%, 1.50000000%
    Current DC Measuring Range
    		 0mA-200mA
    DC Current Ranges
    		 200µA, 2mA, 20mA, 200mA

    Measures Voltage AC

    AC Voltage Ranges
    		 2V, 20V, 200V, 600V
    Minimum Voltage Measured
    		 0.1mV, 1mV
    AC Volts Measurement Range
    		 0V-600V
    AC Voltage Accuracy
    		 1.20000000%, 1.50000000%, 2%

    Measures Current AC

    Current AC Measuring Range
    		 0µA-200mA
    AC Current Accuracy
    		 1.50000000%, 1.80000000%
    Current AC Min
    		 0.1µA
    AC Current Ranges
    		 200µA, 2mA, 20mA, 200mA

    Measures Continuity

    Continuity buzzer
    Continuity indicator
    		 On Panel

    Measures Resistance

    Resistance Ranges
    		 200?, 2k?, 20k?, 200k?, 2M?, 20M?
    Resistance Accuracy
    		 1.50000000%, 1.20000000%, 2%

    Meter

    Non-contact Voltage Indicator
    Measures diode

    Power from disposable battery

    Type
    		 Alkaline
    Batteries can be replaced by user
    Battery quantity
    		 1pc
    Batteries included
    Size / Shape
    		 23A

    Product Availability

    Availability
    		 Stocked item
    Warranty: 12 Months

    Downloads

    QM1528-manualMain.pdf
