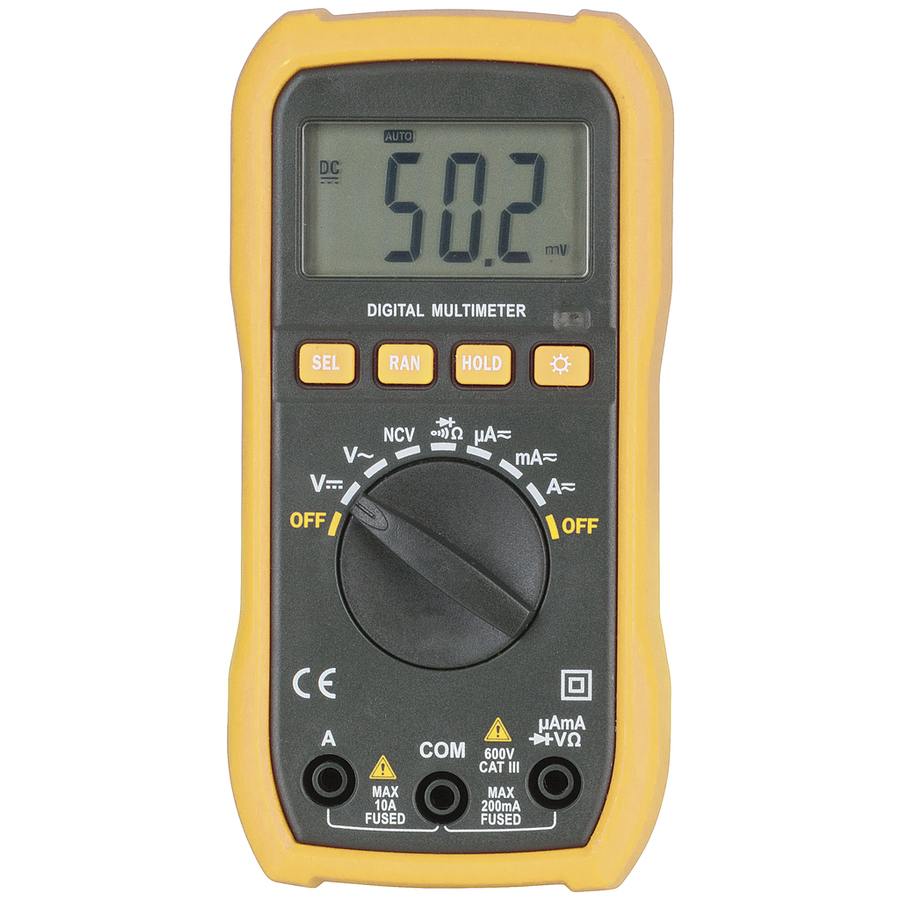

Economy Autorange Multimeter with Non-Contact Voltage Sensor

$41.5
This practical multimeter measures both DC and AC voltages and automatically selects the best range for your measurements.
Available

Description

Batteries Included

Hobbyist multimeters provide exceptional value for money, and good features for a range of applications.

This practical multimeter measures both DC and AC voltages and currents. The default autoranging setting automatically selects the best range for your measurements. If a different range is preferred, simply switch it to manual. A built-in buzzer and LED warning light alert you to low resistance, detected voltage and live wires. In low light conditions you can activate the 10 second backlight to view measurements. Use the data hold button to lock them on screen for data capture and analysis.

For More info on Digital Multimeters.

    Specifications

    Digital Multi-Meter

    Optical Sensor
    Measures dwell
    Autorange
    Count Maximum Reading
    		 2000 count
    True RMS
    Measures duty cycle

    Meter Safety Rating

    Safety Rating Max Volt
    		 600V
    Safety Rating Cat
    		 Cat III

    Meter Data Control

    Data Hold

    Measures Voltage DC

    DC Voltage Accuracy
    		 ±0.8%
    DC Voltage Ranges
    		 200mV, 2V, 20V, 600V

    Measures Current DC

    DC Current Accuracy
    		 ±3%
    DC Current Ranges
    		 200µA, 2mA, 20mA, 200mA, 10A

    Measures Voltage AC

    AC Voltage Ranges
    		 200µV, 2mV, 20mV, 200V, 600V
    AC Voltage Accuracy
    		 ±1%

    Measures Current AC

    AC Current Accuracy
    		 ±3%
    AC Current Ranges
    		 200µA, 2mA, 20mA, 200mA, 10A

    Measures Continuity

    Continuity buzzer
    Continuity indicator
    		 On Panel

    Measures Resistance

    Resistance Ranges
    		 200?, 2k?, 20k?, 200k?, 2M?
    Resistance Accuracy
    		 ±1.5%

    Meter Probes

    Probe rating voltage
    		 600V
    Probe safety rating
    		 Cat II
    Connection to meter
    		 Shrouded 4mm Banana Plug
    Probe Type
    		 High Grade Meter Probes

    Meter

    Input Protection Fuse
    		 500mA, 10A
    Foldout Stand
    Led Indicator Display
    Carry Case Included
    Casing
    		 Plastic
    Measures transistor
    Measures diode
    Meter Input Impedence
    		 10M?

    Product Dimensions

    Length
    		 144mm
    Height
    		 32mm
    Width
    		 70mm
    Weight
    		 200g

    Packaged Dimensions

    Packaged Length
    		 25.5cm
    Packaged Width
    		 14.9cm
    Packaged Weight
    		 0.328kg
    Packaged Volume
    		 2.05173l
    Packaged Height
    		 5.4cm

    Power from disposable battery

    Battery used for
    		 Main Product
    Batteries can be replaced by user
    Battery quantity
    		 2pc
    Batteries included
    How is battery compartment kept closed
    		 Screw
    Size / Shape
    		 AAA, AAA
    Compartment location
    		 Back

    Power from disposable battery - Additional

    Size / Shape
    		 AAA, AAA
    Batteries can be replaced

    Meter Display

    Display Backlight
    		 LED Backlit
    Display Type
    		 LCD

    Product Availability

    Availability
    		 Stocked item
    Warranty: 9999 Months
    Special terms or exclusions: Lifetime Warranty
