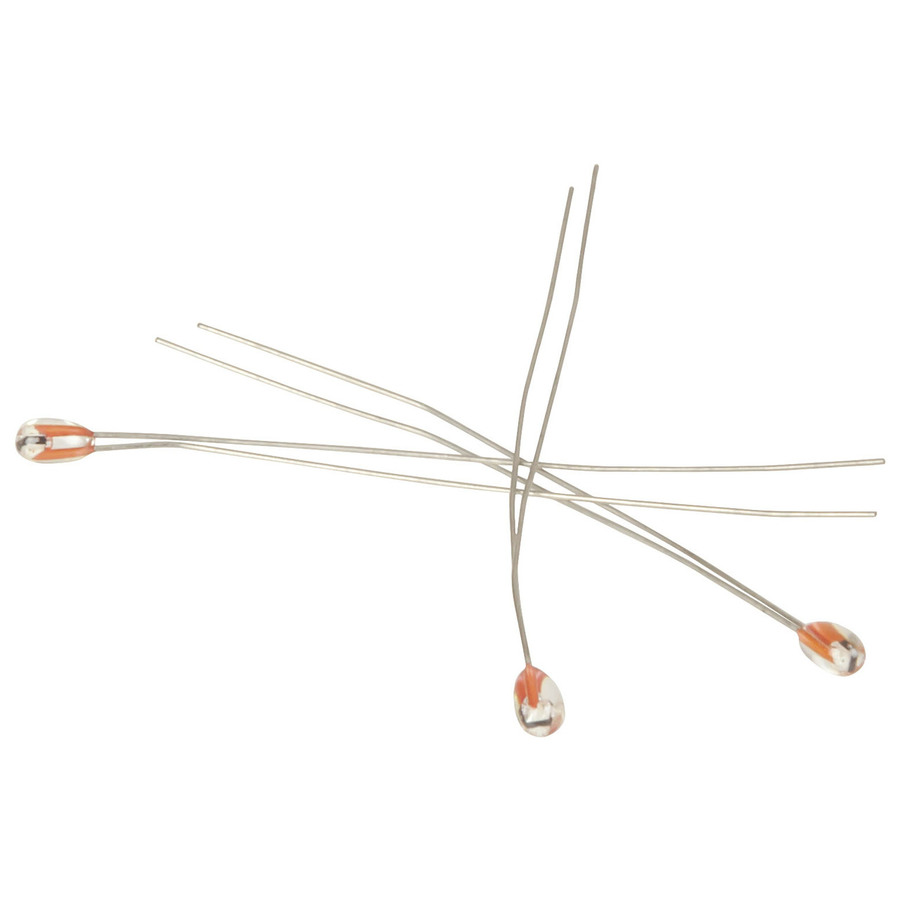

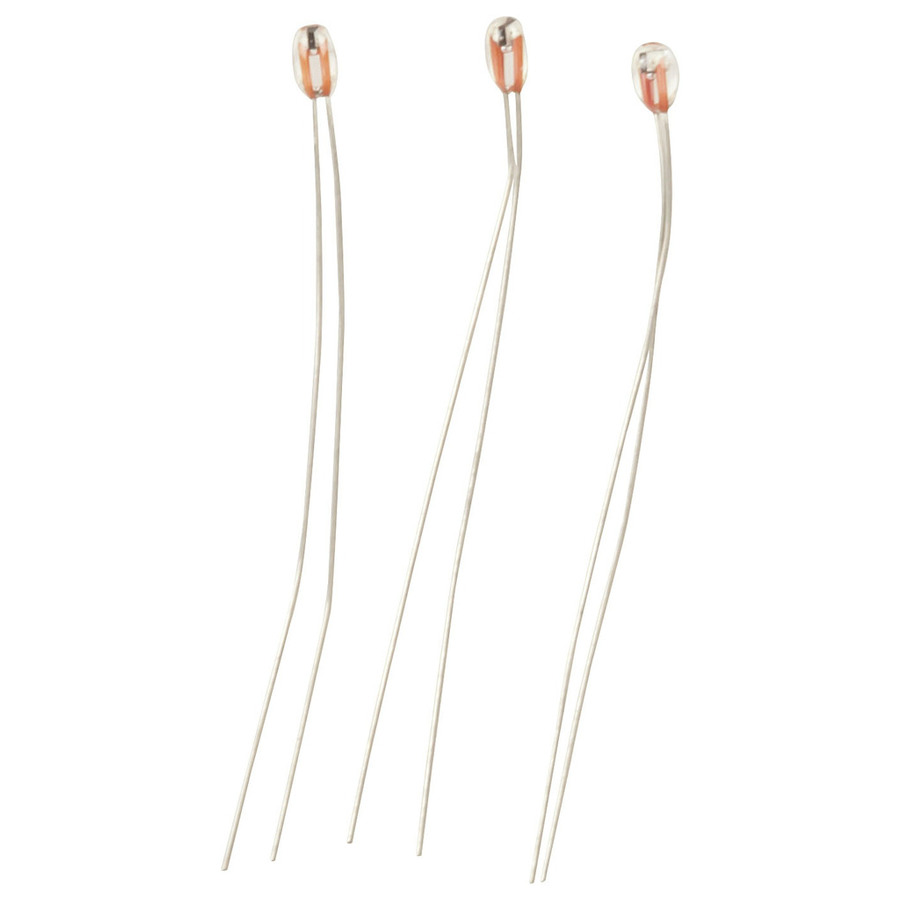

100kΩ Glass NTC Thermistor

$5.95
Compatible with the hot-end thermistors used in many 3D printers.
Available

Description

This high temperature NTC thermistor is suitable for operation up to 250 degrees, and is compatible with the hot-end thermistors used in many 3D printers.

Features:
Sealed glass body with small bead for fast response

    Specifications

    Thermistor

    Resistance at 25°C ±10%
    		 100k?
    Thermistor Temperature Range
    		 -40°C-250°C
    Temperature Coefficient
    		 Negative (NTC)
    Thermal Dissipation Constant
    		 1mW/°C

    Passive Component

    Passive mount type
    		 Through Hole
    Component Type
    		 Thermistor
    Passive connector type
    		 Solder Legs
    Nominal Leg Length
    		 30mm
    Pack Quantity
    		 1pc
    Passive number of legs
    		 2 count

    Product Dimensions

    Height
    		 4.1mm
    Diameter
    		 1.7mm

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 3cm
    Packaged Width
    		 0.1cm
    Packaged Weight
    		 4.0E-4kg
    Packaged Volume
    		 3.0E-5l
    Packaged Height
    		 0.1cm
