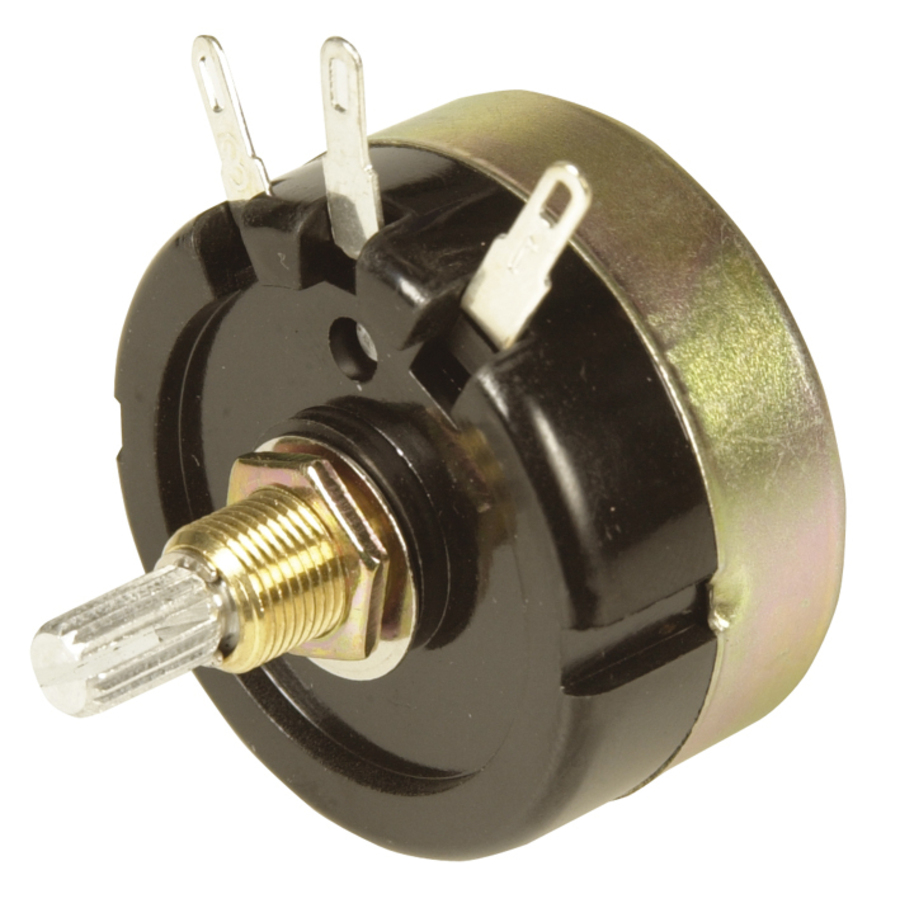

5 Ohm 15 Watt Linear (B) Wire Wound Potentiometer
5 Ohm 15 Watt Linear (B) Wire Wound Potentiometer
5 Ohm 15 Watt Linear (B) Wire Wound Potentiometer

CAT. No. RP3975

5 Ohm 15 Watt Linear (B) Wire Wound Potentiometer
product image thumb
product image thumb

5 Ohm 15 Watt Linear (B) Wire Wound Potentiometer

$20.95
Resistance: 5 Ohms Resistance Curve: Linear (B) Power: 15 Watts Shaft: Spline Body measures: 41mm OD x 24mm Depth Shaft Length: 20mm
Available

Description

Features:

Resistance: 5 Ohms
Resistance Curve: Linear (B)
Power: 15W
Shaft: Spline
Body measures: 41mm OD x 24mm Depth
Shaft Length: 20mm
9.0mm hole required
Lugs: Solder Type
Total rotation angle: 300° +/-5°
Rotation Torque: 70~400gf.cm
Stopper Strength: 10Kgf.cm


    Specifications

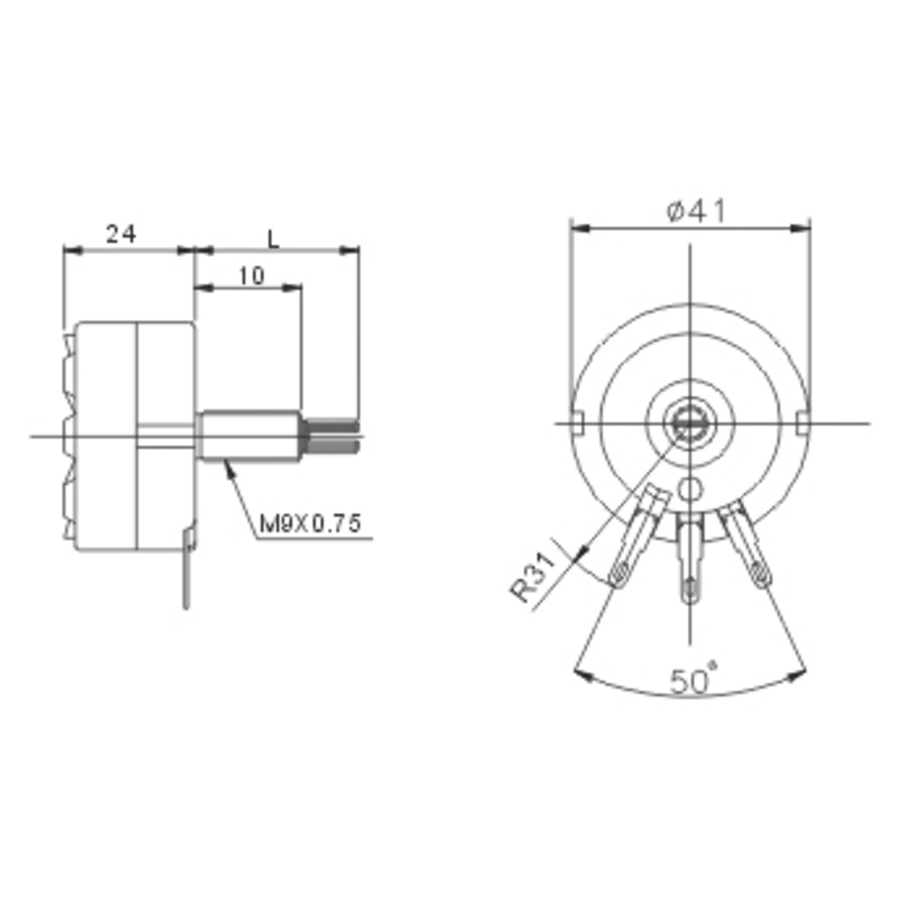

    Product Dimensions

    Height
    		 24mm
    Dimension details
    		 Overall Dimensions, Shaft Length
    Diameter
    		 41mm, 9mm

    Packaged Dimensions

    Packaged Length
    		 4.5cm
    Packaged Width
    		 5cm
    Packaged Weight
    		 0.036kg
    Packaged Volume
    		 0.09l
    Packaged Height
    		 4cm

    Internal or Sub-part Dimensions

    Length
    		 20mm
    Dimension details
    		 Overall Dimensions, Shaft Length

    Additional Dimensions

    Dimensions details
    		 Hole Required
    Diameter
    		 41mm, 9mm

    Potentiometer

    Rotation Torque
    		 70-400gf.cm
    Potentiometer Gang Number
    		 Single gang
    Log or Linear?
    		 Linear
    Rotation Angle
    		 300°
    Stop Strength
    		 10kgf.cm
    Potentiometer Knob Type
    		 Metric splined
    Potentiometer Terminal Type
    		 Solder Tags

    Resistance Rating

    Resistance level
    		 5?

    Power Rating

    Continuous Power
    		 15W

    Product Availability

    Availability
    		 Stocked item
