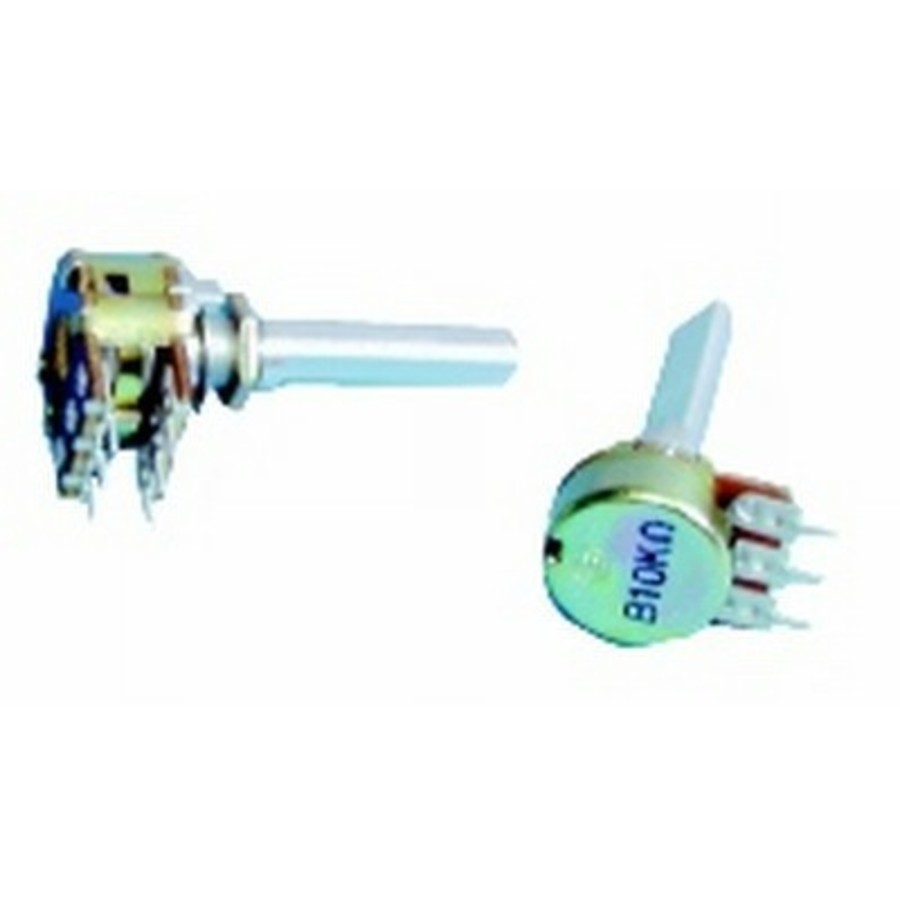

50k Ohm Linear (B) Single Gang 16mm Potentiometer
50k Ohm Linear (B) Single Gang 16mm Potentiometer

CAT. No. RP7516

50k Ohm Linear (B) Single Gang 16mm Potentiometer
product image thumb

50k Ohm Linear (B) Single Gang 16mm Potentiometer

$3.95
These pots have imperial standard shaft.- Shaft is 1/4 D type (30% of shaft has been removed for flat), so they suit all our knob range.- Shaft lengt...
Available

Description

These pots have imperial standard shaft.- Shaft is 1/4 D type (30% of shaft has been removed for flat), so they suit all our knob range.- Shaft length is 30mm, so there is plenty there if you need more length.- Power rating Linear 0.2W and Log 0.1W.Value50K

    Specifications

    Packaged Dimensions

    Packaged Length
    		 2.5cm
    Packaged Width
    		 1.5cm
    Packaged Weight
    		 0.006kg
    Packaged Volume
    		 0.015l
    Packaged Height
    		 4cm

    Potentiometer

    potentiometer nut size
    		 16mm metric
    Potentiometer Diameter
    		 16mm
    Log or Linear?
    		 Linear
    Potentiometer Shaft Length
    		 23.5mm
    Potentiometer Knob Type
    		 Imperial D
    Potentiometer Terminal Type
    		 Solder Legs

    Passive Component

    Component package
    		 Metal can
    Passive mount type
    		 Panel, Through Hole
    Passive connector type
    		 Solder Legs
    Pack Quantity
    		 1pc
    Passive number of legs
    		 3 count
    Passive marking code
    		 Number code

    Resistance Rating

    Resistance level
    		 50k?

    Power Rating

    Continuous Power
    		 0.125W

    AC Voltage Rating

    AC Voltage rating
    		 150V

    Product Availability

    Availability
    		 Stocked item
