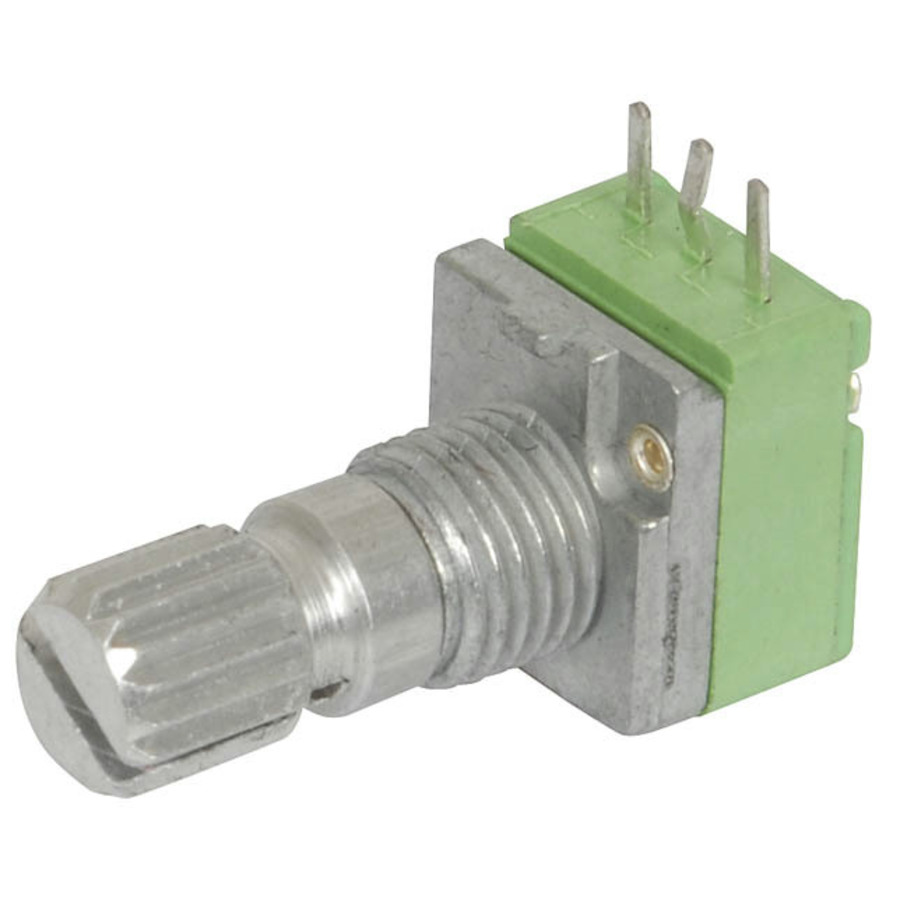

1M Ohm Linear (B) Single Gang 9mm Potentiometer
1M Ohm Linear (B) Single Gang 9mm Potentiometer

CAT. No. RP8524

1M Ohm Linear (B) Single Gang 9mm Potentiometer
product image thumb

1M Ohm Linear (B) Single Gang 9mm Potentiometer

$4.95
These pots are rapidly becoming the industry standard for miniaturised audio, digital and telecommunications equipment. This series features good sold...
Available

Description

Features:

Rated Power: 0.05W

Rated Voltage: 50VAC

Slider Noise: <100mV

Insulation resistance: >100M at 250VDC

Dielectric: 300VAC/Minute

Tracking Error: Within 3dB at 40~0dB

Mechanical Rotation Angle: 300° +/- 5°

Rotation Torque: 20~250gf.cm

Shaft Stop Strength: 5kgf.cm/min.

Value1MΩ


    Specifications

    Packaged Dimensions

    Packaged Length
    		 1cm
    Packaged Width
    		 1.5cm
    Packaged Weight
    		 0.004kg
    Packaged Volume
    		 0.00375l
    Packaged Height
    		 2.5cm

    Potentiometer

    potentiometer nut size
    		 9mm metric
    Potentiometer Diameter
    		 9mm
    Log or Linear?
    		 Linear
    Potentiometer Shaft Length
    		 10mm
    Potentiometer Knob Type
    		 Metric splined
    Potentiometer Terminal Type
    		 Solder Legs

    Passive Component

    Component package
    		 Square pack
    Passive mount type
    		 Panel, Through Hole
    Passive connector type
    		 Solder Legs
    Pack Quantity
    		 1pc
    Passive number of legs
    		 3 count
    Passive marking code
    		 Number code

    Resistance Rating

    Resistance level
    		 1M?

    Power Rating

    Continuous Power
    		 0.05W

    AC Voltage Rating

    AC Voltage rating
    		 50V

    Product Availability

    Availability
    		 Stocked item

    Downloads

      Articles
      Articles

    RP8524-dataSheetMain.pdf
