CAT. No. SB1685

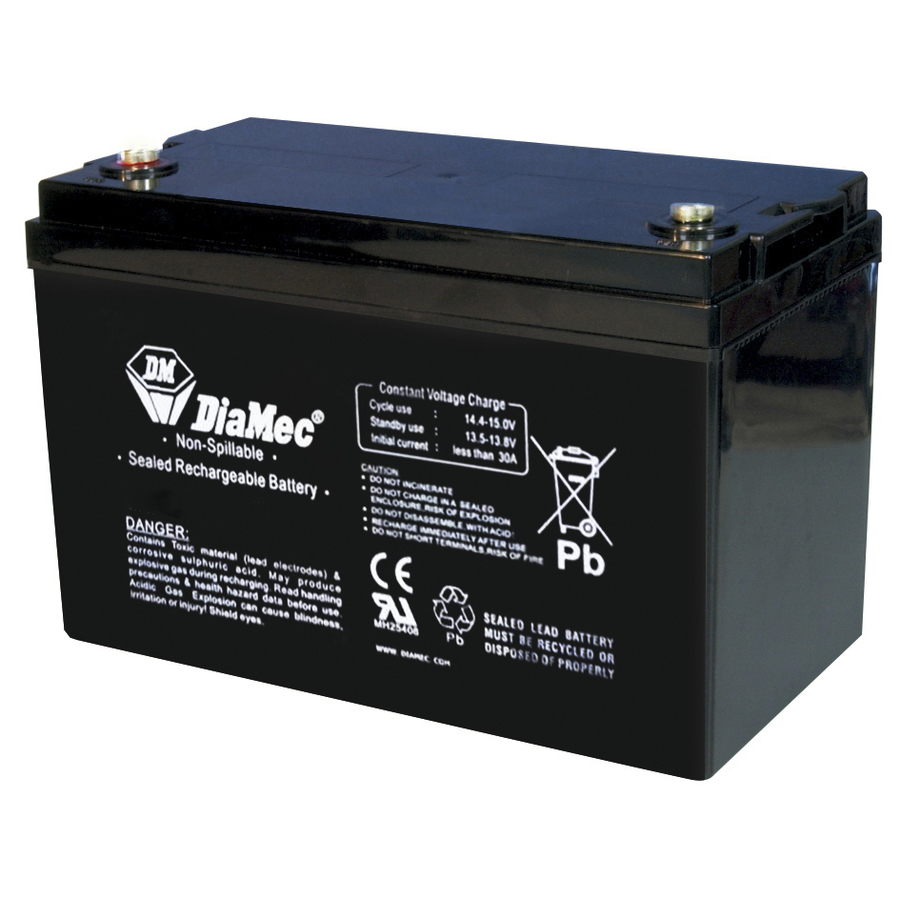

12V 120Ah AGM Deep Cycle Battery in 330mm case
product image thumb

12V 120Ah AGM Deep Cycle Battery in 330mm case

$399
Get the extra power of a 120Ah battery in the most popular 100Ah size! This means it will be compatile with many boxes, carry cases and other products not previously suitable for this capacity.

Out of Stock

Description

2 Year Warranty

This product has an absorbent glass mat embedded in the structure of the plates. (There are 6 sets of plates, each 2.0V which makes up a “battery” of plates, i.e. 12V). The mat does two things. It reinforces the lead frame of each plate, or cell, and it stops the plates from buckling under heavy discharge current). By helping make the innards of the battery virtually solid, you can mount it in any position, but it is still preferable, of course, to mount the battery upright, even for the sake of convenience of terminal access. They are an excellent product.

Note: It is important to not discharge an AGM more than 60% between recharge.

    Specifications

    Battery Packs and Batteries


    Connection Type
    M8 Bolt/Nut
    Amp Hour Rating
    120Ah

    DC Voltage Rating


    DC Voltage
    12V

    Product Dimensions


    Height
    217mm
    Width
    330mm
    Depth
    172mm
    Weight
    31kg

    Product Availability


    Availability
    Stocked item

    Packaged Dimensions


    Packaged Length
    35cm
    Packaged Width
    18.5cm
    Packaged Weight
    31.8kg
    Packaged Volume
    15.54l
    Packaged Height
    24cm
    Warranty: 24 Months
