CAT. No. SB2220

12.8V 100Ah Lithium Slimline Deep Cycle Battery with Metal Case
product image thumb
product image thumb
product image thumb
product image thumb

12.8V 100Ah Lithium Slimline Deep Cycle Battery with Metal Case

$999
This compact 100Ah LiFePO4 battery comes in a metal powder coated case - ideal for mounting in those tight spaces without compromising on capacity.

Out of Stock

Description

3 Year Warranty
Batteries Included
Hazardous Materials

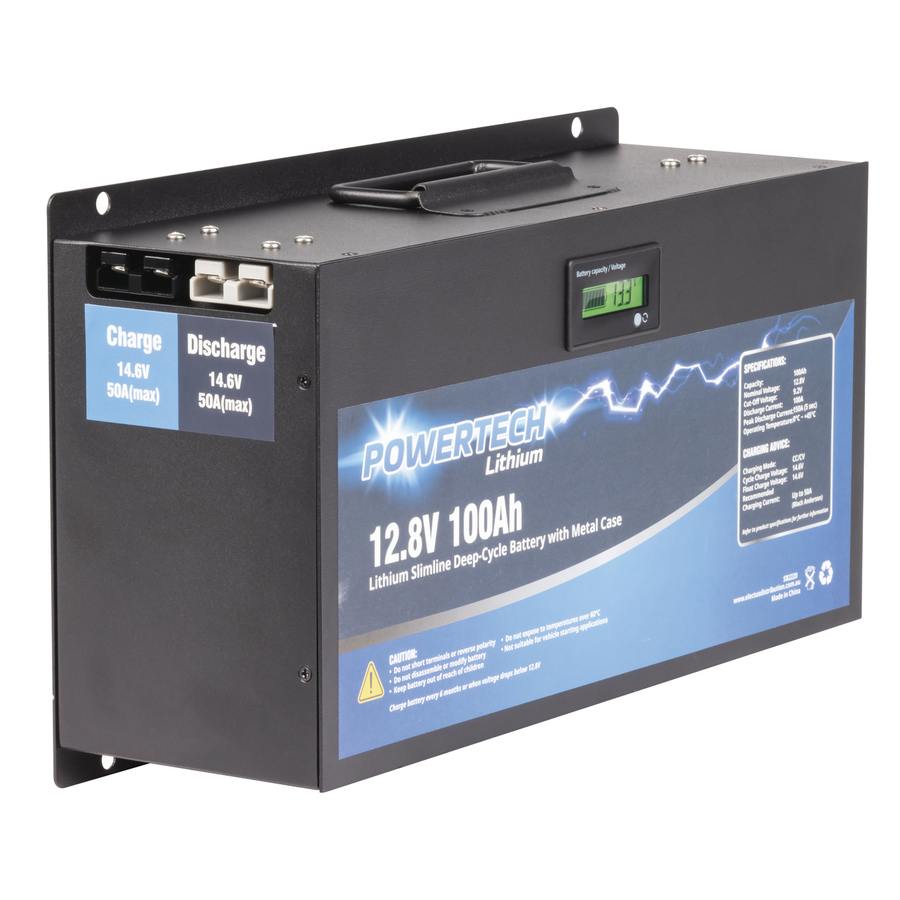

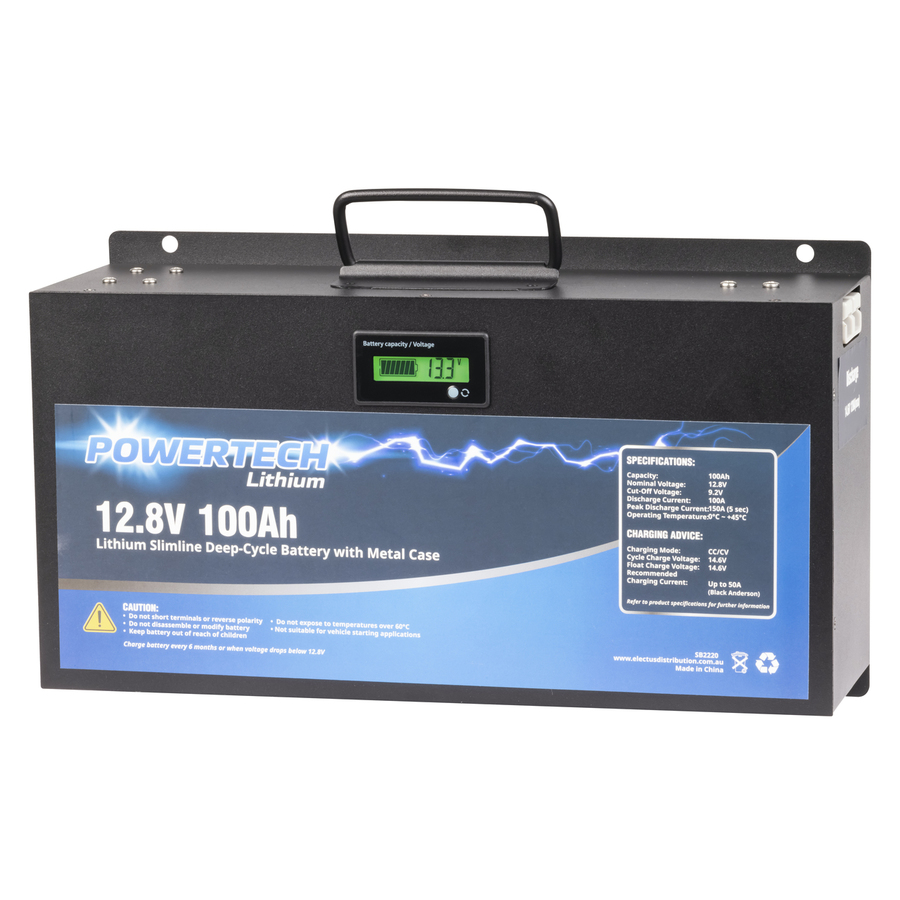

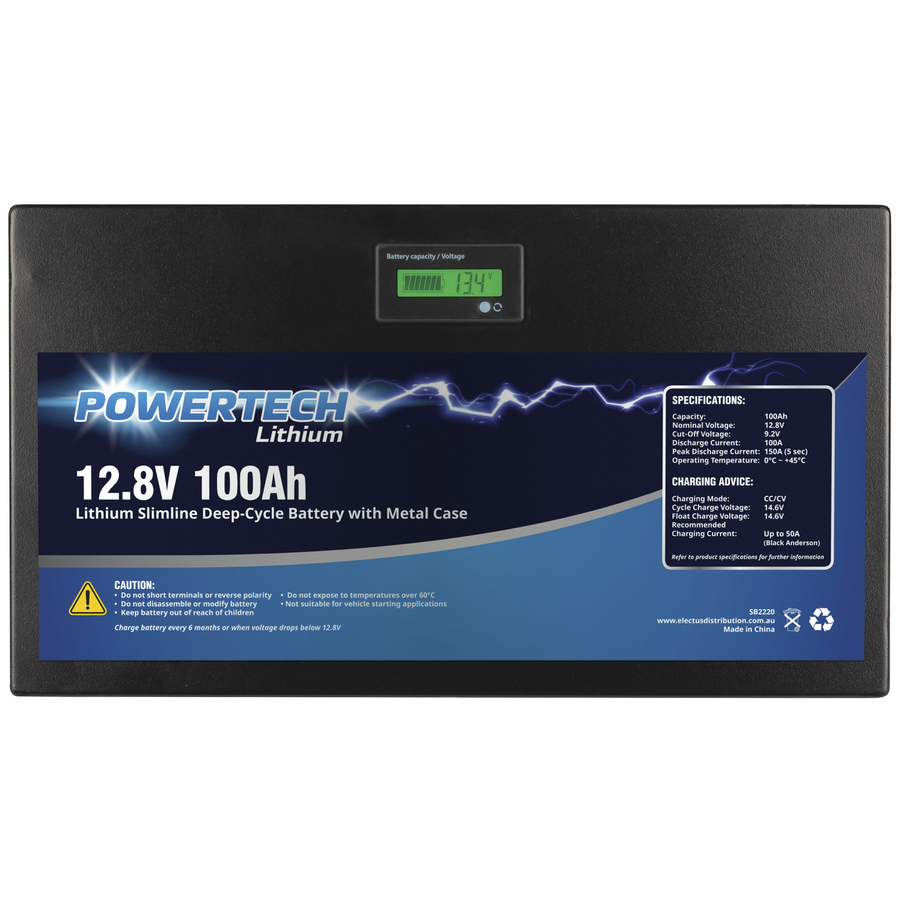

This battery comes in a sturdy mild steel black powder coated case with mounting flanges.  It measures a compact 360 long x 180w (excluding flanges) x 115h.  It has strong metal handle on the long side above battery display.  Including steel box it weighs 13kgs – quite light for a 100 A/hr battery.  On the end of one long side are 2 x flush mount 50A High current sockets and on the other side there is 1 x flush mount 120A High Current Socket.  On the top of the case is a battery capacity voltage display that measures 60x40mm (back lit.)

Because of the low profile of this unit, it will fit neatly behind the driver/passenger seat in a car 4WD/RV.  Indeed you could put one behind each seat for 200 A/Hr.  The High Current connectors guarantee a neat wiring installation with no exposed electrical terminals.  It could easily fit somewhere in a box-type camping trailer or even a small boat under a seat.


    Specifications

    Power from rechargeable battery


    Shape
    Lithium Rechargeable Battery Cell/Pack
    Capacity
    100Ah
    Voltage
    12.8V

    Classified as dangerous goods


    DG Class
    9
    DG UN Number
    3480
    DG Pack Group
    II - Medium Danger
    DG Ship Name
    3480 - Lithium Ion Batteries
    DG Hazardous Chemical Code
    4W
    Battery Watt Hour Rating (Required for Lithium Batteries)
    1280Wh

    Product Dimensions


    Length
    360mm
    Height
    115mm
    Width
    180mm
    Weight
    11kg

    Product Availability


    Availability
    Stocked item

    Packaged Dimensions


    Packaged Length
    40cm
    Packaged Width
    25cm
    Packaged Weight
    12kg
    Packaged Volume
    16l
    Packaged Height
    16cm
    Warranty: 36 Months
