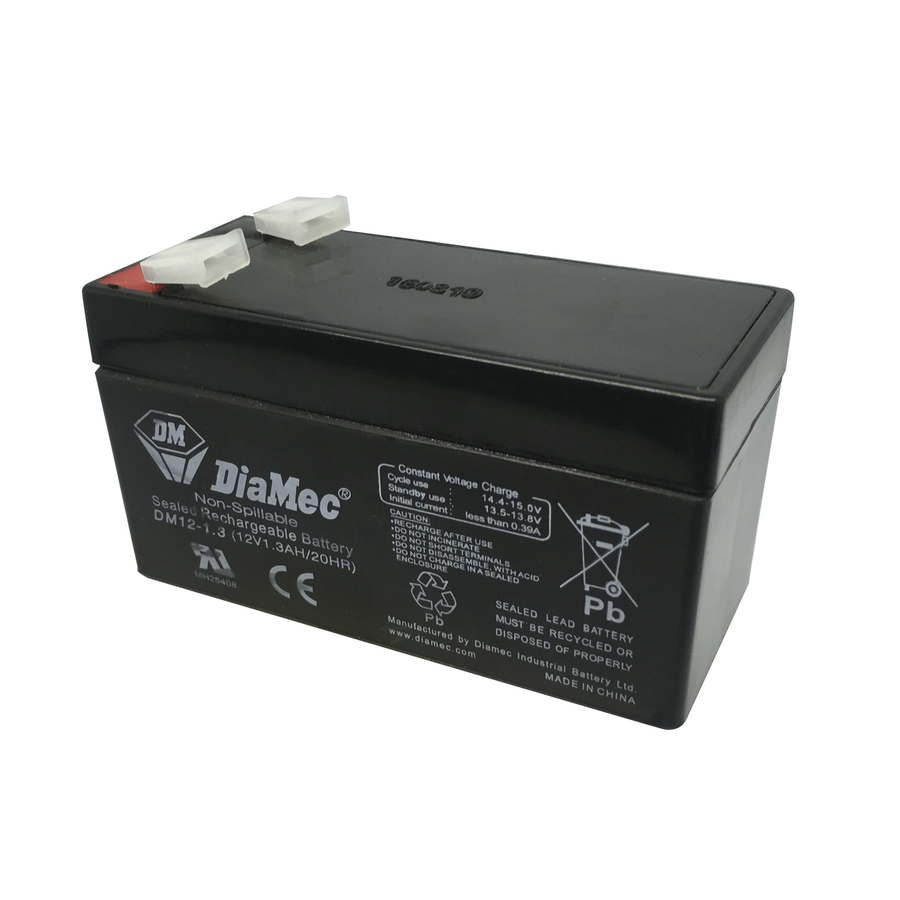

12V 1.3Ah Sealed Lead Acid (SLA) Battery
12V 1.3Ah Sealed Lead Acid (SLA) Battery
12V 1.3Ah Sealed Lead Acid (SLA) Battery

CAT. No. SB2480

12V 1.3Ah Sealed Lead Acid (SLA) Battery
product image thumb
product image thumb

12V 1.3Ah Sealed Lead Acid (SLA) Battery

$12.95
Compact 12V sealed lead acid battery has a 1.3Ah capacity and is fitted with 4.8mm spade terminal connections
Available

Description

1 Year Warranty

Features:

- Charge current 130mA for 10-14 hours
- Discharge current 20 hour rate 65mA
- Int Resistance: Fully charged (20°C,68°F) 110mOhm
- Max Discharge Current (5 sec):40A
- Constant Voltage Charge: Initial charging current < 0.39A


Cycle:
- Voltage 14.4V~15.0V @ 20°C (68°F)
- Temp Coefficient: - 30mV/°C

Standby:
- Voltage 13.5V~13.8V @ 20°C (68°F)
- Temp Coefficient: - 20mV/°C





For More info on Charging Batteries.


    Specifications

    Rechargeable Battery

    Recharging Time
    		 20hr
    Battery quantity
    		 1pc
    Standard Recharge Current
    		 130A

    DC Voltage Rating

    DC Voltage
    		 12V

    Product Dimensions

    Length
    		 97mm
    Height
    		 57mm
    Depth
    		 43mm

    Packaged Dimensions

    Packaged Length
    		 10.3cm
    Packaged Width
    		 4.9cm
    Packaged Weight
    		 0.576kg
    Packaged Volume
    		 0.343196l
    Packaged Height
    		 6.8cm

    Battery Packs and Batteries

    Battery Chemical Composition
    		 Sealed Lead Acid (SLA)
    10 Hour Capacity
    		 1.2Ah
    5 Hour Capacity
    		 1.1Ah
    20 Hour Capacity
    		 1.3Ah
    Battery usage
    		 Rechargeable
    1 Hour Capacity
    		 0.73Ah
    Connection Type
    		 Spade Terminals
    Amp Hour Rating
    		 1.3Ah
    Internal Resistance
    		 110m?

    Product Availability

    Availability
    		 Stocked item
    Warranty: 12 Months
