12V 2.2Ah SLA Battery
12V 2.2Ah SLA Battery
12V 2.2Ah SLA Battery

CAT. No. SB2482

12V 2.2Ah SLA Battery
product image thumb
product image thumb

12V 2.2Ah SLA Battery

$31.95

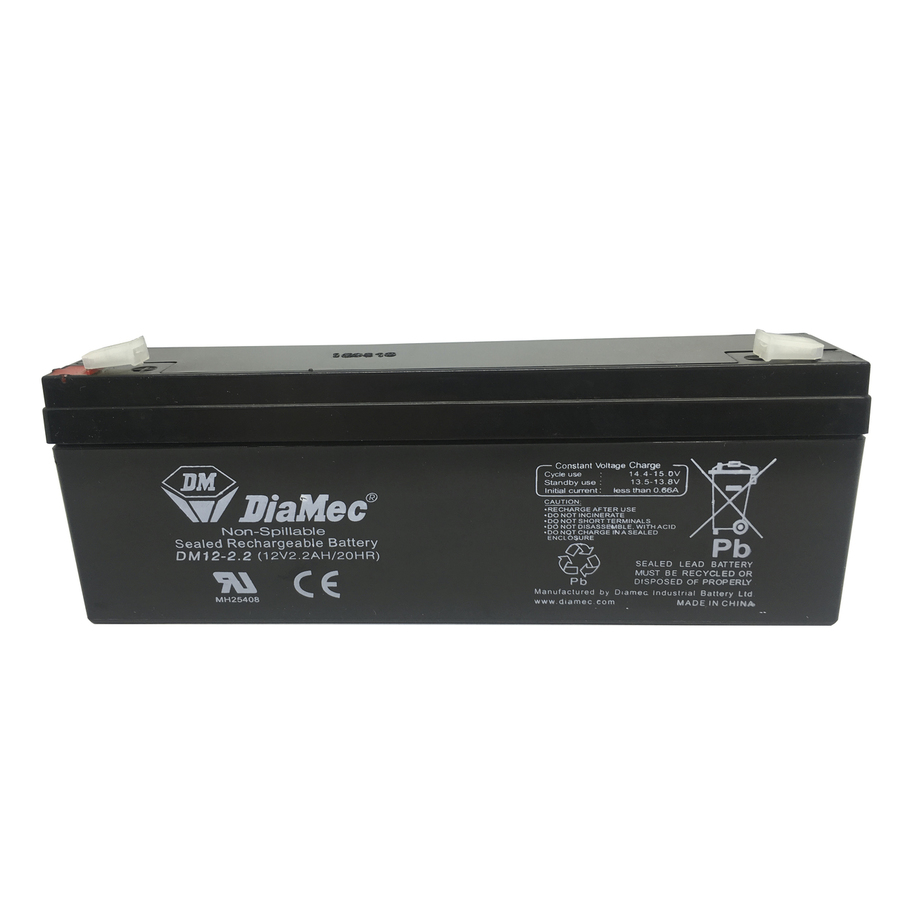

Compact 12V sealed lead acid battery has a 2.2Ah capacity and is fitted with 4.8mm spade terminal connections
Available

Description

1 Year Warranty

Features:

Charge current: 220 mA for 10-14 hours
Discharge current: 20 hour rate 110mA

• Max Discharge Current: (5 sec.) 40Ah
• Initial charging current: >0.66A @ 14.4
• 15V @ 20°C.- Temp. coefficient: -30mV/°C
• Standby: 13.5 - 13.8V @ 20°C.
• Temp. coefficient: -20mV/°C



For More info on Charging Batteries.


    Specifications

    Rechargeable Battery

    Recharging Time
    		 20hr
    Recharging Voltage
    		 14.4V-15V
    Standard Recharge Current
    		 220mA

    DC Voltage Rating

    DC Voltage
    		 12V

    Product Dimensions

    Length
    		 178mm
    Height
    		 66mm
    Depth
    		 34mm

    Packaged Dimensions

    Packaged Length
    		 18.7cm
    Packaged Width
    		 7.8cm
    Packaged Weight
    		 0.982kg
    Packaged Volume
    		 0.641784l
    Packaged Height
    		 4.4cm

    Battery Packs and Batteries

    Battery Chemical Composition
    		 Sealed Lead Acid (SLA)
    Battery Peak Current
    		 33A
    10 Hour Capacity
    		 1.98Ah
    5 Hour Capacity
    		 3.52Ah
    20 Hour Capacity
    		 2.2Ah
    Battery usage
    		 Rechargeable
    1 Hour Capacity
    		 1.32Ah
    Connection Type
    		 Spade Terminals
    Amp Hour Rating
    		 2.2Ah
    Type of battery
    		 SLA Block
    Internal Resistance
    		 50?

    Product Availability

    Availability
    		 Stocked item
    Warranty: 12 Months

    Downloads

      Articles
      Articles

    SB2482-dataSheetMain.pdf
    SB2482-msdsMain.pdf
