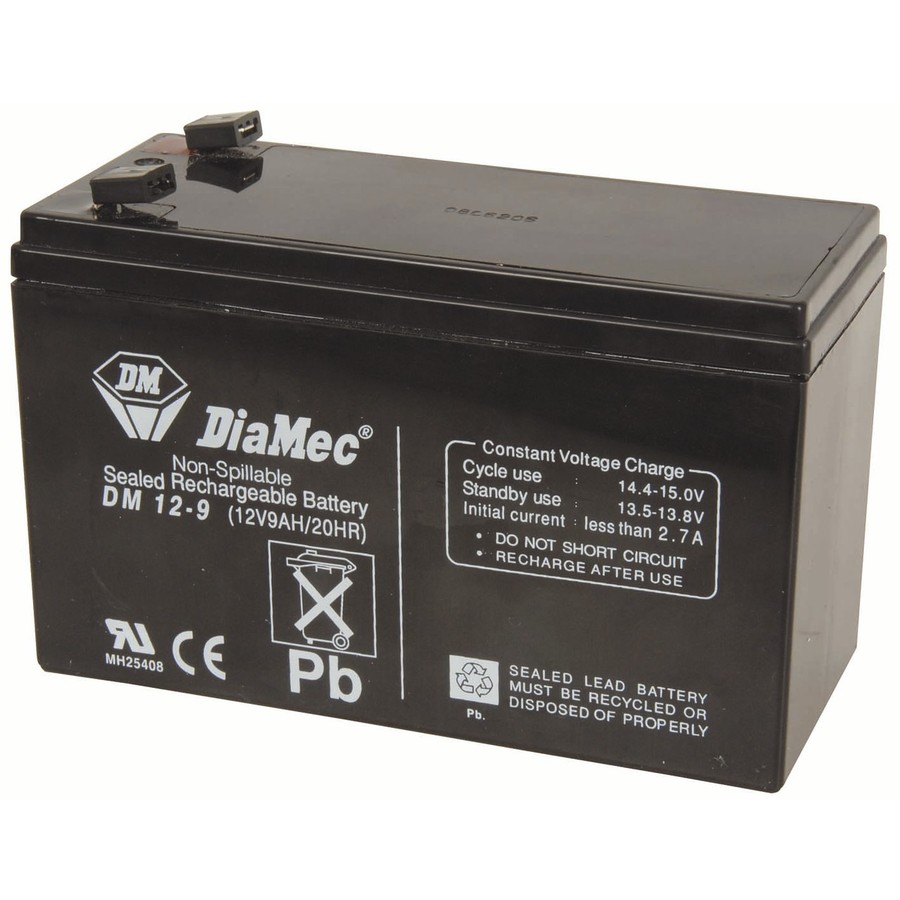

12V 9Ah SLA Battery
12V 9Ah SLA Battery

CAT. No. SB2487

12V 9Ah SLA Battery
product image thumb

12V 9Ah SLA Battery

$39.95
Same dimensions as a 7.2Ah battery but with 9Ah capacity - fitted with 6.3mm spade terminals!
Available

Description

1 Year Warranty

Features:

Discharge current max: 135A for 5 sec
Initial charge current: 2.7A
Cycle voltage: 14.4 - 15V
Standby voltage: 13.5 - 13.9V




For More info on Charging Batteries.


    Specifications

    Rechargeable Battery

    Recharging Time
    		 12hr
    Recharging Voltage
    		 13.5V-14.7V
    Standard Recharge Current
    		 900mA

    DC Voltage Rating

    DC Voltage
    		 12V

    Product Dimensions

    Length
    		 150mm
    Height
    		 93mm
    Width
    		 65mm

    Packaged Dimensions

    Packaged Length
    		 15.9cm
    Packaged Width
    		 7.3cm
    Packaged Weight
    		 2.524kg
    Packaged Volume
    		 0.475887l
    Packaged Height
    		 4.1cm

    Battery Packs and Batteries

    Battery Chemical Composition
    		 Sealed Lead Acid (SLA)
    Battery Peak Current
    		 130A
    10 Hour Capacity
    		 8.1Ah
    5 Hour Capacity
    		 7.2Ah
    20 Hour Capacity
    		 9Ah
    Battery usage
    		 Rechargeable
    1 Hour Capacity
    		 5.4Ah
    Connection Type
    		 Spade Terminals
    Amp Hour Rating
    		 9Ah
    Type of battery
    		 SLA Block

    Product Availability

    Availability
    		 Stocked item
    Warranty: 12 Months

    Downloads

      Articles
      Articles

    SB2487-dataSheetMain.pdf
    SB2487-msdsMain.pdf
