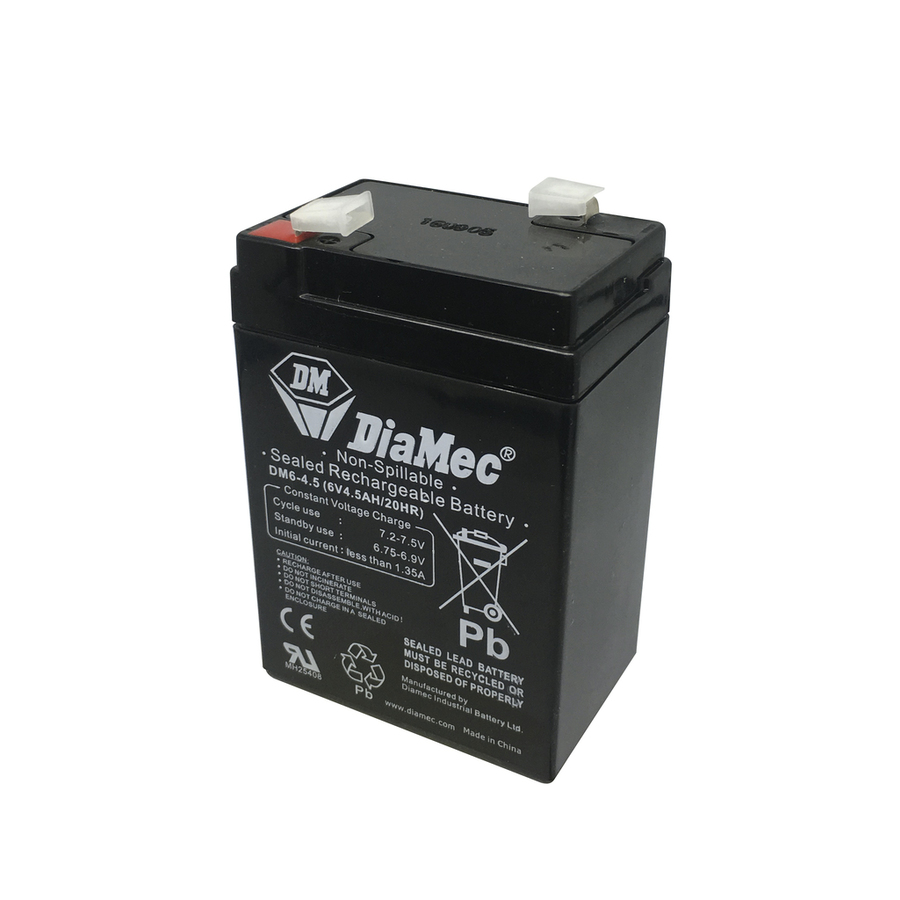

6V 4.5Ah SLA Battery

$14.95
One of the most common 6V sealed lead acid batteries, these are fitted with 4.8mm spade connections.
Available

Description

1 Year Warranty

Features:

• Charge current 420mA for 10- 14 hours
• Discharge current 20 hr rate 200mA
• Max Discharge Current (5 sec):40A
• Constant Voltage Charge: Initial charging current < 1.2A
• Cycle:- Voltage 7.20V~7.50V @ 20°C (68°F)
• Temp Coefficient: - 15mV/°C
• Standby:- Voltage 6.75V~6.90V @ 20°C (68°F)
• Temp Coefficient: - 10mV/°C



For More info on Charging Batteries.


    Specifications

    Rechargeable Battery

    Recharging Time
    		 12hr
    Recharging Voltage
    		 7.2V-7.5V
    Standard Recharge Current
    		 500A

    DC Voltage Rating

    DC Voltage
    		 6V

    Product Dimensions

    Length
    		 70mm
    Height
    		 106mm
    Depth
    		 47mm

    Packaged Dimensions

    Packaged Length
    		 12cm
    Packaged Width
    		 7.8cm
    Packaged Weight
    		 0.692kg
    Packaged Volume
    		 0.55224l
    Packaged Height
    		 5.9cm

    Battery Packs and Batteries

    Battery Chemical Composition
    		 Sealed Lead Acid (SLA)
    Battery Peak Current
    		 67.5A
    10 Hour Capacity
    		 4.05Ah
    5 Hour Capacity
    		 3.6Ah
    20 Hour Capacity
    		 4.5Ah
    Battery usage
    		 Rechargeable
    1 Hour Capacity
    		 2.7Ah
    Connection Type
    		 Spade Terminals
    Amp Hour Rating
    		 4.5Ah
    Type of battery
    		 SLA Block
    Internal Resistance
    		 22m?

    Product Availability

    Availability
    		 Stocked item
    Warranty: 12 Months
