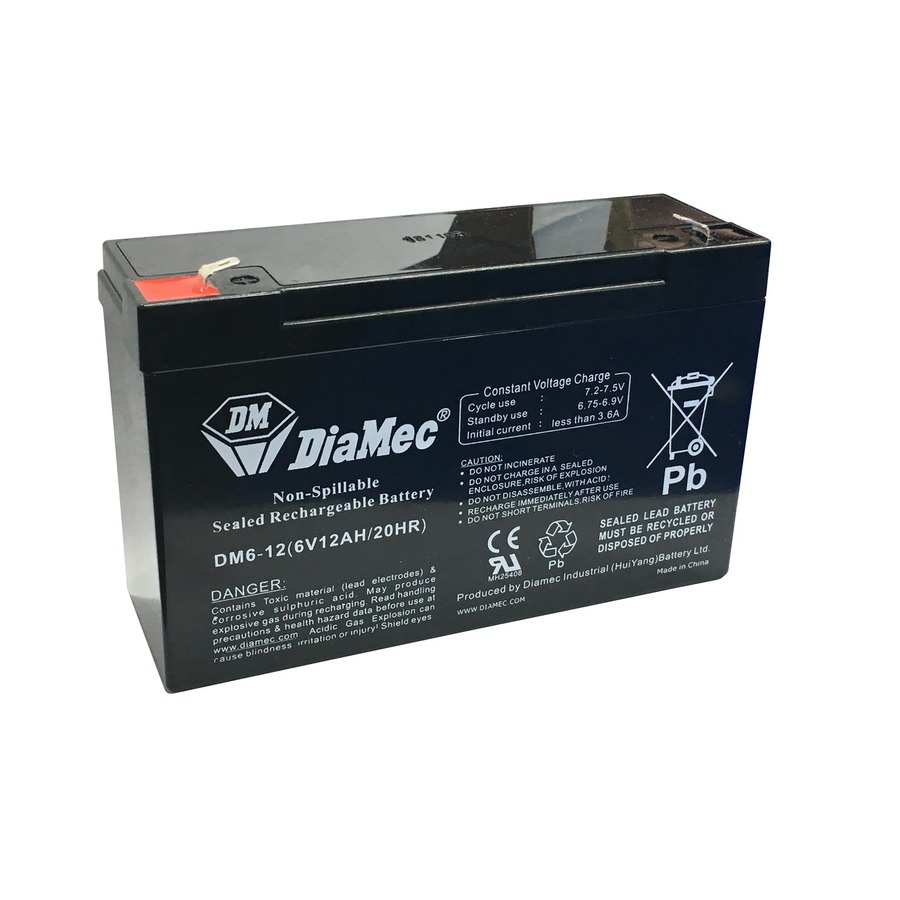

6V 12Ah SLA Battery

$37.95
One of the most common 6V sealed lead acid batteries, these are fitted with 4.8mm spade connections.
Available

Description

1 Year Warranty

Features:

- Charge current 1.2A for 10- 14 hours
- Discharge current 20 hr rate 600mA
- Max Discharge Current (5 sec):40A
- Constant Voltage Charge: Initial charging current < 3.6A

Cycle:

- Voltage 7.20V~7.50V @ 20°C (68°F)
- Temp Coefficient: - 15mV/°C Standby:- Voltage 6.75V~6.90V @ 20°C (68°F)
- Temp Coefficient: - 10mV/°C

For More info on Charging Batteries.


    Specifications

    Rechargeable Battery

    Recharging Time
    		 12hr
    Recharging Voltage
    		 7.2V-7.5V
    Standard Recharge Current
    		 1.2A

    DC Voltage Rating

    DC Voltage
    		 6V

    Product Dimensions

    Length
    		 151mm
    Height
    		 100mm
    Depth
    		 51mm

    Packaged Dimensions

    Packaged Length
    		 16cm
    Packaged Width
    		 6.1cm
    Packaged Weight
    		 1.694kg
    Packaged Volume
    		 1.09312l
    Packaged Height
    		 11.2cm

    Battery Packs and Batteries

    Battery Chemical Composition
    		 Sealed Lead Acid (SLA)
    Battery Peak Current
    		 180A
    10 Hour Capacity
    		 10.8Ah
    5 Hour Capacity
    		 9.6Ah
    20 Hour Capacity
    		 12Ah
    Battery usage
    		 Rechargeable
    1 Hour Capacity
    		 7.2Ah
    Connection Type
    		 Spade Terminals
    Amp Hour Rating
    		 12Ah
    Type of battery
    		 SLA Block
    Internal Resistance
    		 10?

    Product Availability

    Availability
    		 Stocked item
    Warranty: 12 Months
