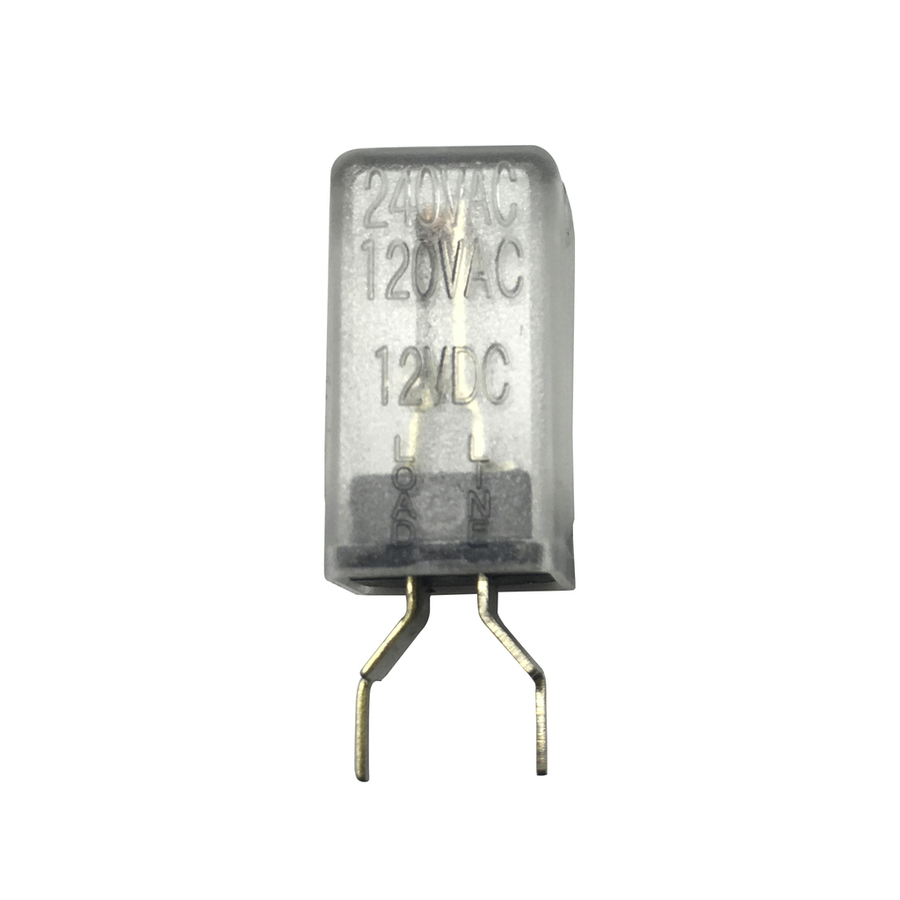

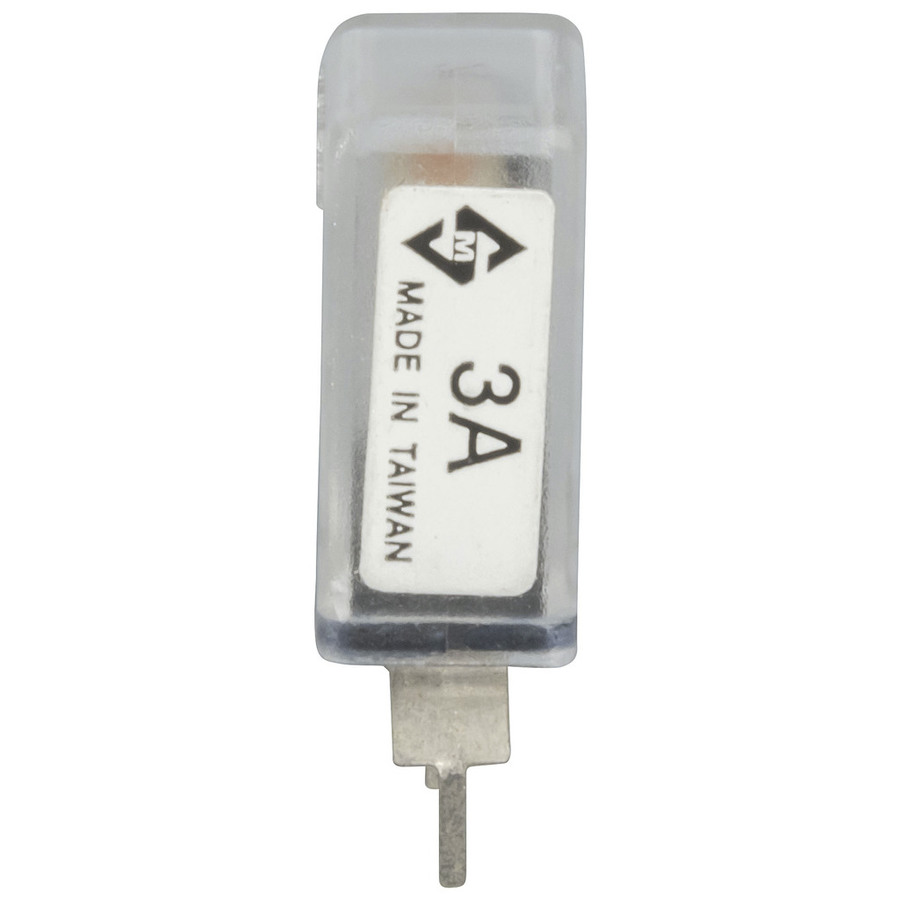

3A PCB Mount Thermal Circuit Breaker (SPST)

$7.95
Miniature automatic resetting thermal type breaker that solders directly into a PCB rated at 3 amps.

Out of Stock

Description

Miniature auto-resetting thermal type units that solder directly into a PCB.
- Ideal for protecting power supplies, amplifier output transistors, appliances etc.
- Slow response time is ideal when capricious tripping would be a nuisance.

Features:
Calibration(at 25°C):
100% of current rating; will not trip.
101- 170% of current rating increasing likelihood of trip.
175- 199% of current rating trip within 1 hour.
200% of current rating within 1 minute.
+200% of current rating from 1 minute to seconds.

Contact Resistance: 0.075ohms

    Specifications

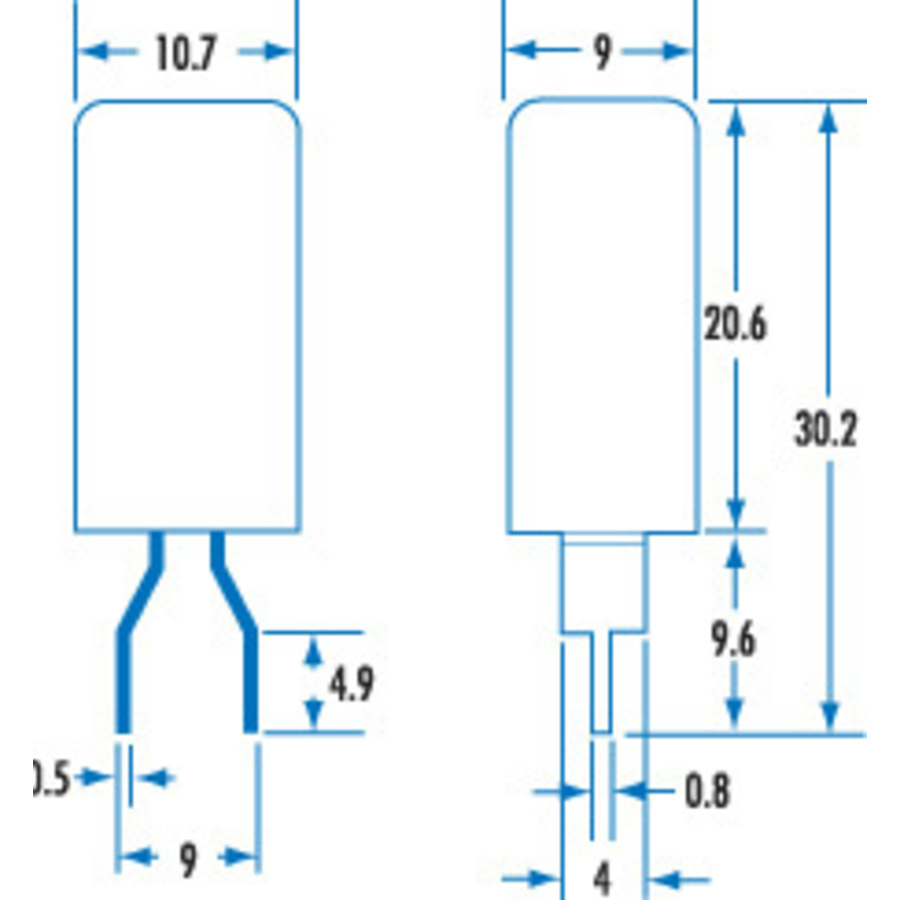

    Packaged Dimensions

    Packaged Length
    		 3cm
    Packaged Width
    		 0.7cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 0.00189l
    Packaged Height
    		 0.9cm

    Circuit Breakers

    Circuit Breaker Di-electric Strength
    		 1500VAC 1 Minute
    Circuit Breaker Contact Endurance
    		 >1000 cycles, @ 150% of contact rating
    Circuit Breaker Current
    		 3A
    Circuit Breaker Type
    		 PCB Mount
    Circuit Breaker Pole Count
    		 1 pole
    Circuit Breaker DC Voltage
    		 12V
    Circuit Breaker AC Voltage
    		 125V
    Circuit Breaker Resistance
    		 0.075?
