CAT. No. SK0916

SPDT Dual Illuminated Rocker Switch with Labels & Interchangeable Covers Orange
product image thumb
product image thumb
product image thumb
product image thumb
product image thumb
product image thumb

SPDT Dual Illuminated Rocker Switch with Labels & Interchangeable Covers Orange

$18.25
These are the superb looking rocker switches that you have seen in the cockpits of the 70-100ft luxury motor cruisers recently. They would look great ...
Available

Description

1 Year Warranty

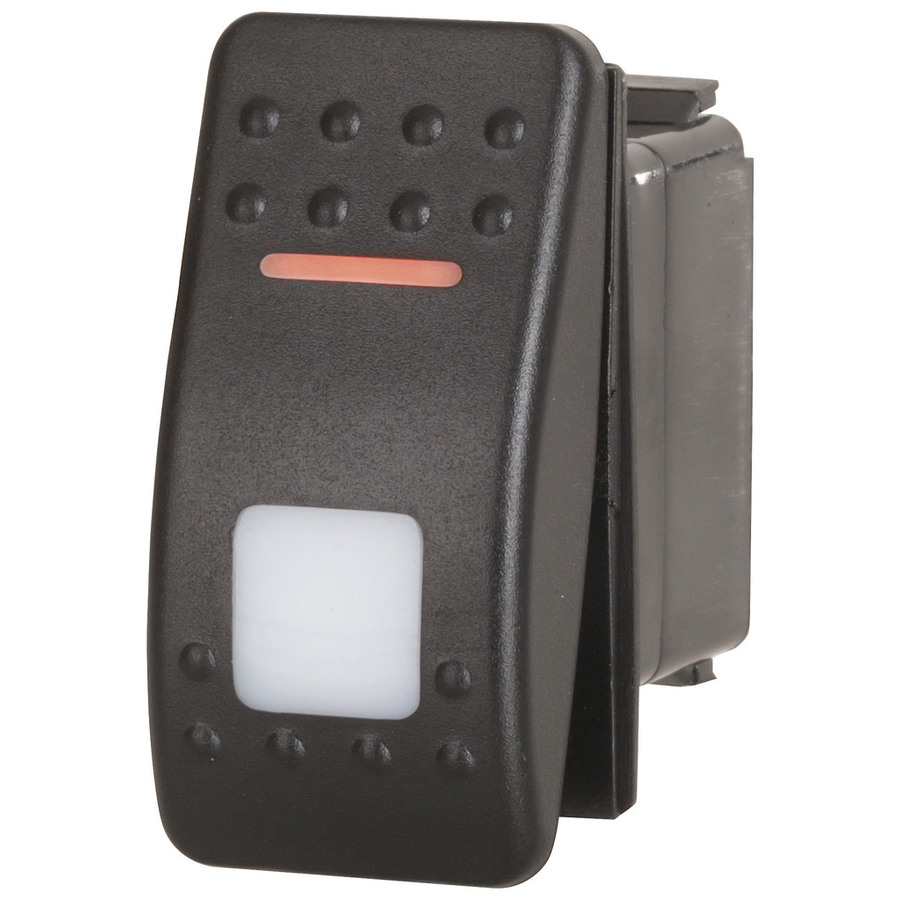

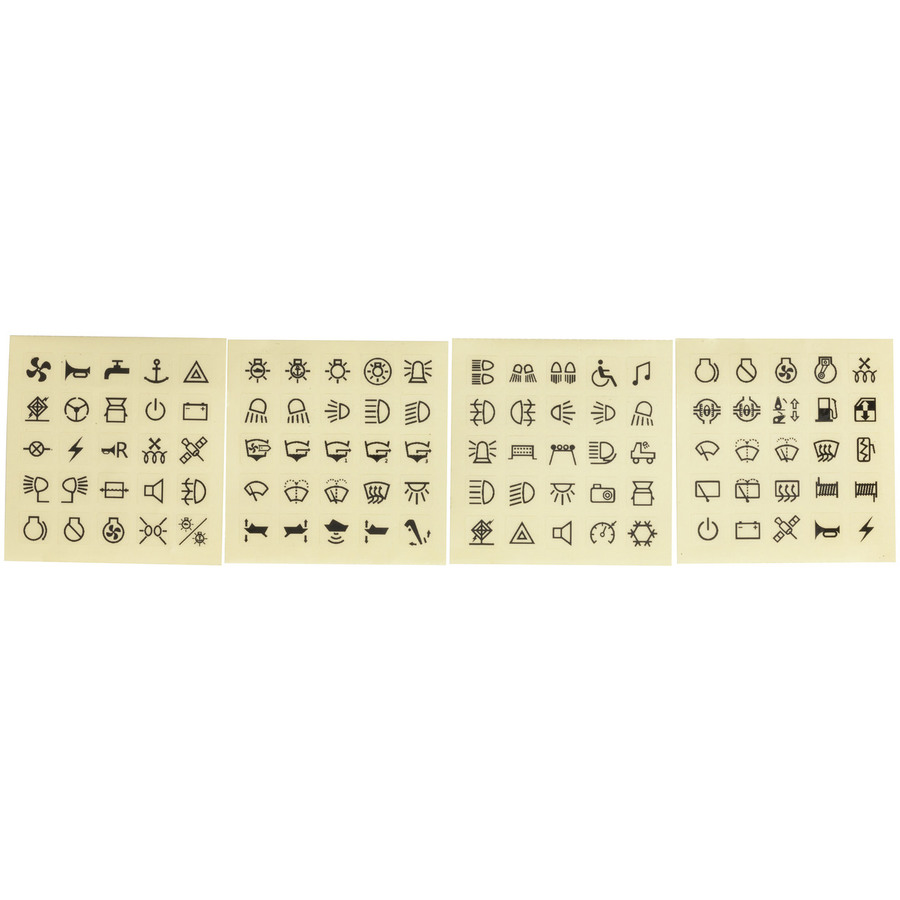

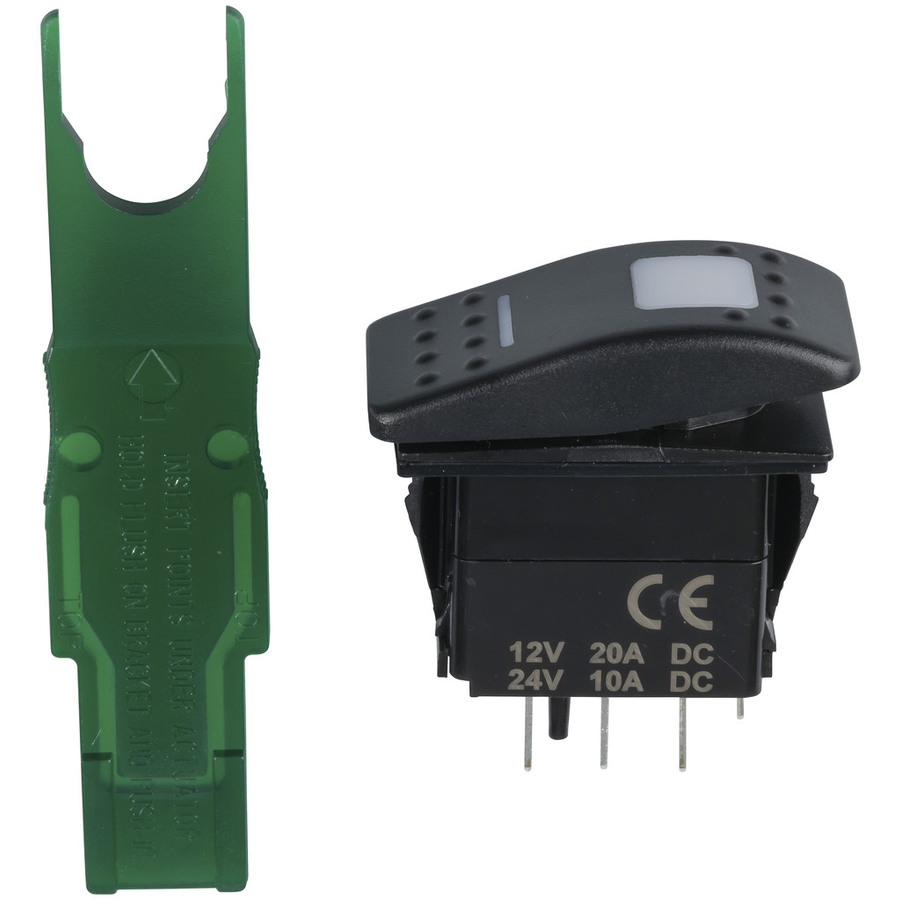

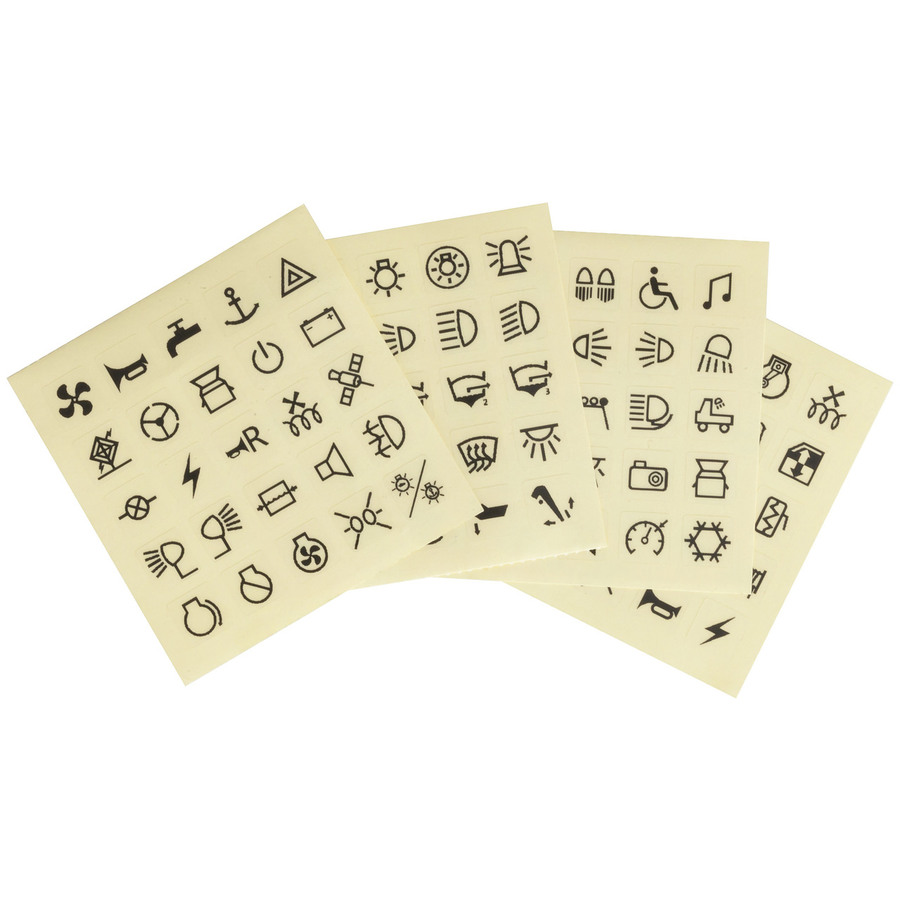

These are the superb looking rocker switches that you have seen in the cockpits of the 70-100ft luxury motor cruisers recently. They would look great in your 4WD, RV, Caravan or any other application as well. The base switch supplied (rated at 12V 20A, 24V 10A) comes with a double-LED illumination (low in OFF, high in the ON position), a standard rocker cover and a standard range of decals to customise the switch to your application.  Typical decals are symbols for: windscreen wipers, horn, heater, etc; there are dozens of these decals included.

Also available are a set of special laser-etched covers with the following graphic symbols to really create a professional finish. You need to buy the basic switch (in blue, white or red illumination) and then the custom cover (if required.)

Switches
SK-0910 SPDT Rocker - White
SK-0912 SPDT Rocker - Red
SK-0914 SPDT Rocker - Blue
SK-0916 SPDT Rocker - Orange

Laser-etched rockers
SK-0920 "12V Power"
SK-0921 "Fridge"
SK-0922 "Aux Battery"
SK-0923 "Camper Power"
SK-0924 "Spot Lights"
SK-0925 "Horn"
SK-0926 "Rear View Camera"

    Specifications

    Electromechanical Switch


    Cycle Life
    100000 cycles
    Switch Function
    Locking On/Off
    Pole Throw Type
    SPDT
    Switch Connection
    Spade Terminals
    Switch Type
    Rocker
    Poles / Contacts
    1 pole
    Throws / Positions
    2pos
    Switch Colour Coded
    Orange

    Product Mounting


    Square Mount Hole Width
    21.2mm
    Mounting Method
    Panel, Front of Panel
    Square Mount Hole Height
    37.2mm

    DC Voltage Rating


    DC Voltage
    12V

    DC Current Rating


    DC current rating
    20A

    In-built Illumination


    Illumination Colour
    Orange
    Connection
    Spade Terminals
    Nominal Voltage
    12V

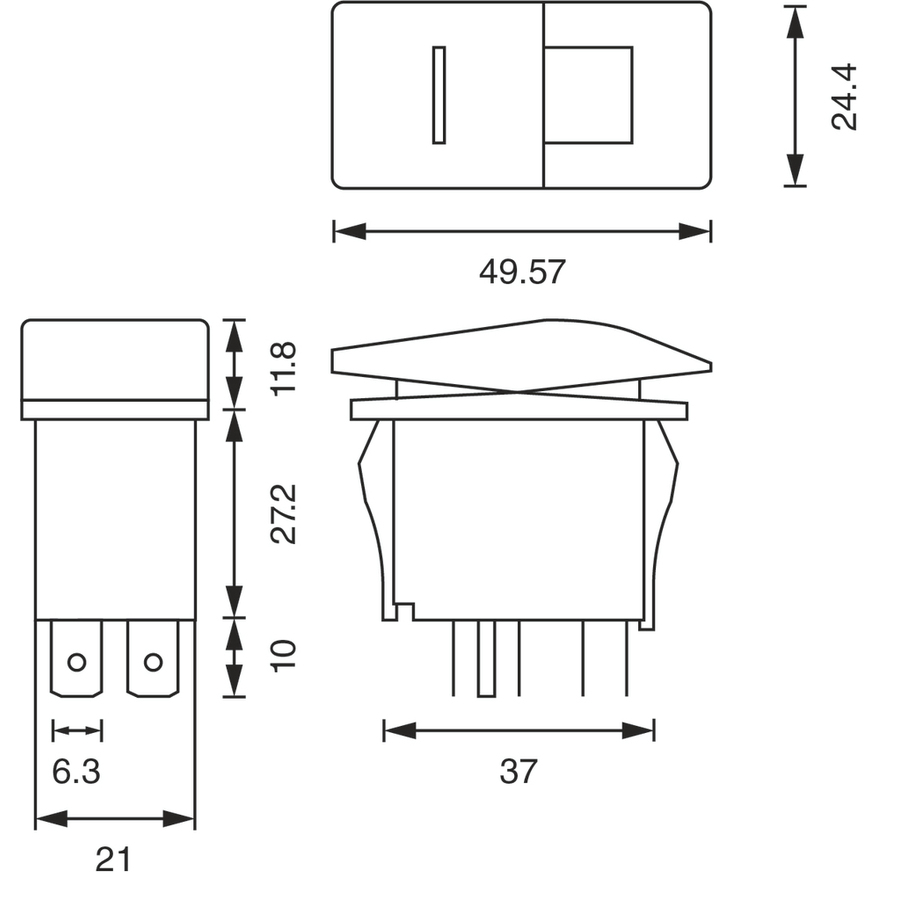

    Product Dimensions


    Length
    49.6mm
    Height
    49mm
    Width
    24.4mm

    Packaged Dimensions


    Packaged Length
    18cm
    Packaged Width
    8.2cm
    Packaged Weight
    0.052kg
    Packaged Volume
    0.4428l
    Packaged Height
    3cm

    Product Availability


    Availability
    Stocked item
    Warranty: 12 Months
