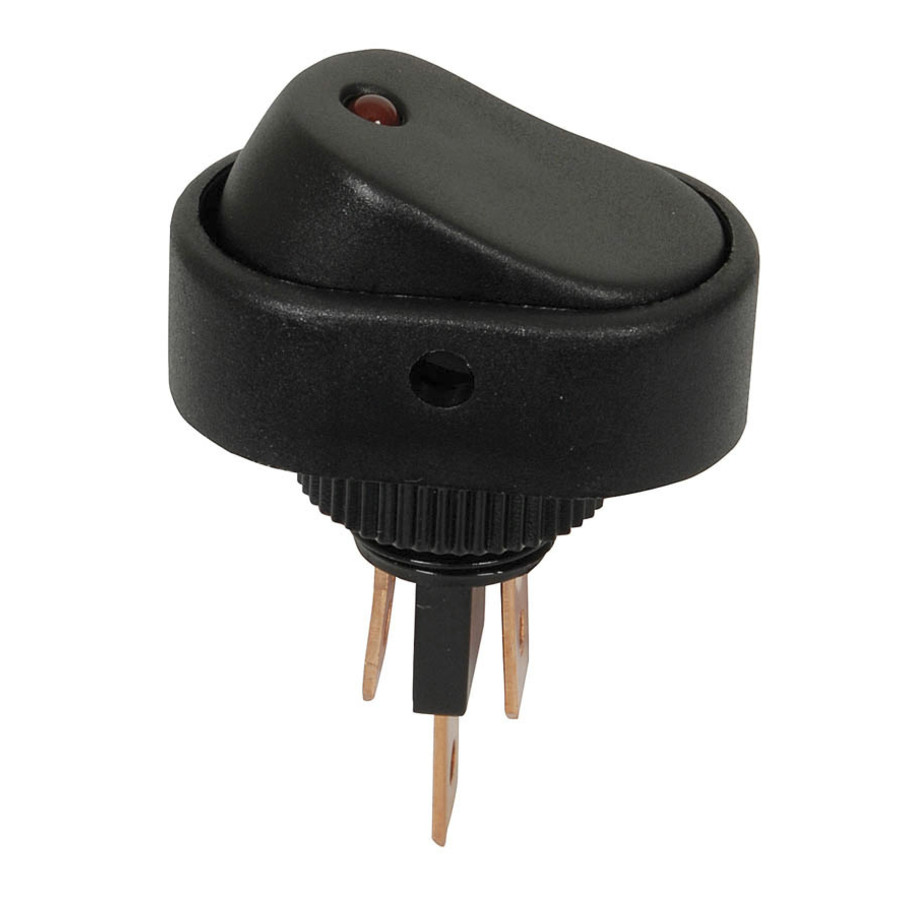

30A 12VDC Red LED Illuminated Rocker Switch
30A 12VDC Red LED Illuminated Rocker Switch

CAT. No. SK0955

30A 12VDC Red LED Illuminated Rocker Switch
product image thumb

30A 12VDC Red LED Illuminated Rocker Switch

$6.95
This is a classy switch. It is a rocker, but only needs a round 12mm hole (with 1mm flat). Its SPST and can handle a massive 30 amps at 12VDC. There i...
Available

Description

This is a classy switch. It is a rocker, but only needs a round 12mm hole (with 1mm flat). Its SPST and can handle a massive 30 amps at 12VDC. There is an LED in the actuator. Cutout 10.5mm.

    Specifications

    Electromechanical Switch

    Switch Function
    		 Locking On/Off
    Pole Throw Type
    		 SPST
    Switch Connection
    		 Spade Terminals
    Switch Type
    		 Rocker
    Poles / Contacts
    		 1 pole
    Throws / Positions
    		 1pos
    Switch Colour Coded
    		 Black
    Actuator Width
    		 19.5mm
    Actuator Length
    		 30mm
    Actuator Height
    		 39mm
    Mechanism Material
    		 Plastic

    Product Mounting

    Round Mount Hole Diameter
    		 12mm
    Mounting Method
    		 Panel

    DC Voltage Rating

    DC Voltage
    		 12V

    DC Current Rating

    DC current rating
    		 30A

    In-built Illumination

    Type
    		 3mm Standard LED
    Illumination Colour
    		 Red
    Connection
    		 Spade Terminals
    Nominal Voltage
    		 9V-12V

    Product Dimensions

    Length
    		 29mm
    Height
    		 45mm
    Width
    		 18mm

    Packaged Dimensions

    Packaged Length
    		 5.5cm
    Packaged Width
    		 4.3cm
    Packaged Weight
    		 0.08kg
    Packaged Volume
    		 0.049665l
    Packaged Height
    		 2.1cm

    Product Availability

    Availability
    		 Stocked item
