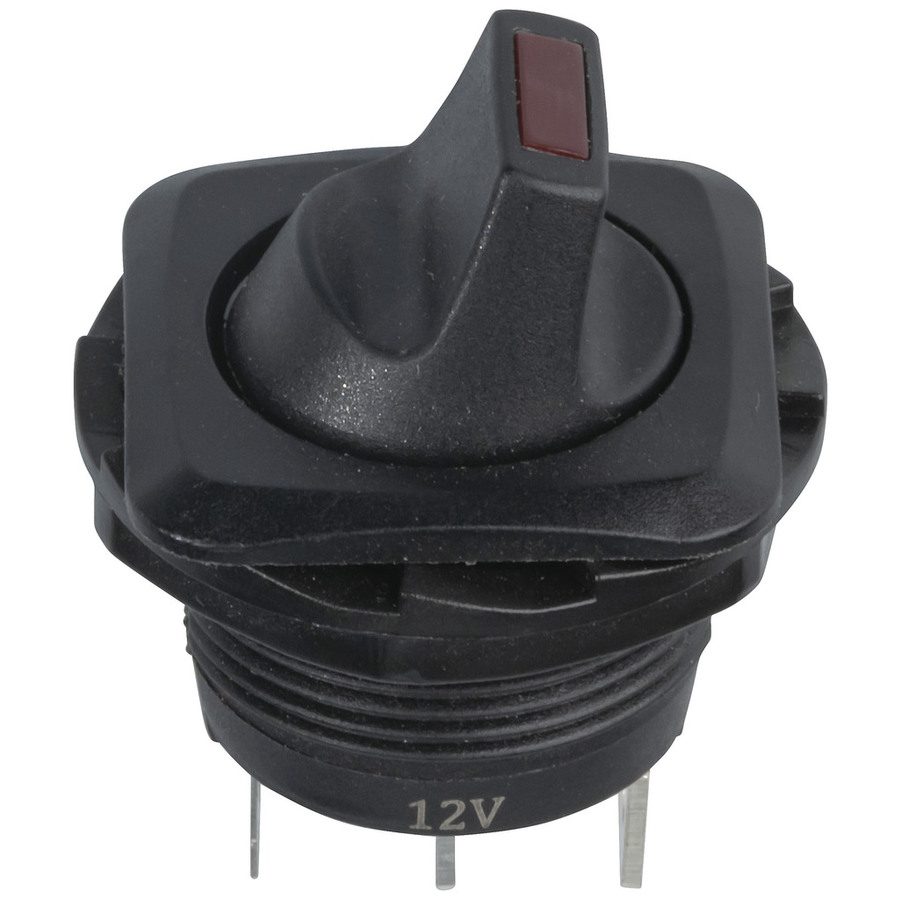

SPST LED Illuminated - Paddle Switch
SPST LED Illuminated - Paddle Switch

CAT. No. SK0964

SPST LED Illuminated - Paddle Switch
product image thumb

SPST LED Illuminated - Paddle Switch

$7.5
Paddle type actuator with built in red LED* Mounts easy in a 20mm hole.* 6 amps @ 250VAC* LED requires 12V @ 20mA* Black body* Q.C. tab termination* S...
Available

Description

Paddle type actuator with built in red LED.

Features:

- Mounts easy in a 20mm hole.
- 6 amps @ 250VAC
- LED requires 12V @ 20mA
- Black body
- Q.C. tab termination
- Solder tabs for LED


    Specifications

    Electromechanical Switch

    Switch Function
    		 Locking On/Off
    Switch Connection
    		 Spade Terminals
    Switch Type
    		 Rocker
    Switch Colour Coded
    		 Black
    Mechanism Material
    		 Plastic

    Product Mounting

    Attachment / Securing Method
    		 Collar / Nut
    Round Mount Hole Diameter
    		 20mm
    Mounting Method
    		 Panel

    AC Voltage Rating

    AC Voltage rating
    		 250V

    AC Current Rating

    AC current rating
    		 10A

    In-built Illumination

    Type
    		 Rectangular LED
    Illumination Colour
    		 Red
    Illumination Position
    		 Top
    Connection
    		 Solder Tags
    Nominal Voltage
    		 12V

    Packaged Dimensions

    Packaged Length
    		 3.5cm
    Packaged Width
    		 2.5cm
    Packaged Weight
    		 0.009kg
    Packaged Volume
    		 0.021875l
    Packaged Height
    		 2.5cm

    Product Availability

    Availability
    		 Stocked item
