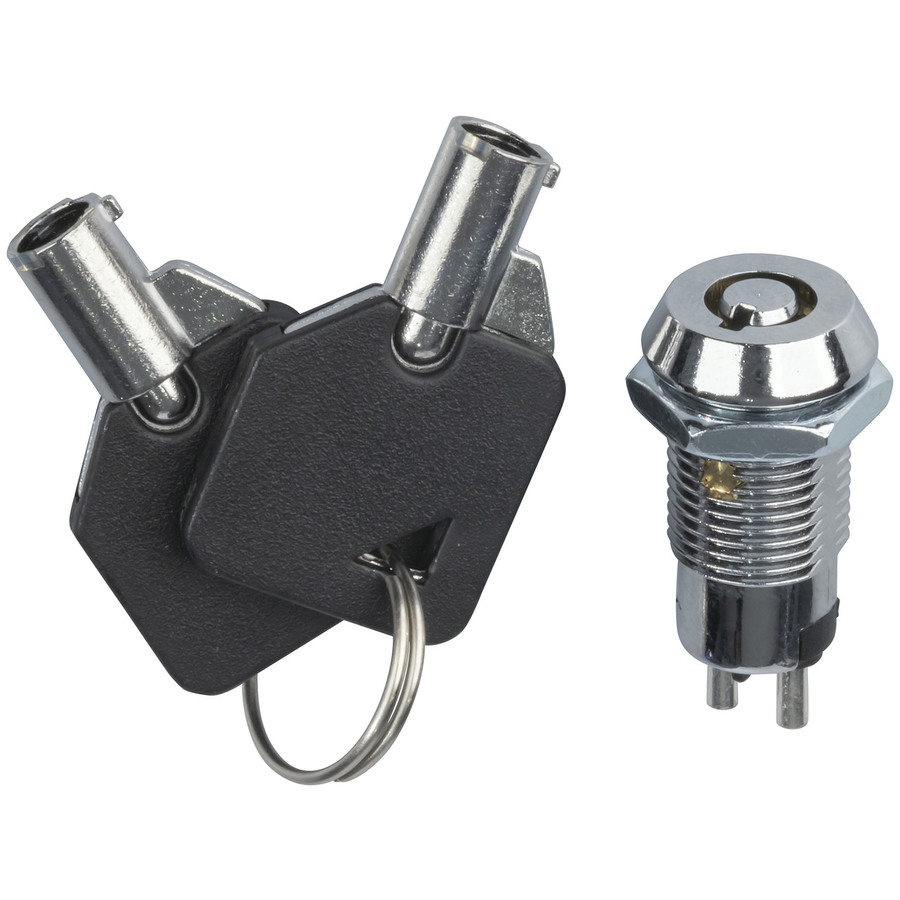

SPST Mini Key Switch Tube Key
SPST Mini Key Switch Tube Key

CAT. No. SM1034

SPST Mini Key Switch Tube Key
product image thumb

SPST Mini Key Switch Tube Key

$12.95
Chrome plated SPST mini key switch features spring return momentary operation and is supplied with two minibarrel key switches. Requires 28mm mounting...
Available

Description

Chrome plated SPST mini key switch features spring return momentary operation and is supplied with two minibarrel key switches. Requires 28mm mounting depth and a panel cutout of 12mm.

    Specifications

    Electromechanical Switch

    Switch Function
    		 Locking On/Off
    Pole Throw Type
    		 SPST
    Switch Connection
    		 Solder Tags
    Switch Type
    		 Key
    Mechanism Material
    		 Metal

    Product Mounting

    Attachment / Securing Method
    		 Collar / Nut
    Round Mount Hole Diameter
    		 12mm
    Mounting Method
    		 Panel

    AC Voltage Rating

    AC Voltage rating
    		 250V, 125V

    AC Current Rating

    AC current rating
    		 0.5A, 1A

    Product Dimensions

    Length
    		 21mm
    Width
    		 16.7mm

    Packaged Dimensions

    Packaged Length
    		 7.3cm
    Packaged Width
    		 5.2cm
    Packaged Weight
    		 0.032kg
    Packaged Volume
    		 0.064532l
    Packaged Height
    		 1.7cm

    Product Availability

    Availability
    		 Stocked item
