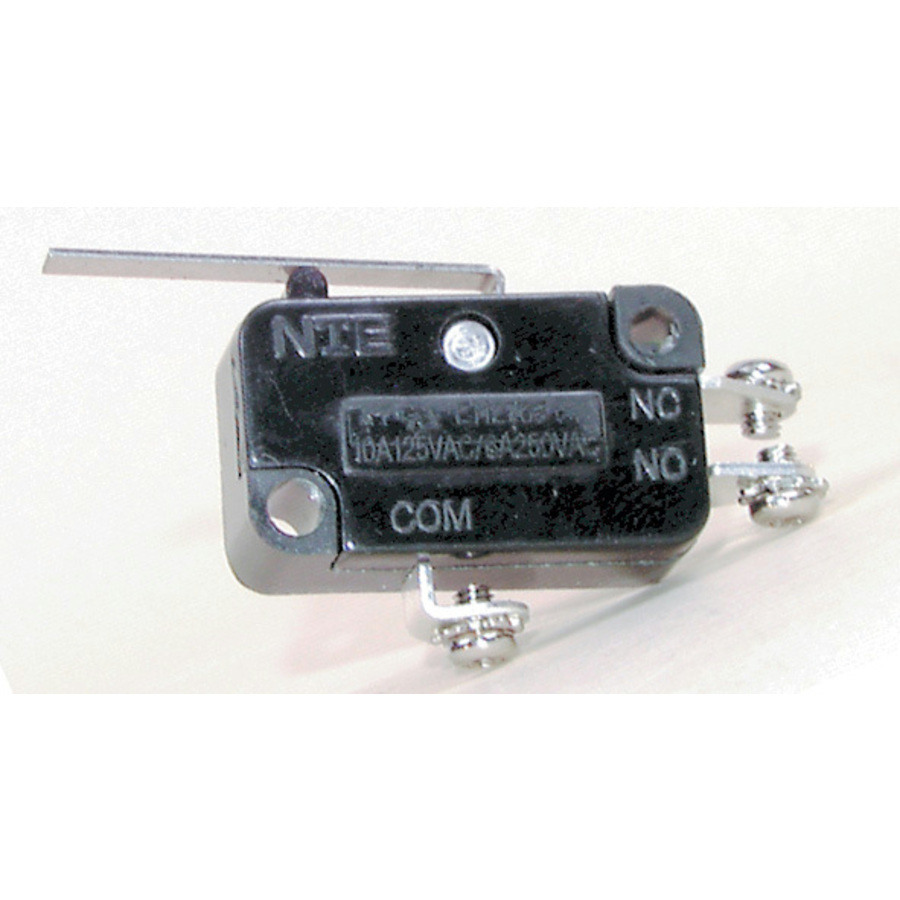

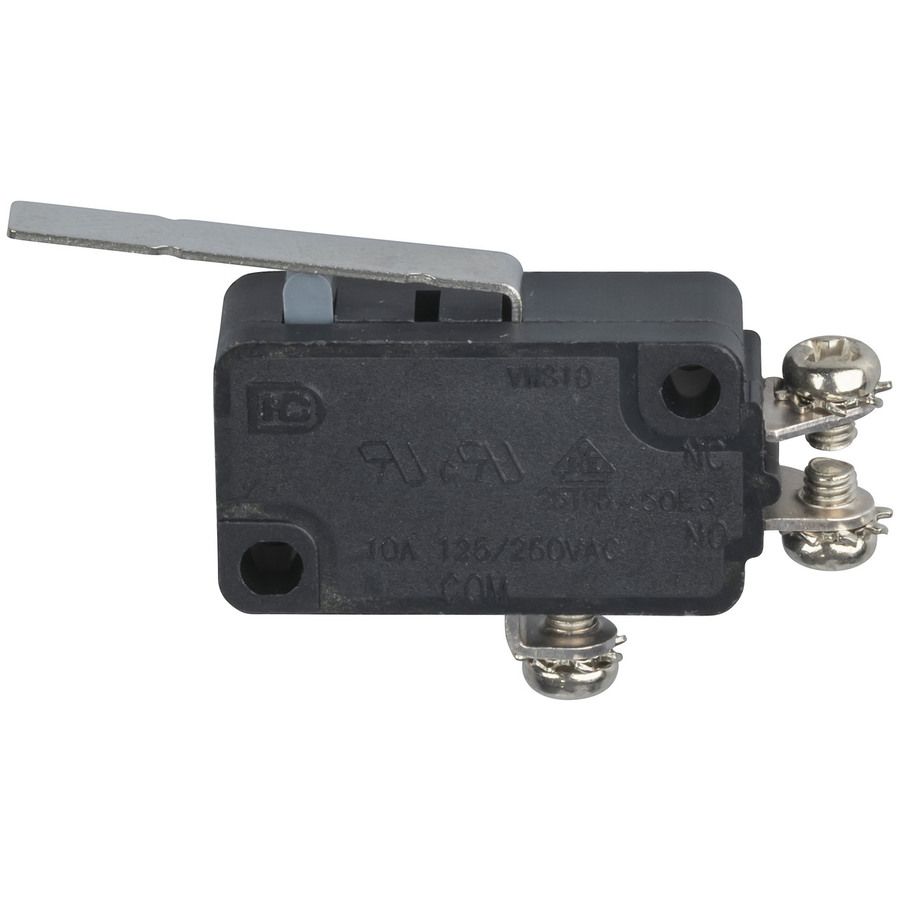

SPDT 250VAC 10A Micro Switch with Lever
SPDT 250VAC 10A Micro Switch with Lever
SPDT 250VAC 10A Micro Switch with Lever
SPDT 250VAC 10A Micro Switch with Lever

CAT. No. SM1040

SPDT 250VAC 10A Micro Switch with Lever
product image thumb
product image thumb
product image thumb

SPDT 250VAC 10A Micro Switch with Lever

$5.25
Standard sized 250V 10A micro switch with lever - Screw terminal connection - Lever arm for easy triggering from actuating mechanism
Available

Description

Can be used for either push on or push off momentary SPDT.


    Specifications

    Electromechanical Switch

    Pole Throw Type
    		 SPDT
    Switch Type
    		 Micro
    Poles / Contacts
    		 1 pole
    Throws / Positions
    		 2pos
    Actuator Length
    		 27mm

    AC Voltage Rating

    AC Voltage rating
    		 240V

    AC Current Rating

    AC current rating
    		 10A

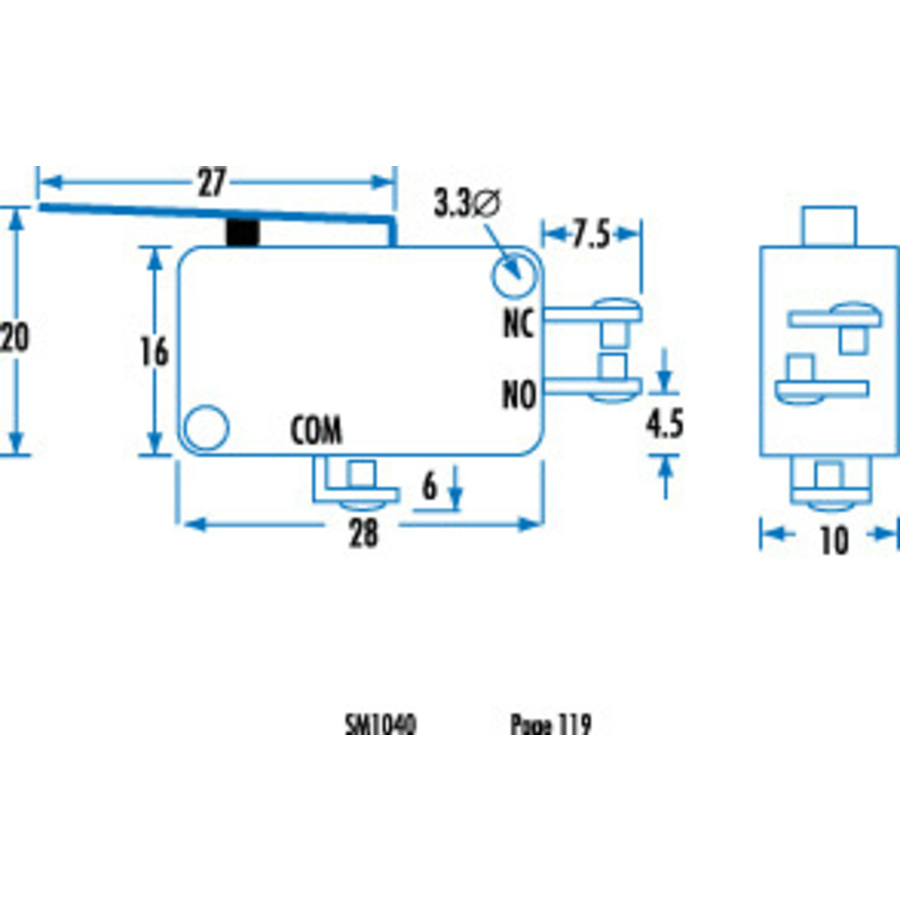

    Product Dimensions

    Length
    		 28mm
    Width
    		 16mm
    Depth
    		 10mm

    Packaged Dimensions

    Packaged Length
    		 3.4cm
    Packaged Width
    		 2.2cm
    Packaged Weight
    		 0.008kg
    Packaged Volume
    		 0.008228l
    Packaged Height
    		 1.1cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

    SM1040-dataSheetMain.pdf
