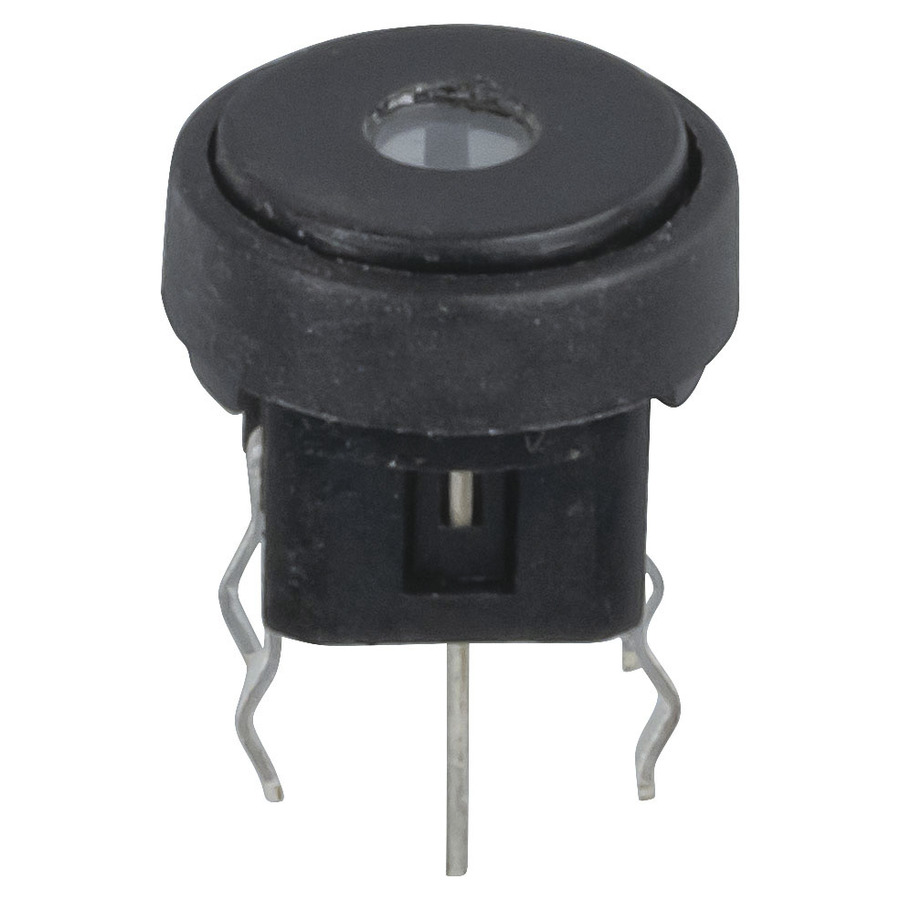

SPST PCB Mount Tactile Switch with Blue LED
SPST PCB Mount Tactile Switch with Blue LED

CAT. No. SP0622

SPST PCB Mount Tactile Switch with Blue LED
product image thumb

SPST PCB Mount Tactile Switch with Blue LED

$4.3
Rating: 12VDC 50mAOperating Temperature: -50 ~ 70 degrees CContact Resistance: 100milliohm max.Insulation Resistance: 100M ohm min at 100VDCWithstand ...
Available

Description

Red LED SPST PCB tactile switch
LED Power Supply: 3.5-4V DC @ 25mA

Orientation Colour Cat #
Vertical Red SP-0620
Vertical Green SP-0621
Vertical Blue SP-0622

    Specifications

    Electromechanical Switch

    Switch Function
    		 Single Action Momentary
    Pole Throw Type
    		 SPST
    Switch Connection
    		 PCB Pins
    Switch Type
    		 Tactile Pushbutton
    Poles / Contacts
    		 4 pole
    Throws / Positions
    		 1pos
    Switch Colour Coded
    		 Blue
    Actuator Width
    		 6.2mm
    Actuator Length
    		 6mm
    Contact Resistance
    		 100m?
    Insulation Resistance
    		 100M?

    Product Mounting

    Mounting Method
    		 PCB

    DC Voltage Rating

    DC Voltage
    		 12V

    DC Current Rating

    DC current rating
    		 50mA

    AC Voltage Rating

    AC Voltage rating
    		 250V

    Packaged Dimensions

    Packaged Length
    		 1cm
    Packaged Width
    		 1cm
    Packaged Weight
    		 0.002kg
    Packaged Volume
    		 0.0015l
    Packaged Height
    		 1.5cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

    SP0622-dataSheetMain.pdf
