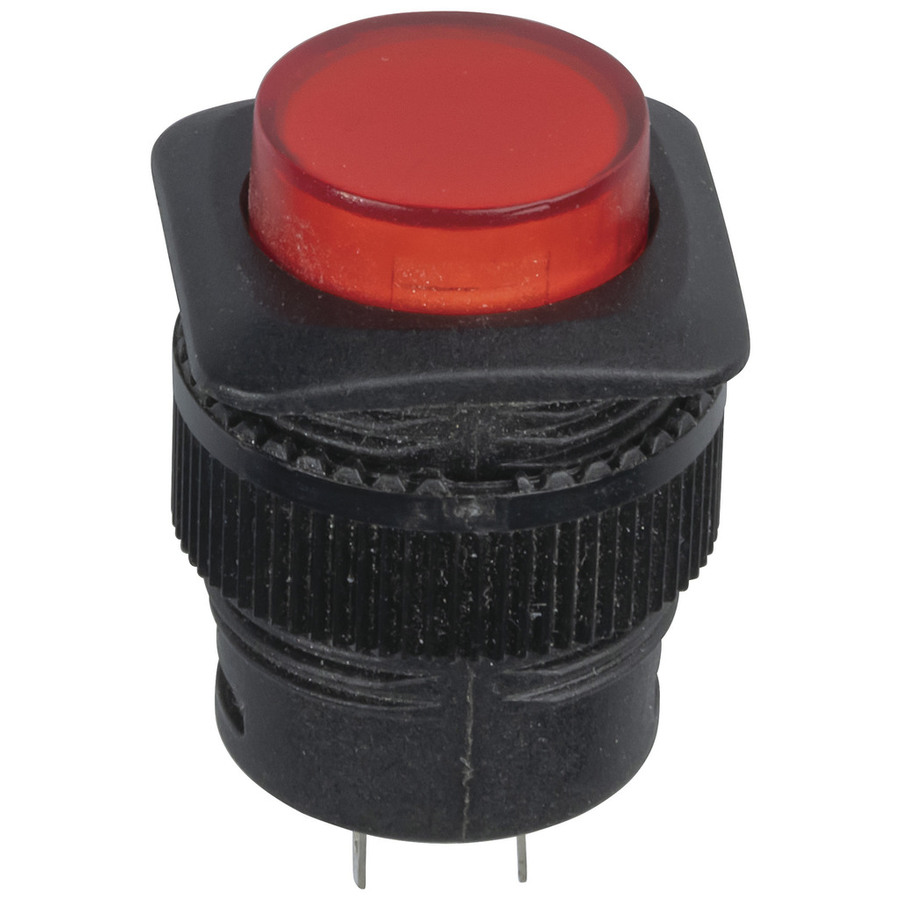

Red LED Illuminated switch
Red LED Illuminated switch

CAT. No. SP0706

Red LED Illuminated switch
product image thumb

Red LED Illuminated switch

$7.95
These short bodied pushbuttons are available 2 ways. Both have red LEDs behind a red diffused actuator. Rated at 1.5A 250VAC. LED needs 2V.Red illumin...
Available

Description

These short bodied pushbuttons are available 2 ways. Both have red LEDs behind a red diffused actuator. LED needs 2V. Red illuminated actuator.

    Specifications

    Electromechanical Switch

    Switch Function
    		 Single Action Momentary
    Pole Throw Type
    		 SPST
    Dielectric Strength
    		 1500V
    Switch Connection
    		 Solder Legs
    Switch Type
    		 Pushbutton
    Poles / Contacts
    		 1 pole
    Throws / Positions
    		 1pos
    Switch Colour Coded
    		 Red
    Contact Resistance
    		 50?
    Insulation Resistance
    		 100?

    Product Mounting

    Mounting Method
    		 Panel

    AC Voltage Rating

    AC Voltage rating
    		 250V

    AC Current Rating

    AC current rating
    		 1.5A

    Product Dimensions

    Length
    		 18mm
    Height
    		 60mm
    Width
    		 18mm
    Diameter
    		 18mm

    Packaged Dimensions

    Packaged Length
    		 11.2cm
    Packaged Width
    		 7cm
    Packaged Weight
    		 0.006kg
    Packaged Volume
    		 0.18032l
    Packaged Height
    		 2.3cm

    In-built Illumination

    Type
    		 5mm Standard LED
    Illumination Colour
    		 Red
    Connection
    		 Solder Legs
    Nominal Voltage
    		 2V

    Product Availability

    Availability
    		 Stocked item

    Downloads

    SP0706-dataSheetMain.pdf
