Foot Switch
Foot Switch

CAT. No. SP0760

Foot Switch
product image thumb

Foot Switch

$29.5

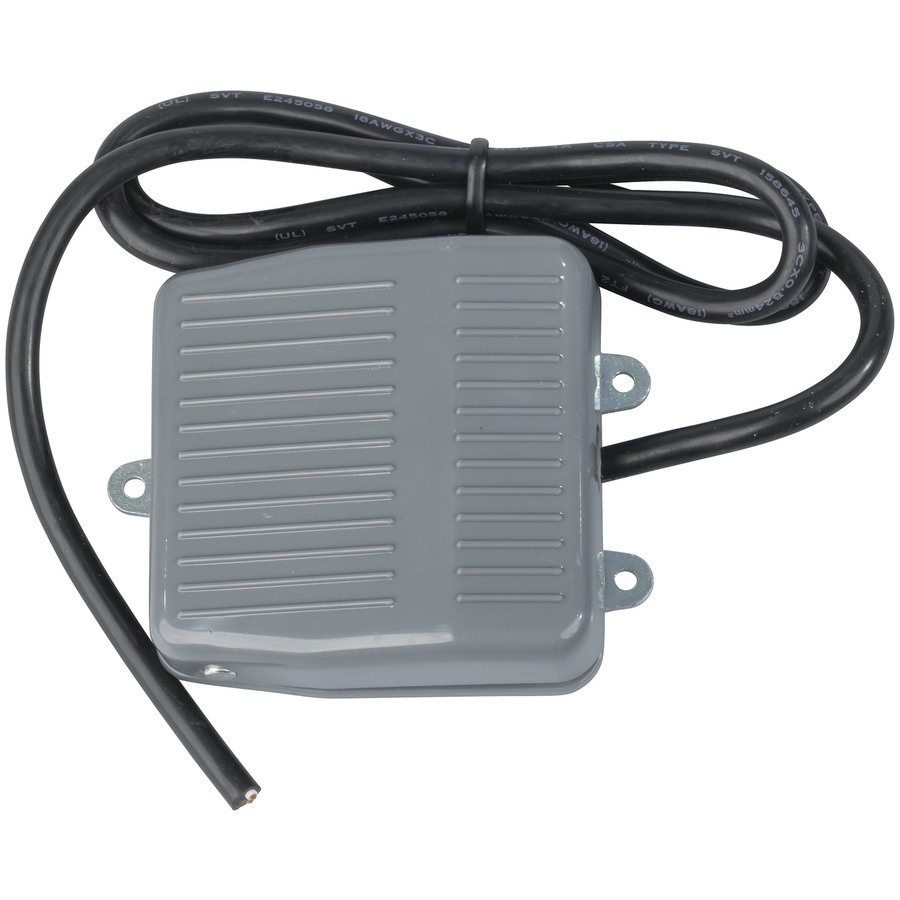

This foot switch is momentary action and can be wired to be either push-on or push-off. The switch is rated at 250V 10 amp.
Available

Description

1 Year Warranty

This foot switch is momentary action and can be wired to be either push-on or push-off. The switch is rated at 250V 10 amp. The switch has a positive switch feel and an audible click when pressed.Could be used in PA applications, dictaphones etc. Colour is grey, cable is 850mm long.

    Specifications

    Electromechanical Switch

    Switch Function
    		 Single Action Momentary
    Switch Connection
    		 Bare Leads
    Switch Type
    		 Foot Pushbutton
    Poles / Contacts
    		 1 pole
    Throws / Positions
    		 1pos

    AC Voltage Rating

    AC Voltage rating
    		 250V

    AC Current Rating

    AC current rating
    		 10A

    Product Dimensions

    Length
    		 80mm
    Width
    		 80mm
    Depth
    		 30mm

    Packaged Dimensions

    Packaged Length
    		 15.4cm
    Packaged Width
    		 9.8cm
    Packaged Weight
    		 0.32kg
    Packaged Volume
    		 0.573496l
    Packaged Height
    		 3.8cm

    Product Availability

    Availability
    		 Stocked item
    Warranty: 12 Months

N/A
