CAT. No. SP0770

12 Key Numeric Keypad
product image thumb
product image thumb

12 Key Numeric Keypad

$12.95
This telephone style keypad has many uses. From hobbyists to security situations. It has 0-9, asterix, # - 3 x 4 way matrix.Specifications:Contact rat...
Available

Description

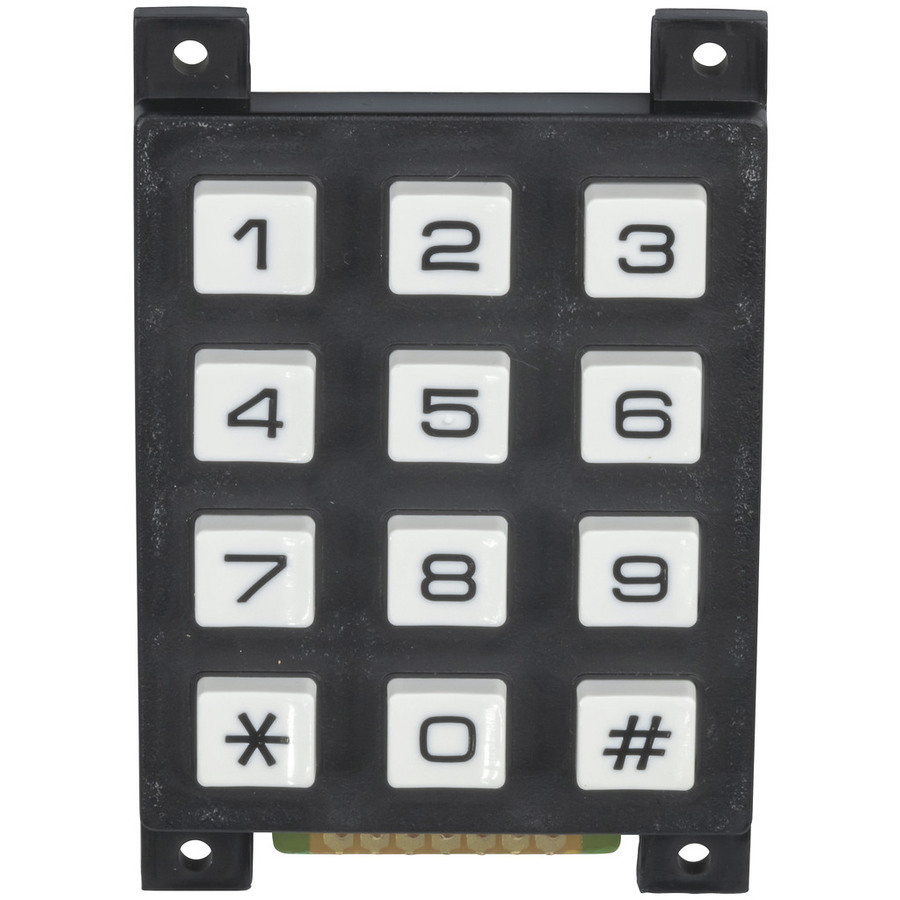

This telephone style keypad has many uses. From hobbyists to security situations. It has 0-9, asterix, # - 3 x 4 way matrix. Made with onductive rubber material, coloured white keys on black background.


    Specifications

    Electromechanical Switch


    Cycle Life
    1000000 cycles
    Switch Type
    Keypad
    Contact Resistance
    200?

    DC Voltage Rating


    DC Voltage
    24V

    DC Current Rating


    DC current rating
    20mA

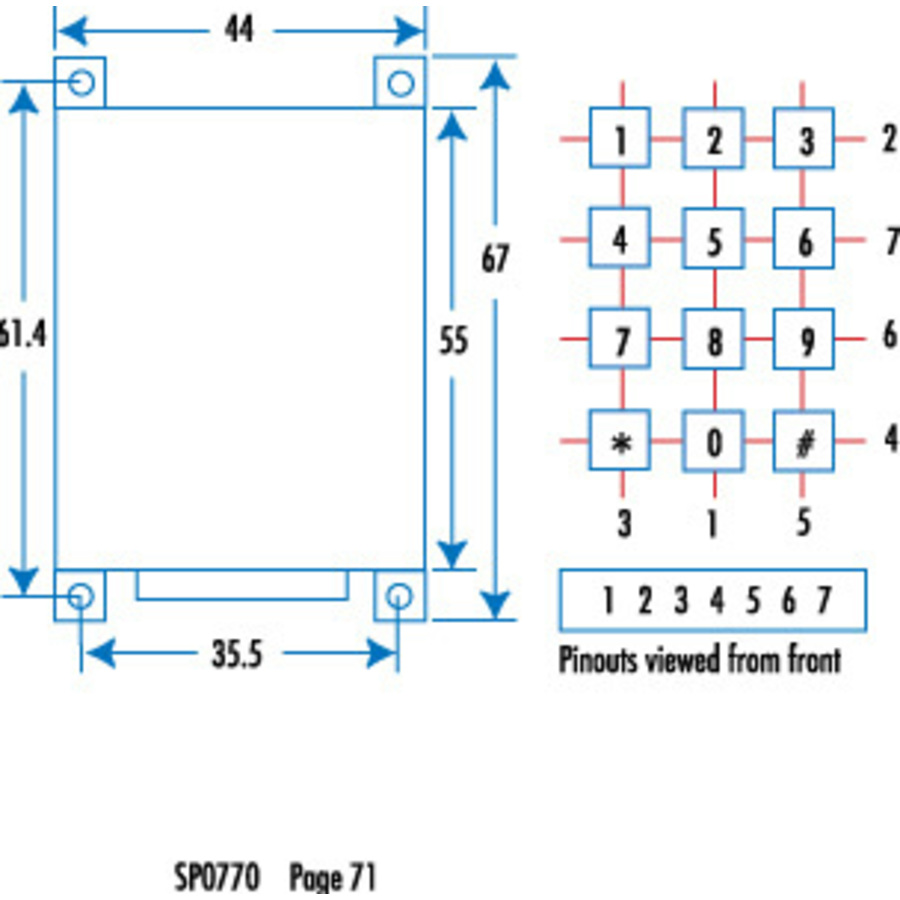

    Product Dimensions


    Height
    54mm
    Width
    44mm
    Depth
    5mm

    Packaged Dimensions


    Packaged Length
    8cm
    Packaged Width
    6.5cm
    Packaged Weight
    0.02kg
    Packaged Volume
    0.0416l
    Packaged Height
    0.8cm

    Product Availability


    Availability
    Stocked item
