Blue 19mm IP67 Metal Pushbutton Momentary Switch with Iluminated Power Indicator
Blue 19mm IP67 Metal Pushbutton Momentary Switch with Iluminated Power Indicator
Blue 19mm IP67 Metal Pushbutton Momentary Switch with Iluminated Power Indicator

CAT. No. SP0810

Blue 19mm IP67 Metal Pushbutton Momentary Switch with Iluminated Power Indicator
product image thumb
product image thumb

Blue 19mm IP67 Metal Pushbutton Momentary Switch with Iluminated Power Indicator

$22.95
From our range of switches available in a variety of styles suitable for your specific purpose.
Available

Description

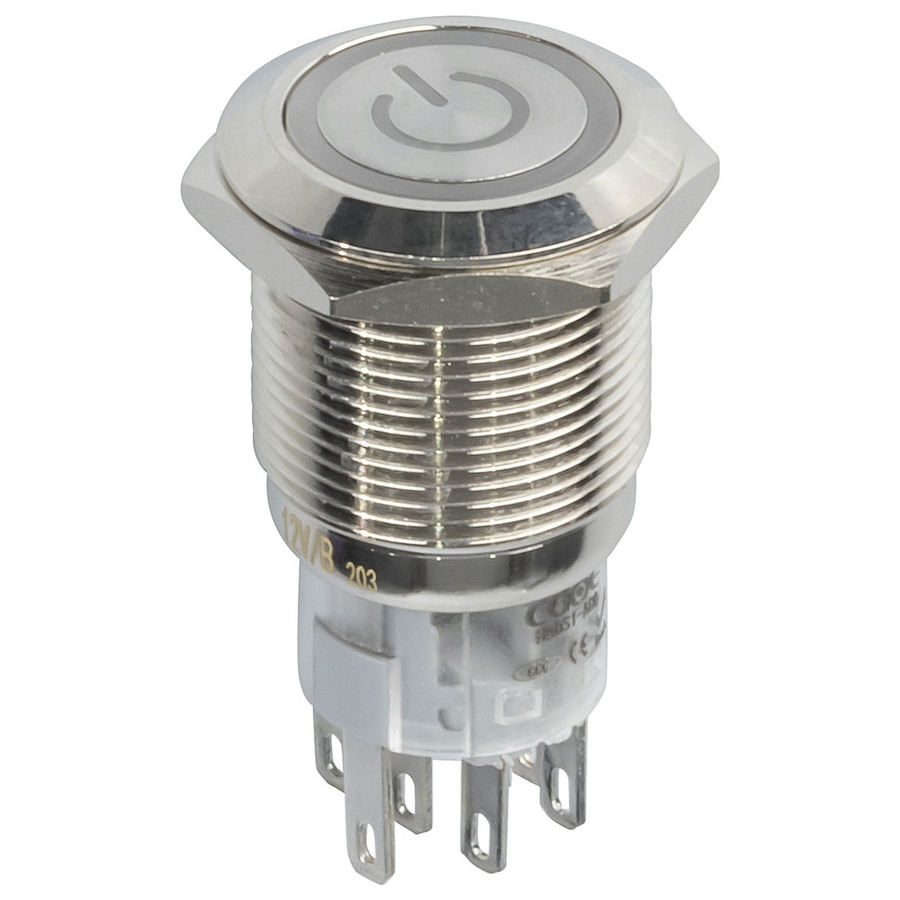

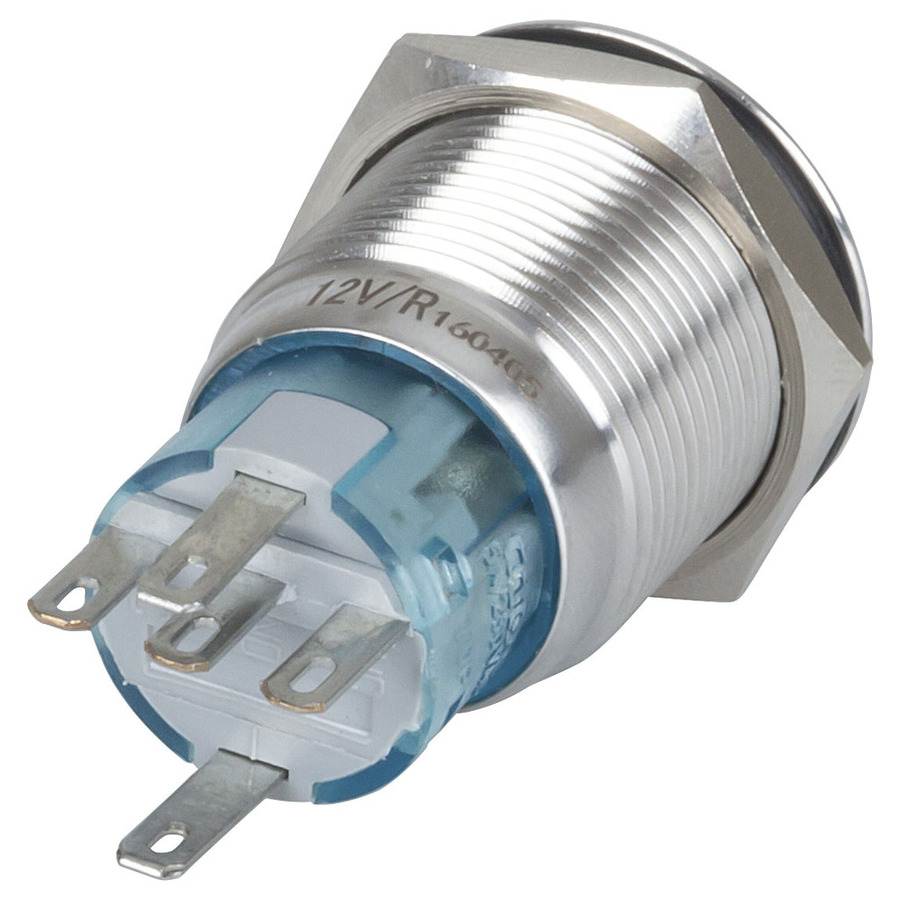

A durable and stylish stainless steel switch with blue LED power indicator.

Features:
• SPDT momentary action
• Dust and waterproof to IP67
• 12V LED illumination
• 22mm mounting hole


    Specifications

    Internal or Sub-part Dimensions

    Dimension details
    		 Mounting Hole
    Diameter
    		 22mm, 23mm

    Electromechanical Switch

    Switch Function
    		 Single Action Momentary
    Pole Throw Type
    		 SPDT
    Switch Connection
    		 Spade Terminals
    Switch Type
    		 Pushbutton
    Poles / Contacts
    		 2 pole
    Throws / Positions
    		 2pos
    Switch Colour Coded
    		 Blue

    AC Voltage Rating

    AC Voltage rating
    		 250V

    AC Current Rating

    AC current rating
    		 5A

    In-built Illumination

    Illumination Colour
    		 Blue
    Connection
    		 Spade Terminals
    Nominal Voltage
    		 12V

    Product Dimensions

    Length
    		 40mm
    Diameter
    		 22mm, 23mm
    Weight
    		 18g

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 5cm
    Packaged Width
    		 4cm
    Packaged Weight
    		 0.02kg
    Packaged Volume
    		 0.04l
    Packaged Height
    		 2cm
