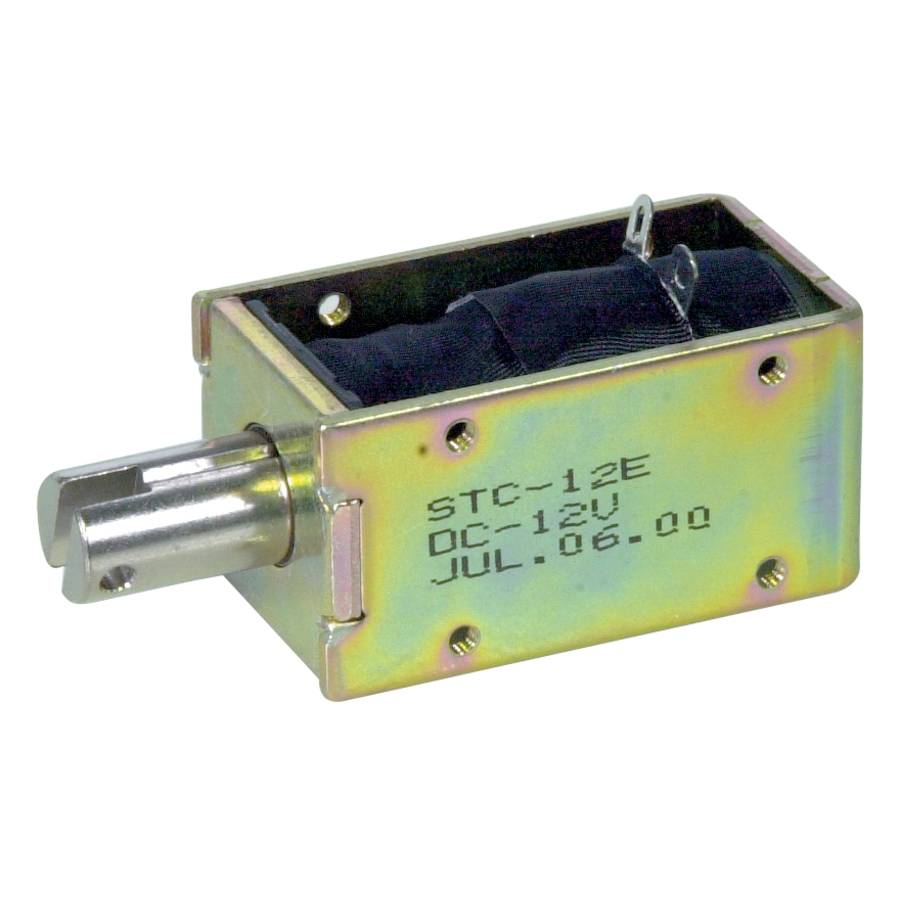

Standard 12V Solenoid
Standard 12V Solenoid

CAT. No. SS0902

Standard 12V Solenoid
product image thumb

Standard 12V Solenoid

$41.5
A solenoid is a device comprised of a coil of wire, the housing and a moveable plunger (armature). More simply, a solenoid converts electrical energy into mechanical work.

Out of Stock

Description

Regular size square frame unit, Pull type, solder tip.

Full data supplied with unit.

    Specifications

    Product Dimensions

    Weight
    		 205g

    Packaged Dimensions

    Packaged Length
    		 6.5cm
    Packaged Width
    		 3cm
    Packaged Weight
    		 0.2kg
    Packaged Volume
    		 0.0585l
    Packaged Height
    		 3cm

    Solenoids

    Solenoid Power Draw
    		 6W
    Solenoid Voltage
    		 12V
    Solenoid Type
    		 Pull
    AC or DC
    		 DC
    Solenoid Stroke
    		 0mm, 10mm
    Solenoid Current
    		 500mA
    coil resistance
    		 24?
    Solenoid Force
    		 110g-1780g

    Product Availability

    Availability
    		 Stocked item

    Downloads

    SS0902-dataSheetMain.pdf
