FEATURES:

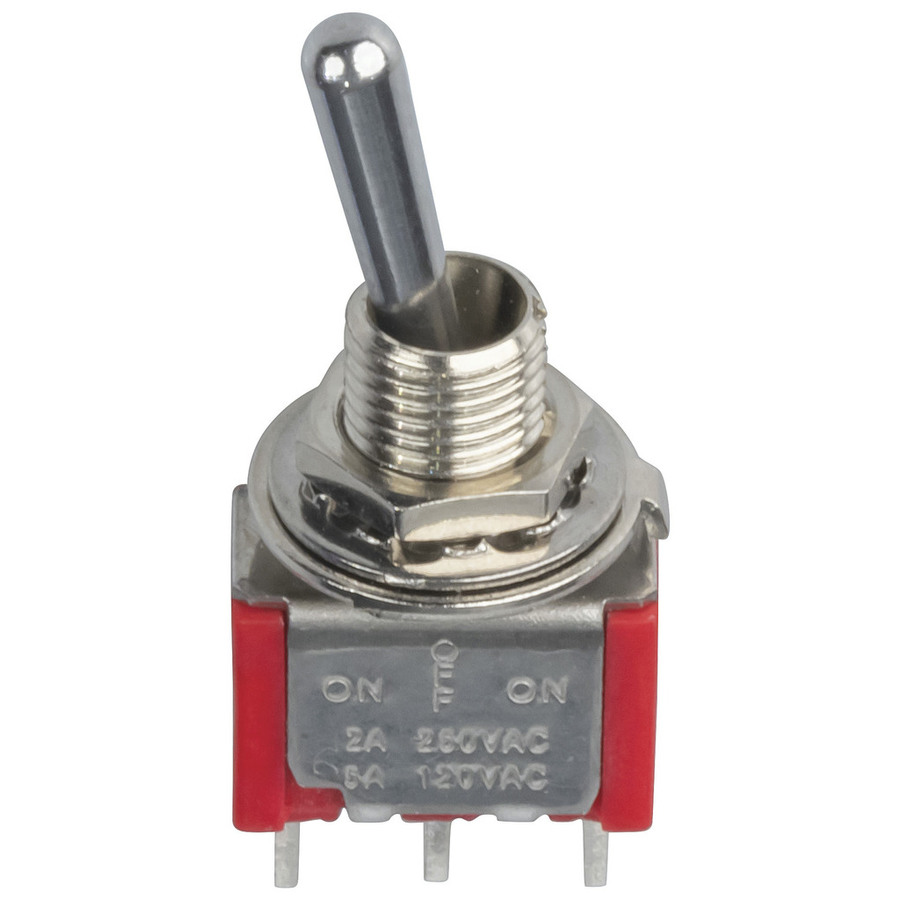

SOLDER TAG WITH THREADED BUSH
Brackets indicate switch position Centre Off (on - off - on)
OPERATING TEMPERATURE:-30 degrees - +85 degrees Celsius
CONTACT RATING (with resistive load) Subminiature: 1 Amp @ 250VAC Miniature: 2 Amps @ 250VAC
CONTACT RATING (with resistive load) Subminiature: 3 Amps @ 28VDC Miniature: 5 Amps @ 28VDC
SWITCH MATERIALS CASE:Diallyl Phthalate (DAP) (UL94V-0)
TOGGLE HANDLE:Brass, chrome plated
BUSHING:Brass, nickel-plated
HOUSING:Stainless Steel
TERMINALS:Switch support components: Brass, electro-tin plated (for solderability)
CONTACTS:Fixed and moving, Silver-plated over copper alloy (standard);Fixed and moving, gold plated over nickel-plated alloy.
