DPDT Miniature Toggle Switch - Solder Tag
DPDT Miniature Toggle Switch - Solder Tag

CAT. No. ST0355

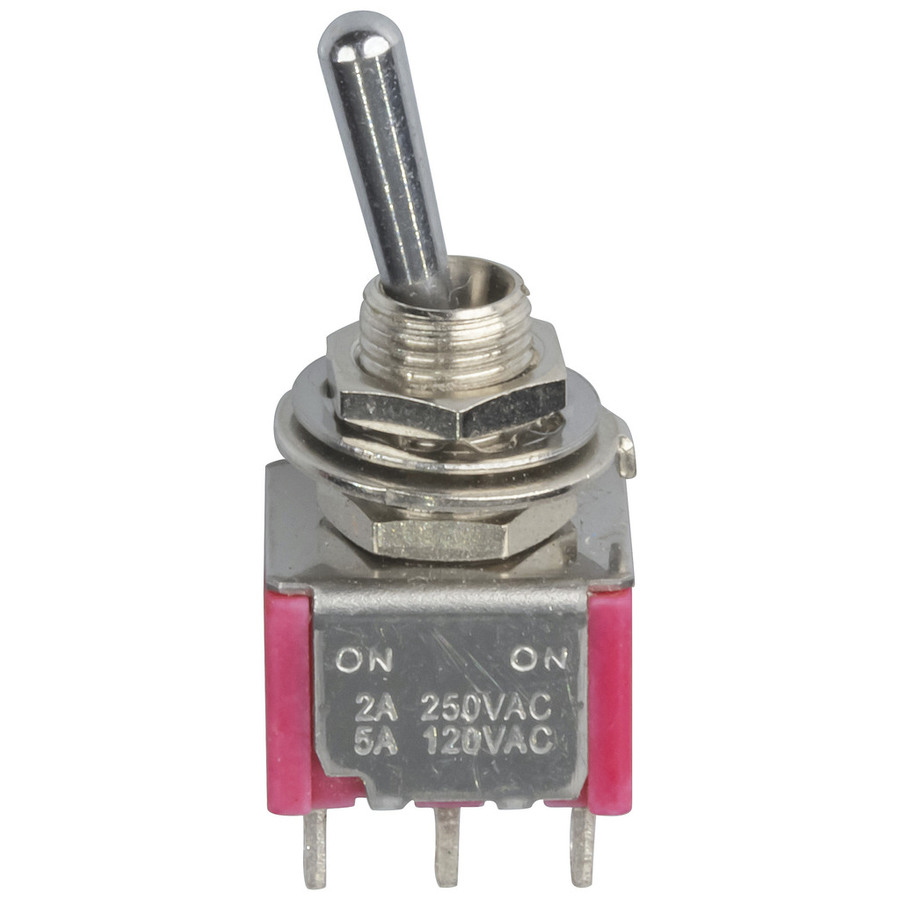

DPDT Miniature Toggle Switch - Solder Tag
product image thumb

DPDT Miniature Toggle Switch - Solder Tag

$4.6
From our range of switches available in a variety of styles suitable for your specific purpose.
Available

Description

FEATURES:

SOLDER TAG WITH THREADED BUSH
Brackets indicate switch position (on - on)
OPERATING TEMPERATURE:-30 degrees - +85 degrees Celsius
CONTACT RATING (with resistive load) Subminiature: 1 Amp @ 250VAC Miniature: 2 Amps @ 250VAC
CONTACT RATING (with resistive load) Subminiature: 3 Amps @ 28VDC Miniature: 5 Amps @ 28VDC
SWITCH MATERIALS CASE:Diallyl Phthalate (DAP) (UL94V-0)
TOGGLE HANDLE:Brass, chrome plated
BUSHING:Brass, nickel-plated
HOUSING:Stainless Steel
TERMINALS:Switch support components: Brass, electro-tin plated (for solderability)
CONTACTS:Fixed and moving, Silver-plated over copper alloy (standard);Fixed and moving, gold plated over nickel-plated alloy.


    Specifications

    Electromechanical Switch

    Cycle Life
    		 30000 cycles
    Dielectric Strength
    		 1000V
    Switch Connection
    		 Solder Tags
    Switch Type
    		 Toggle
    Poles / Contacts
    		 2 pole
    Throws / Positions
    		 1pos
    Actuator Width
    		 11.43mm
    Actuator Length
    		 12.7mm
    Contact Resistance
    		 20M?
    Insulation Resistance
    		 1000M?
    Centre Off

    Product Mounting

    Mounting Method
    		 Behind Panel

    DC Voltage Rating

    DC Voltage
    		 28V

    DC Current Rating

    DC current rating
    		 3A

    AC Voltage Rating

    AC Voltage rating
    		 250V

    AC Current Rating

    AC current rating
    		 1A

    Packaged Dimensions

    Packaged Length
    		 3cm
    Packaged Width
    		 1.3cm
    Packaged Weight
    		 0.006kg
    Packaged Volume
    		 0.00507l
    Packaged Height
    		 1.3cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

    ST0355-dataSheetMain.pdf
