90oC Thermal Circuit BreakerSwitch
90oC Thermal Circuit BreakerSwitch

CAT. No. ST3825

90oC Thermal Circuit BreakerSwitch

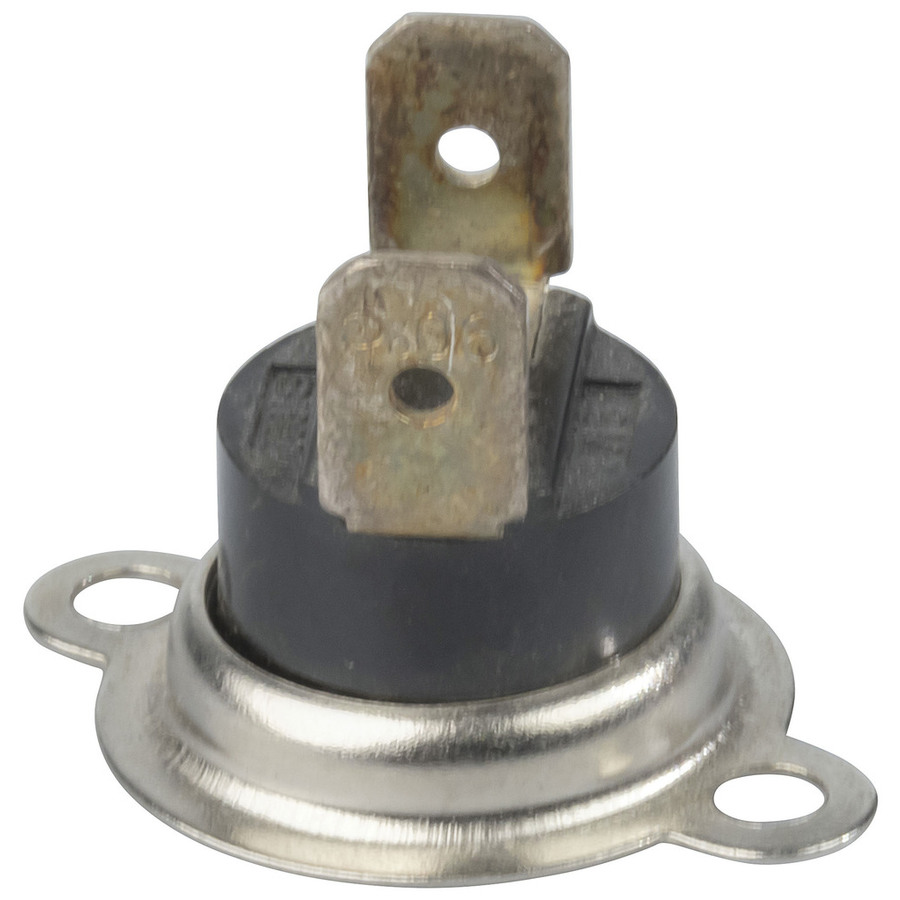

product image thumb

90oC Thermal Circuit BreakerSwitch

$7.5
Also referred to as a thermostat, this safety device will protect a circuit against overheating by opening at a targeted threshold. It closes again automatically once a specific lower temperature is reached. Rated to 90 degrees celcius.
Available

Description

This phenolic-housed thermostat attaches to any metal surface which needs to be heat monitored. When the surface meets or exceeds a certain temperature the SPST bi-metalic element goes open circuit.

    Specifications

    Product Dimensions

    Length
    		 21.2mm
    Diameter
    		 30.3mm

    Packaged Dimensions

    Packaged Length
    		 2.5cm
    Packaged Width
    		 3cm
    Packaged Weight
    		 0.006kg
    Packaged Volume
    		 0.0225l
    Packaged Height
    		 3cm

    Thermal Switches and Fuses

    Type of thermal switch or fuse
    		 Thermal circuit breaker
    Thermal trip temperature
    		 90°C
    Thermal reset method
    		 Automatic
    Thermal reset temp
    		 75°C
    operation cycles
    		 50000, 100000, 30000
    operating tolerance
    		 +/- 5°C (32VDC), +/- 8°C (125VAC), +/-10°C (250VAC)
    reset differential
    		 10°C - 50°C
    contact endurance
    		 32VDC-100mA, 125VAC-10A, 250VAC-6A

    Product Availability

    Availability
    		 Stocked item
