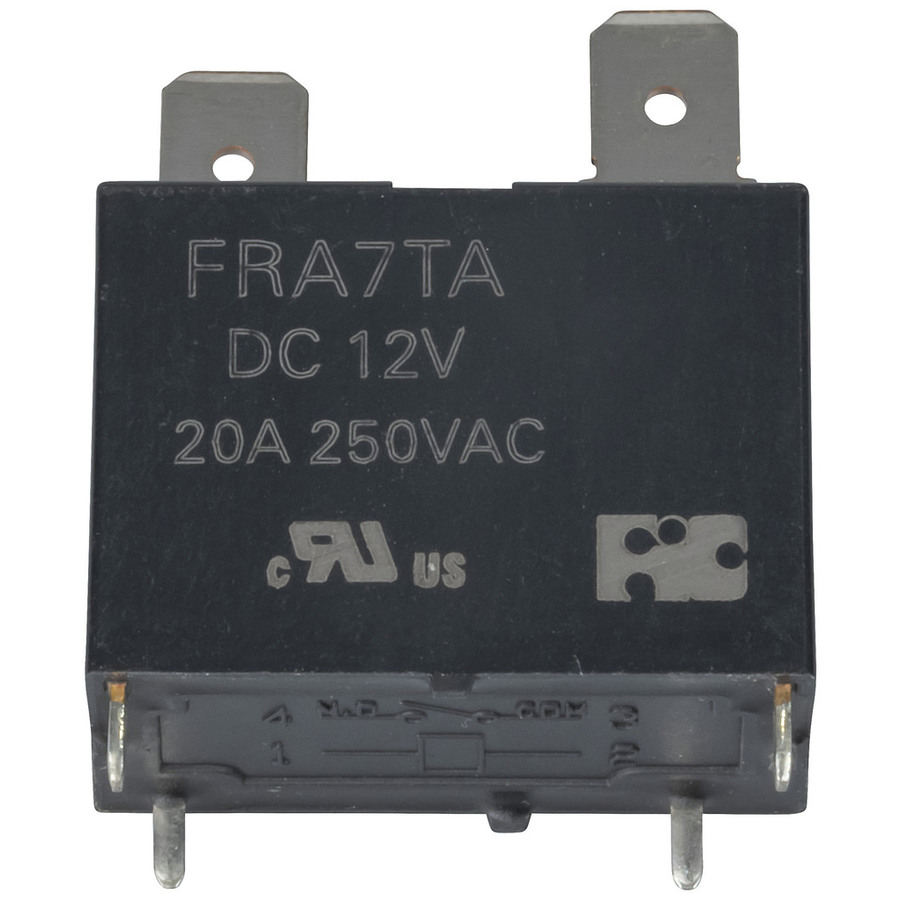

20A 12V SPST PCB Mount Relay
20A 12V SPST PCB Mount Relay
20A 12V SPST PCB Mount Relay

CAT. No. SY4029

20A 12V SPST PCB Mount Relay
product image thumb
product image thumb

20A 12V SPST PCB Mount Relay

$8.95
PCB mounting 12V relay with QC lug terminals.Coil voltage: 12VDCCoil current: 44mACoil resistance: 275 ohmsContacts: SPSTContact current: 20A @ 24VDC,...
Available

Description

PCB mounting 12V relay with QC lug terminals.

Contact current: 20A @ 24VDC, 20A @250VAC max


    Specifications

    Relay

    Input
    		 DC or AC Dual Mode
    DC Switching Current (Opening)
    		 20A
    Coil Current
    		 44mA
    Nominal Voltage
    		 12V
    DC Contact Voltage
    		 12V
    Contact format
    		 SPST
    Coil Resistance
    		 275?
    AC Contact Voltage
    		 250V

    Power Source Details

    DC Voltage
    		 12V
    DC Current Draw
    		 20A
    AC Voltage
    		 250V

    Product Mounting

    Mounting Method
    		 PCB

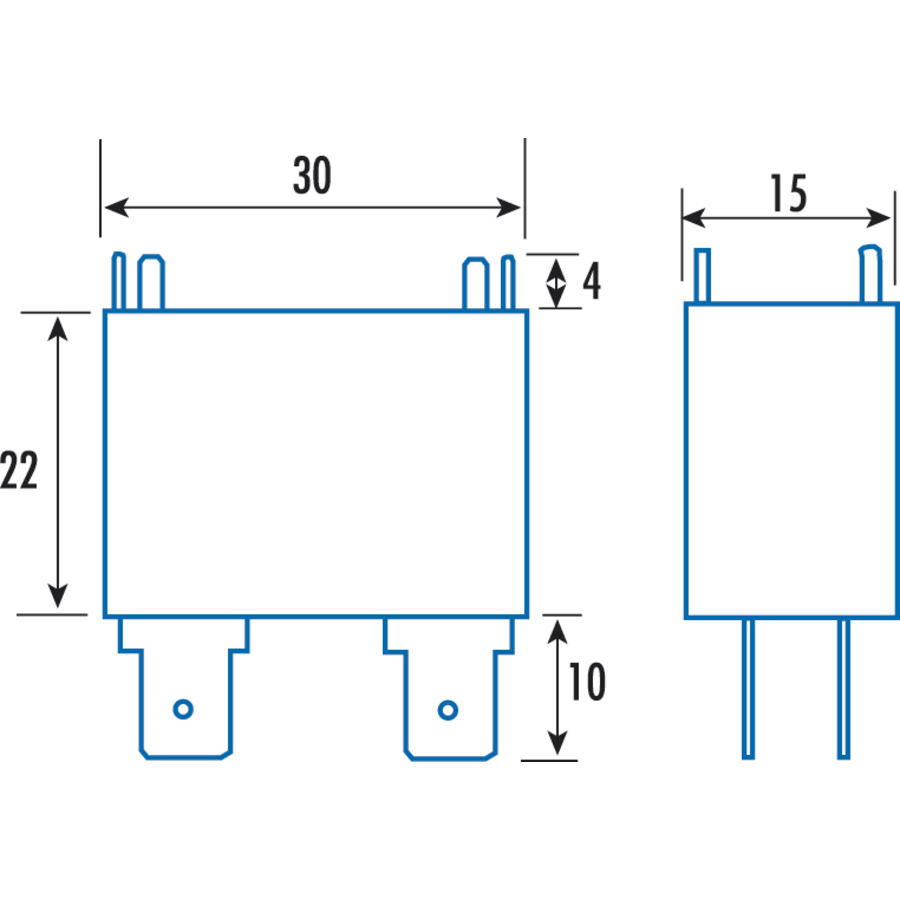

    Product Dimensions

    Length
    		 30mm
    Height
    		 15mm
    Width
    		 22mm

    Packaged Dimensions

    Packaged Length
    		 3cm
    Packaged Width
    		 1.5cm
    Packaged Weight
    		 0.021kg
    Packaged Volume
    		 0.01575l
    Packaged Height
    		 3.5cm

    Product Availability

    Availability
    		 Stocked item
