5 Volt SPST DIL Reed Relay
5 Volt SPST DIL Reed Relay

CAT. No. SY4030

5 Volt SPST DIL Reed Relay

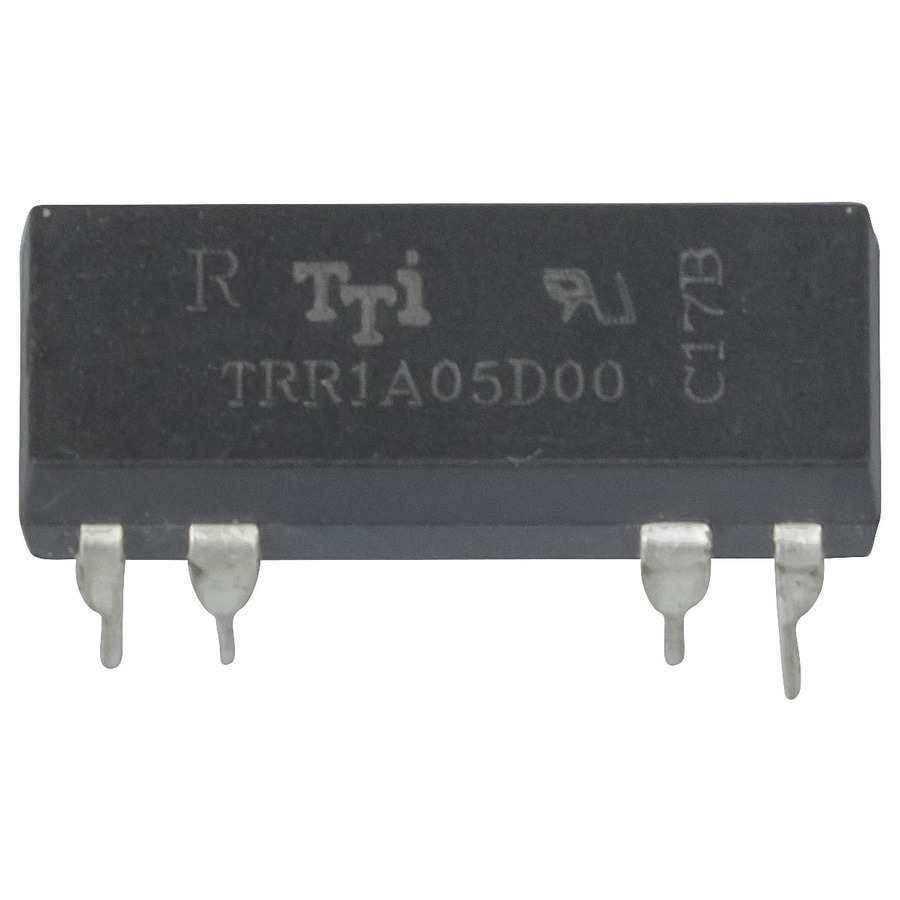

product image thumb

5 Volt SPST DIL Reed Relay

$5.85
They will fit into a 14 pin IC socket, are highly sensitive and can be driven by TTL, etc. SPST normally open. Nominal Voltage: 5VCoil Resistance: 500...
Available

Description

They will fit into a 14 pin IC socket, are highly sensitive and can be driven by TTL, etc. SPST normally open.

Features:

- Must Op: 3.75VDC
- Must Release: 0.8VDC
- Contact Voltage: 18max


    Specifications

    Relay

    Input
    		 DC
    Coil Current
    		 10mA
    Nominal Voltage
    		 5V
    Device Type
    		 Reed Relay
    DC Contact Voltage
    		 5V
    Contact format
    		 SPST
    Coil Resistance
    		 500?
    Pickup Voltage
    		 3.75V
    Dropout Voltage
    		 0.8V

    Power Source Details

    DC Voltage
    		 5V

    Product Mounting

    Mounting Method
    		 PCB

    Product Dimensions

    Length
    		 19.5mm
    Height
    		 9.8mm
    Width
    		 10.2mm

    Packaged Dimensions

    Packaged Length
    		 1.8cm
    Packaged Width
    		 0.9cm
    Packaged Weight
    		 0.002kg
    Packaged Volume
    		 0.00113l
    Packaged Height
    		 0.7cm

    Product Availability

    Availability
    		 Stocked item
