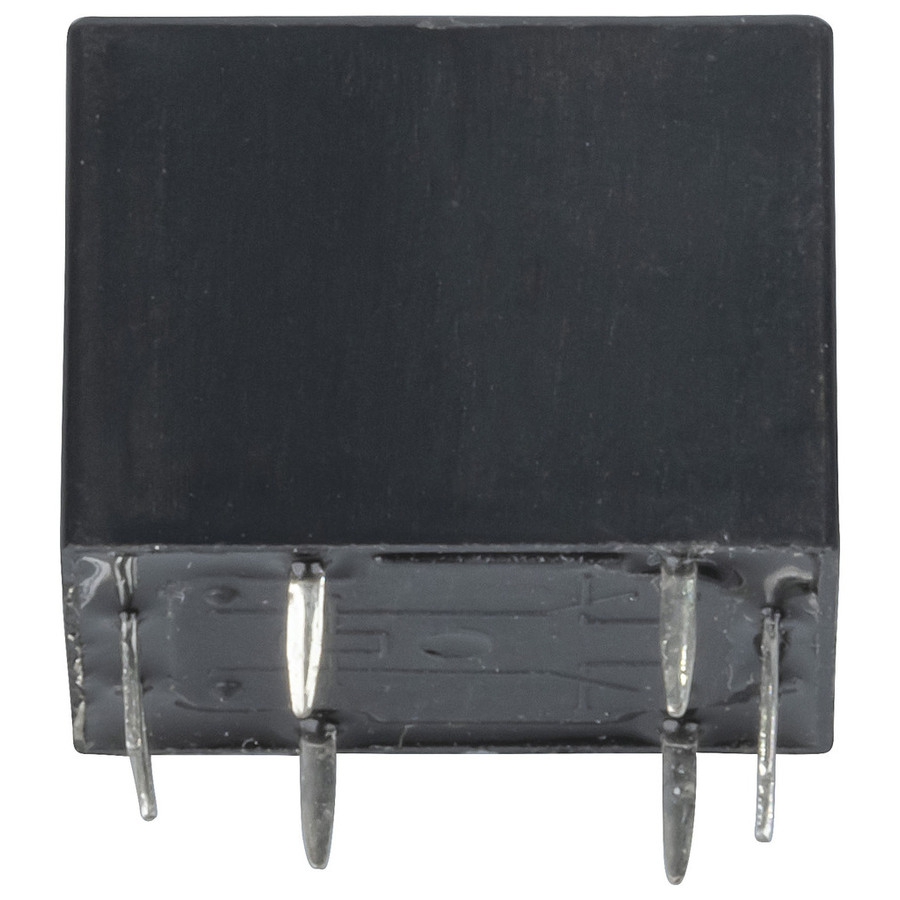

12V DPDT 5A Mini Relay
12V DPDT 5A Mini Relay
12V DPDT 5A Mini Relay

CAT. No. SY4062

12V DPDT 5A Mini Relay
product image thumb
product image thumb

12V DPDT 5A Mini Relay

$6.95
- Extra heavy duty mini relay- Rated voltage - 12V DC- Coil current - 30mA- Coil resistance - 400ohms- Contact rating - 5 Amp- Power consumption - 360...

Out of Stock

Description

- Extra heavy duty mini relay
- NO/NC contacts.

    Specifications

    Relay

    Input
    		 DC
    DC Switching Current (Opening)
    		 5A
    Coil Current
    		 30mA
    DC Contact Voltage
    		 12V
    Contact format
    		 DPDT
    Coil Resistance
    		 400?
    Power Consumption
    		 360mW

    Power Source Details

    DC Voltage
    		 12V
    DC Current Draw
    		 5A

    Product Mounting

    Mounting Method
    		 PCB

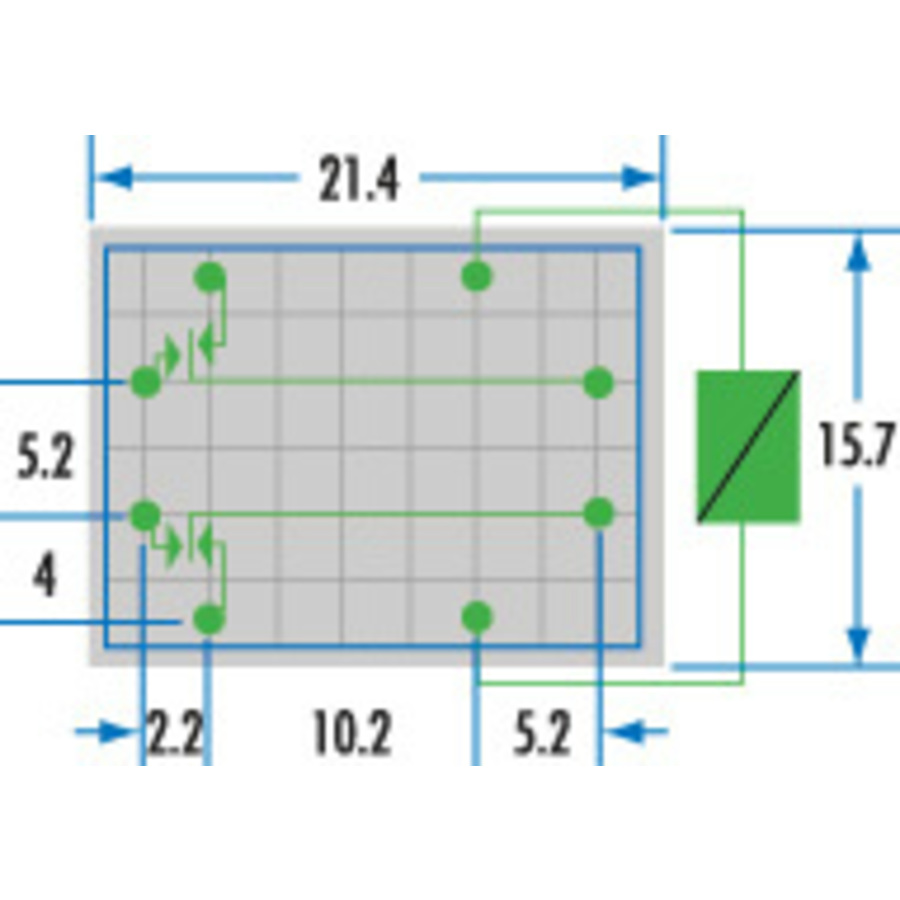

    Product Dimensions

    Length
    		 30mm
    Height
    		 15mm
    Width
    		 22mm

    Packaged Dimensions

    Packaged Length
    		 2cm
    Packaged Width
    		 1.5cm
    Packaged Weight
    		 0.01kg
    Packaged Volume
    		 0.006l
    Packaged Height
    		 2cm

    Product Availability

    Availability
    		 Stocked item
