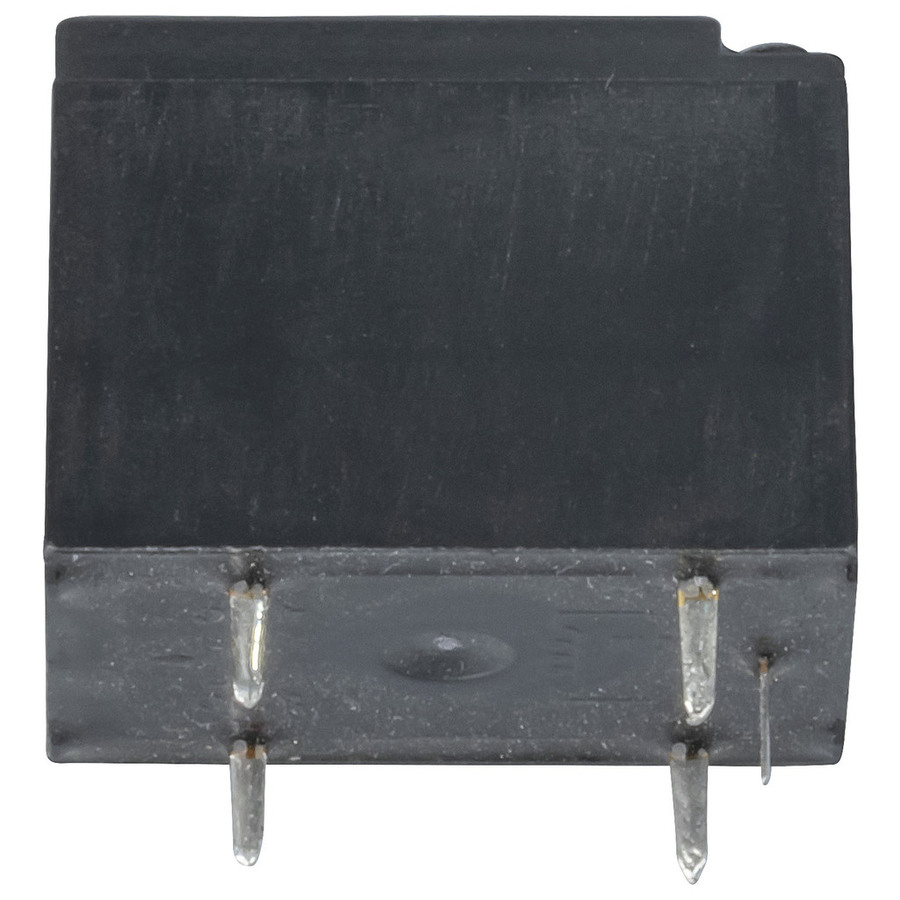

12V SPDT 10A Relay
12V SPDT 10A Relay
12V SPDT 10A Relay

CAT. No. SY4066

12V SPDT 10A Relay
product image thumb
product image thumb

12V SPDT 10A Relay

$4.95
- Rated voltage - 12V DC- Coil current - 30mA- Coil resistance - 400ohms- Contact rating - 3 Amp- Size - 18 x 15 x 14(H)mm- NO/NC contacts...

Out of Stock

Description

- Rated voltage - 12V DC- Coil current - 30mA- Coil resistance - 400ohms- Contact rating - 10 Amp- Size - 18 x 15 x 14(H)mm- NO/NC contacts.

    Specifications

    Relay

    Input
    		 DC
    DC Switching Current (Opening)
    		 3A
    Coil Current
    		 30mA
    DC Contact Voltage
    		 12V
    Contact format
    		 SPDT
    Coil Resistance
    		 400?

    Power Source Details

    DC Voltage
    		 12V
    DC Current Draw
    		 3A

    Product Mounting

    Mounting Method
    		 PCB

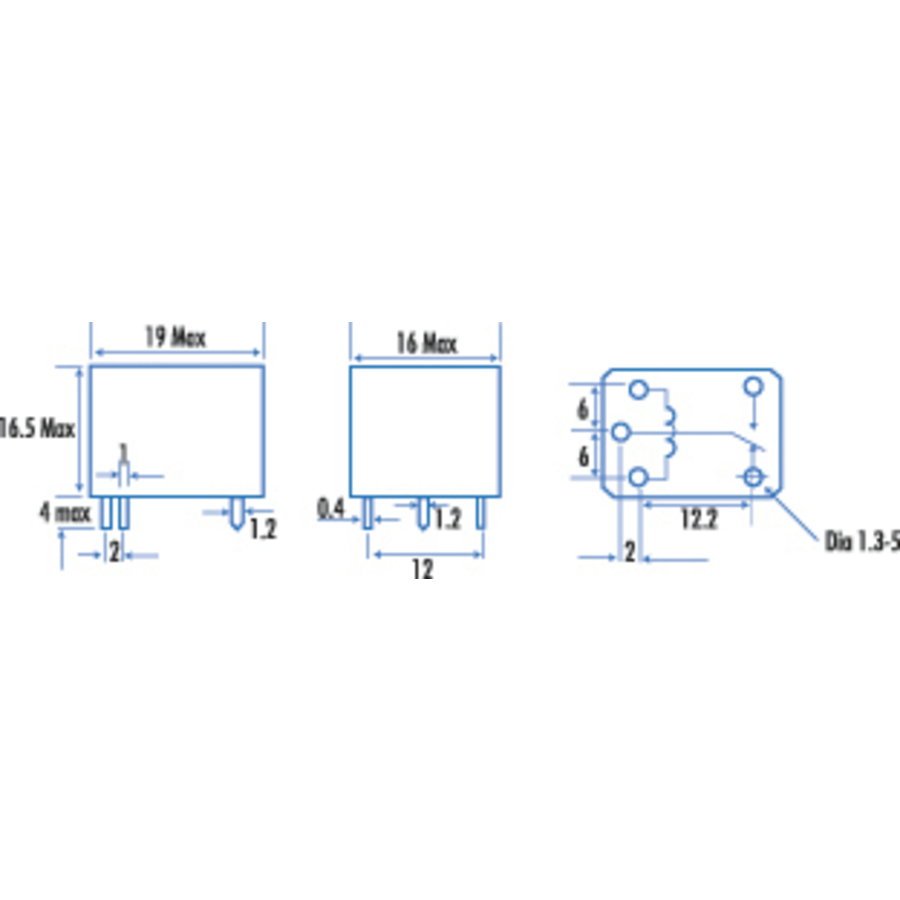

    Product Dimensions

    Height
    		 14mm

    Packaged Dimensions

    Packaged Length
    		 1.8cm
    Packaged Width
    		 1.5cm
    Packaged Weight
    		 0.005kg
    Packaged Volume
    		 0.00378l
    Packaged Height
    		 1.4cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

    SY4066-dataSheetMain.pdf
