Horn Relay - 60A SPDT
Horn Relay - 60A SPDT

CAT. No. SY4074

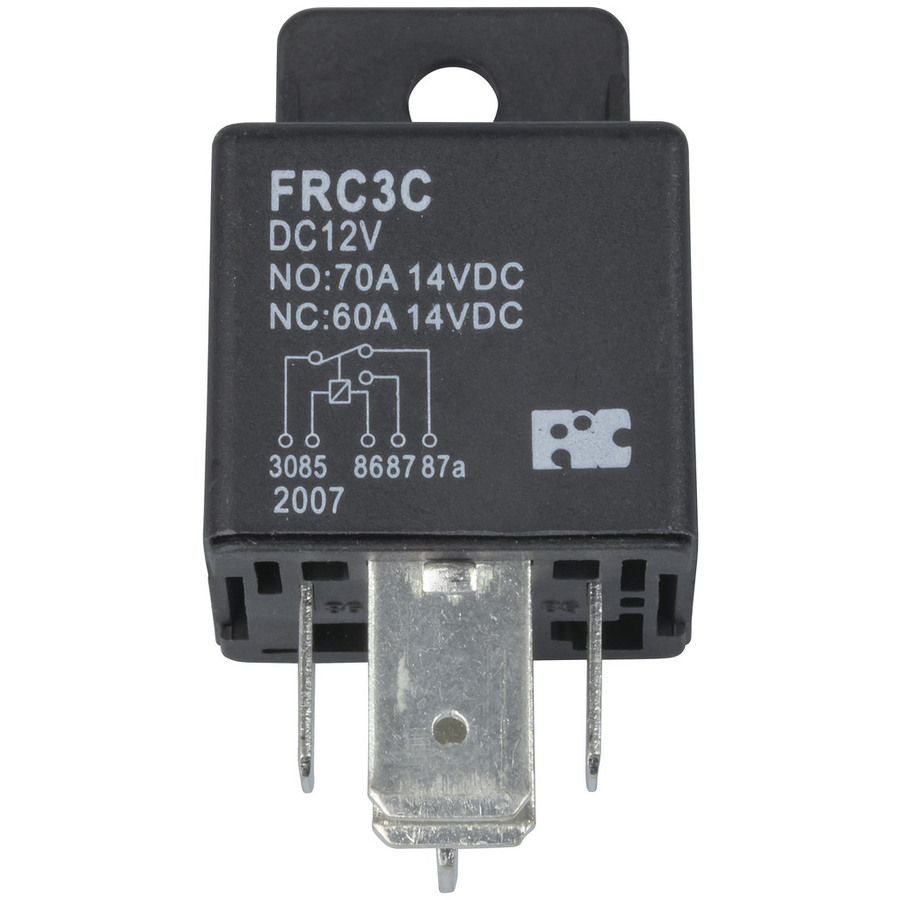

Horn Relay - 60A SPDT
product image thumb

Horn Relay - 60A SPDT

$16.95
Whilst designed for auto horns, this relay is ideal for any high current application i.e. burglar alarms, ignition cutout, transmitters, car spotlight...
Available

Description

Whilst designed for auto horns, this relay is ideal for any high current application i.e. burglar alarms, ignition cutout, transmitters, car spotlights etc. Heavy duty quick connectors required for 60A terminal use PT4717 Pkt. 4.
- Q.C. tab termination

    Specifications

    Relay

    Input
    		 DC
    DC Switching Current (Opening)
    		 60A
    Nominal Voltage
    		 12V
    Device Type
    		 Horn Relay
    DC Contact Voltage
    		 12V
    Contact format
    		 SPDT

    Power Source Details

    DC Voltage
    		 12V
    DC Current Draw
    		 60A

    Packaged Dimensions

    Packaged Length
    		 3cm
    Packaged Width
    		 2.8cm
    Packaged Weight
    		 0.048kg
    Packaged Volume
    		 0.0504l
    Packaged Height
    		 6cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

    SY4074-dataSheetMain.pdf
