Solid State Relay 4-32VDC Input, 240VAC 40A Switching
Solid State Relay 4-32VDC Input, 240VAC 40A Switching

CAT. No. SY4084

Solid State Relay 4-32VDC Input, 240VAC 40A Switching

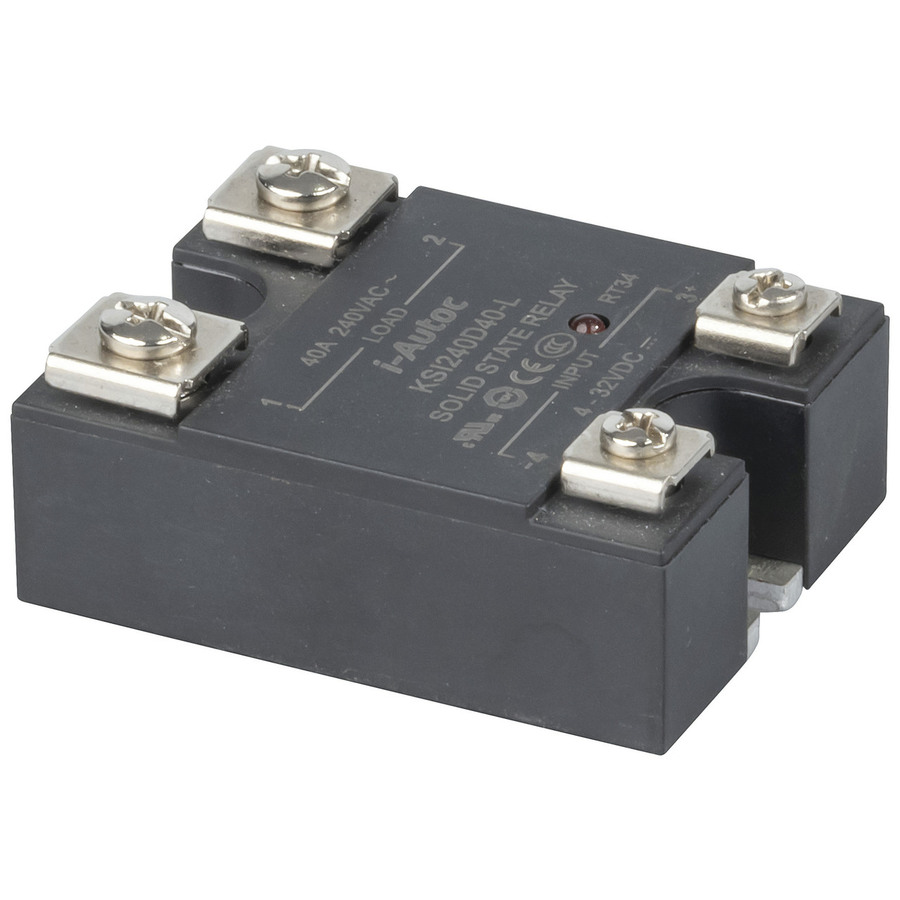

product image thumb

Solid State Relay 4-32VDC Input, 240VAC 40A Switching

$57.95
This panel mount solid state relay offers 4-32VDC input control, with a switched output rated at 240VAC/ 40Amps. Note, please refer to the data sheet ...
Available

Description

This panel mount solid state relay offers 4-32VDC input control, with a switched output rated at 240VAC/ 40Amps. Note, please refer to the data sheet Precautions 1, 2 and 3, and make sure the heat sink size is suitable for high current loads. The solid state relay has a dielectric strength of 4000VAC 50/60Hz.
Features
• 4000V dielectric strength
• Built-In snubber
• TRIAC AC output
• Panel Mount
• DC input control
• RoHS compliant

Note: Suitable for switching AC only

Handy Tip Solid state relays

Solid state relays are particularly useful when only low switching currents are available, such as those presented by CMOS or TTL circuits. Optically isolated for optimum safety, these relays use solid-state components rather than mechanical switches. AC types offer safe and easy switching of 230V mains.

    Specifications

    Relay

    Operation Time
    		 0.5ms
    Input
    		 DC
    AC Switching Current (Opening)
    		 40A
    Release Time
    		 0.5ms
    Device Type
    		 Solid State Relay
    Contact format
    		 SPST
    Dropout Voltage
    		 1V
    AC Contact Voltage
    		 48V-280V

    Power Source Details

    DC Voltage
    		 4V
    Item connection
    		 Screw Terminals
    DC Current Draw
    		 28A

    Product Mounting

    Attachment / Securing Method
    		 Screw Down
    Overall Screw Spacing (H)
    		 47.5mm
    Mount Screw Quantity
    		 2pc
    Mount Screw Size
    		 2mm-4.5mm
    Mounting Method
    		 Chassis

    Packaged Dimensions

    Packaged Length
    		 6.2cm
    Packaged Width
    		 4.9cm
    Packaged Weight
    		 0.11kg
    Packaged Volume
    		 0.088102l
    Packaged Height
    		 2.9cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

      Articles

    SY4084-dataSheetMain.pdf
