Solid State Relay - 12VDC Control AC Load
Solid State Relay - 12VDC Control AC Load

CAT. No. SY4089

Solid State Relay - 12VDC Control AC Load

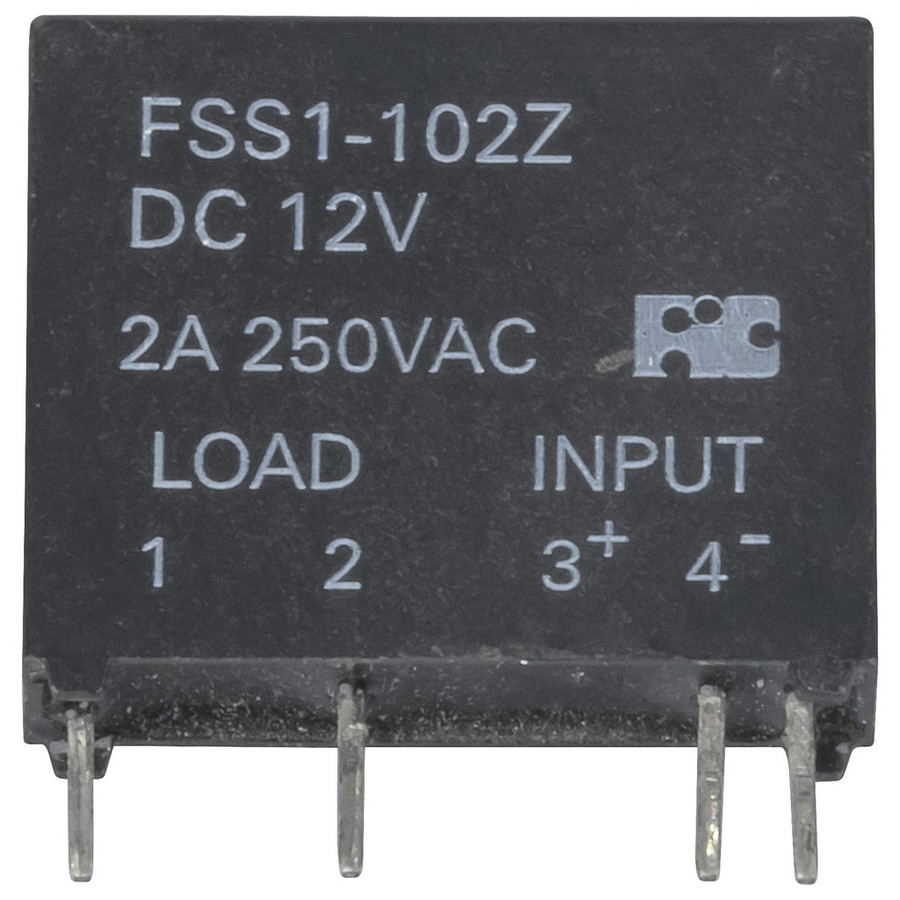

product image thumb

Solid State Relay - 12VDC Control AC Load

$9.95
Reliable solid state relays.SY-4088: 5VDC, 250V 2A contactsSY-4089: 12VDC, 250V 2A contacts...
Available

Description

Ultra slim solid state relay for switching AC loads up to 250V using a DC control voltage.

• Control Voltage: 9.6-14.4VDC
• Maximum Control Current: 15mA
• Load Voltage: 50-250VAC
• Maximum Load Current: 2A
• Dimensions: 24(L)x21(H)x6.5(D)mm


Handy Tip Solid state relays

Solid state relays are particularly useful when only low switching currents are available, such as those presented by CMOS or TTL circuits. Optically isolated for optimum safety, these relays use solid-state components rather than mechanical switches. AC types offer safe and easy switching of 230V mains.

    Specifications

    Relay

    AC Switching Current (Closing)
    		 0A
    Input
    		 DC
    Nominal Voltage
    		 12V
    Device Type
    		 Solid State Relay
    Contact format
    		 SPST
    Pickup Voltage
    		 9.6V
    Dropout Voltage
    		 1V
    AC Contact Voltage
    		 50V-250V

    Power Source Details

    DC Voltage
    		 9.6V-14.4V
    Item connection
    		 PCB Pins
    DC Current Draw
    		 15mA

    Product Mounting

    Mounting Method
    		 PCB

    Product Dimensions

    Length
    		 24mm

    Packaged Dimensions

    Packaged Length
    		 2.5cm
    Packaged Width
    		 0.7cm
    Packaged Weight
    		 0.005kg
    Packaged Volume
    		 0.00438l
    Packaged Height
    		 2.5cm

    Product Availability

    Availability
    		 Stocked item
