CAT. No. SY4090

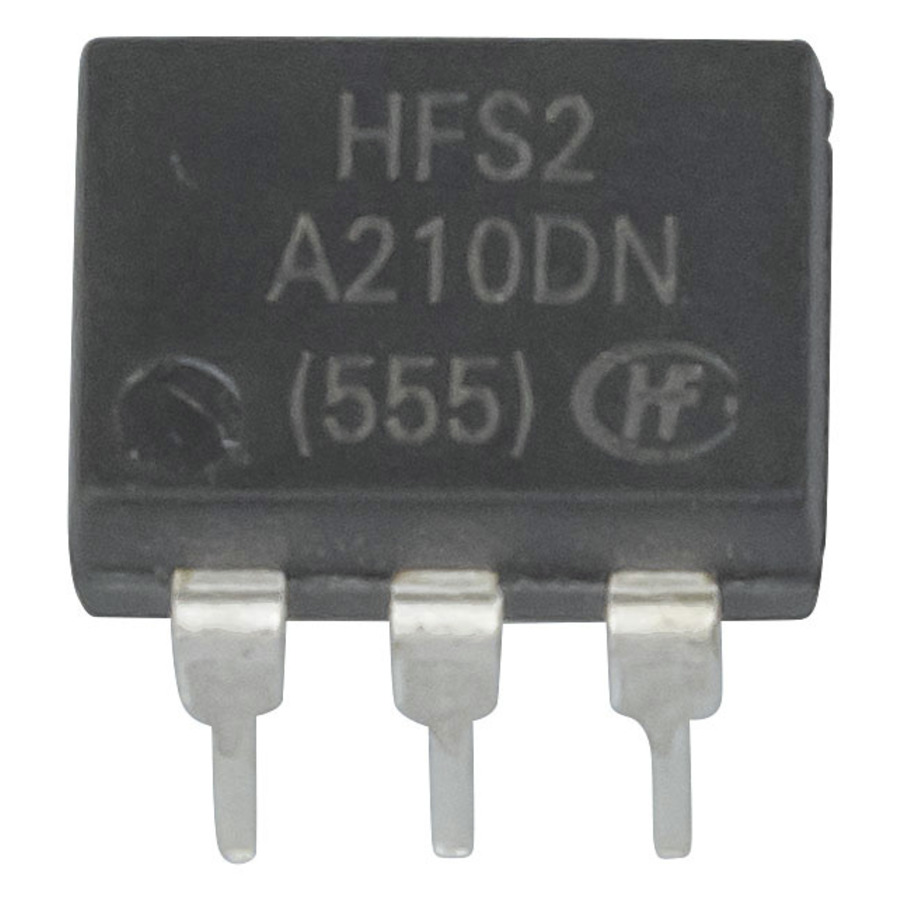

PCB Mount Solid State DIL Relay
product image thumb
product image thumb

PCB Mount Solid State DIL Relay

$9.45
Able to be triggered from low currents, and a super small package. Low on resistance and very low quiescent current.Must release current: 0.4mAMust op...
Available

Description

Able to be triggered from low currents, and a super small package. Low on resistance and very low quiescent current.

Features:
Must Release Current: 0.4mA
Must Operate Current: 5mA
Maximum Load Voltage: 60VDC
Maximum Load Current: 500mA
On-State Resistance: 0.1?
Off-State Leakage: 100nA

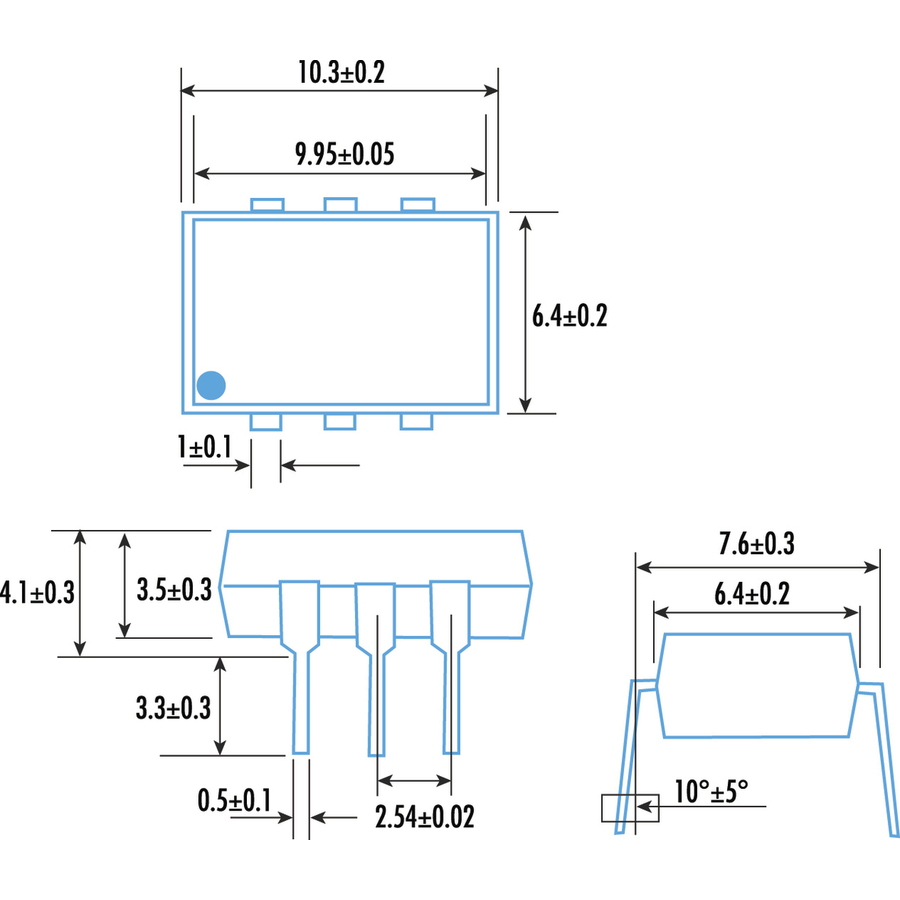

Package: 6 pin DIL

Handy Tip Solid state relays

Solid state relays are particularly useful when only low switching currents are available, such as those presented by CMOS or TTL circuits. Optically isolated for optimum safety, these relays use solid-state components rather than mechanical switches. AC types offer safe and easy switching of 230V mains.

    Specifications

    Relay

    Operation Time
    		 1.5ms
    Input
    		 DC
    Release Time
    		 1ms
    Device Type
    		 Solid State Relay
    DC Switching Current (Closing)
    		 5mA-50mA
    DC Contact Voltage
    		 60V
    DC Contact Current Rating
    		 500mA

    Power Source Details

    DC Voltage
    		 60V

    Product Mounting

    Mounting Method
    		 PCB

    Packaged Dimensions

    Packaged Length
    		 1cm
    Packaged Width
    		 1cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 0.001l
    Packaged Height
    		 1cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

      Articles

    SY4090-dataSheetMain.pdf
