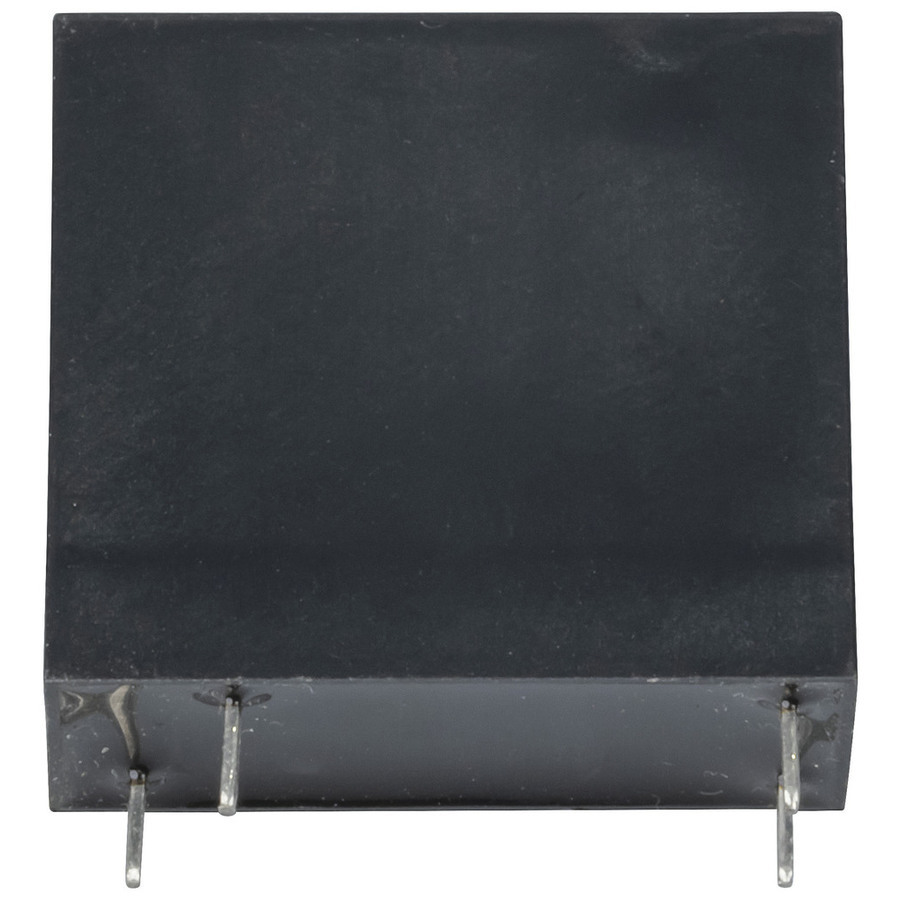

PCB Mount Solid State Relay 5V
PCB Mount Solid State Relay 5V
PCB Mount Solid State Relay 5V

CAT. No. SY4092

PCB Mount Solid State Relay 5V
product image thumb
product image thumb

PCB Mount Solid State Relay 5V

$9.95
Low profile PCB mounting solid state relays with LED input status indication. Suitable for applications such as I/O interfaces and programmable logic ...

Out of Stock

Description

Low profile PCB mounting solid state relays with LED input status indication. Suitable for applications such as I/O interfaces and programmable logic controllers.
Features:
Control voltage range:4 - 6VDC
Max. input current: 20mA
Load voltage: 3 - 52.8VDC
Load current: 0.01 - 2ASY-4092
Control voltage range:4 - 6VDC

Four types available:
SY-4092: PCB Mount Solid State Relay 5V
SY-4093: PCB Mount Solid State Relay 12V
SY-4096: PCB Mount Solid State Relay 12V Zero Crossing Turn On
SY-4097: PCB Mount Solid State Relay 12V Random Turn On

Handy Tip Solid state relays

Solid state relays are particularly useful when only low switching currents are available, such as those presented by CMOS or TTL circuits. Optically isolated for optimum safety, these relays use solid-state components rather than mechanical switches. AC types offer safe and easy switching of 230V mains.

    Specifications

    Relay

    Input
    		 DC
    DC Switching Current (Opening)
    		 2A
    Nominal Voltage
    		 5V
    Device Type
    		 Solid State Relay
    DC Contact Voltage
    		 4V-6V
    Contact format
    		 SPDT

    Power Source Details

    DC Voltage
    		 4V
    DC Current Draw
    		 2A

    Product Mounting

    Mounting Method
    		 PCB

    Packaged Dimensions

    Packaged Length
    		 3cm
    Packaged Width
    		 3.1cm
    Packaged Weight
    		 0.018kg
    Packaged Volume
    		 0.01395l
    Packaged Height
    		 1.5cm

    Product Availability

    Availability
    		 Stocked item
