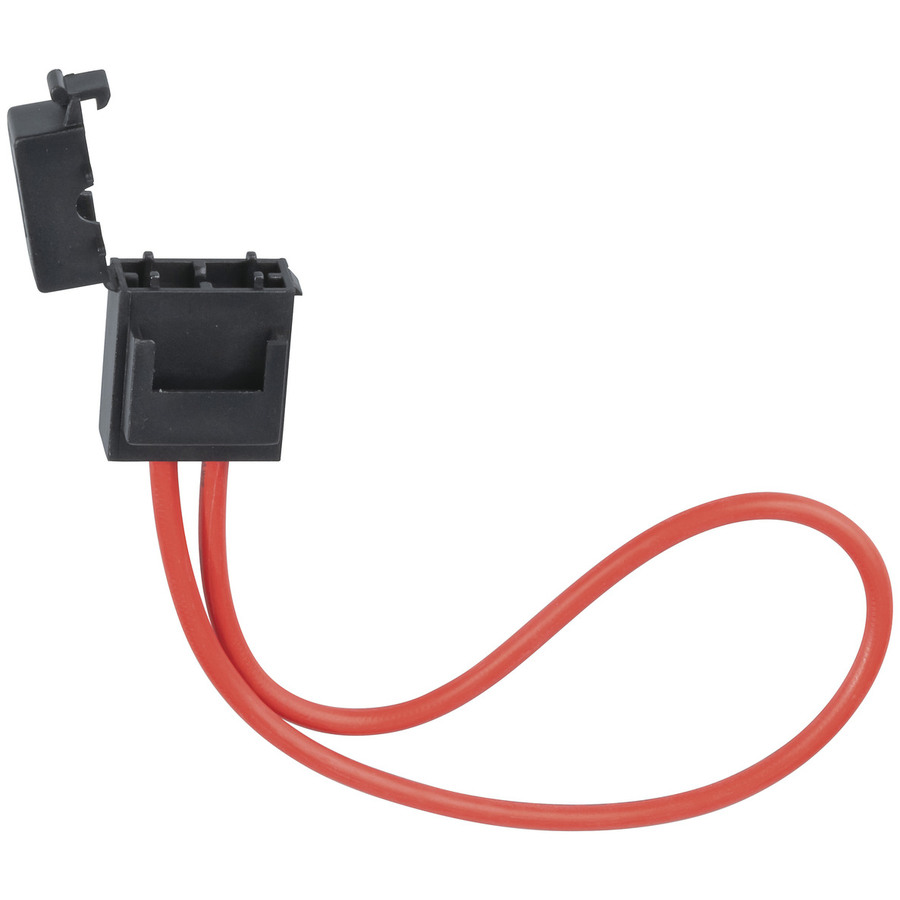

Stackable 30A Blade Fuse Holder
Stackable 30A Blade Fuse Holder

CAT. No. SZ2045

Stackable 30A Blade Fuse Holder
product image thumb

Stackable 30A Blade Fuse Holder

$6.5
A standard duty low voltage in-line fuse housing to Suit standard blade style fuses rated up to 30 amps. Can be coupled together to create fuse banks.
Available

Description

Stackable blade fuse holder with cover. Easy install, just cut loop and connect to your circuit wiring.

Features:
• Low voltage DC only
• Couple together to create fuse banks

    Specifications

    Product Dimensions

    Length
    		 41mm
    Height
    		 24mm
    Width
    		 10mm

    Packaged Dimensions

    Packaged Length
    		 17cm
    Packaged Width
    		 6.5cm
    Packaged Weight
    		 0.03kg
    Packaged Volume
    		 0.221l
    Packaged Height
    		 2cm

    Fuse

    Fuse Type
    		 blade

    DC Voltage Rating

    DC Voltage
    		 32V

    DC Current Rating

    DC current rating
    		 30A

    Fuse Holder

    Mounting
    		 Line
    Connection
    		 Pre-wired fly leads
    Number of Fuse Slots
    		 1pc
